Hyundai
>>
2008
>>
Azera V6-3.3L
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Radio, Stereo, and Compact Disc
>>
Remote Control
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

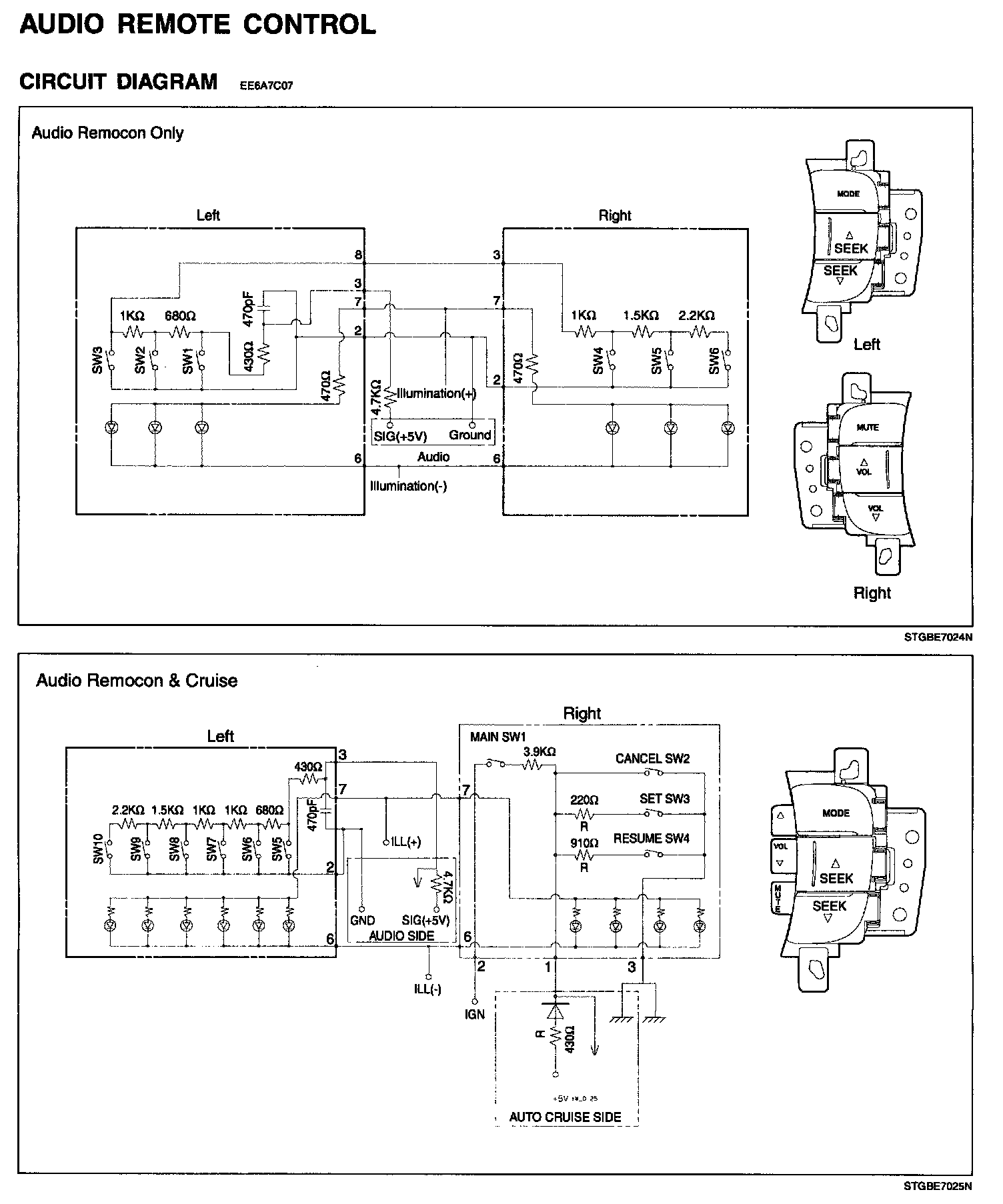

Audio Remote Control - Circuit Diagram:
