Clutch Pedal Assembly: Service and Repair

CLUTCH PEDAL

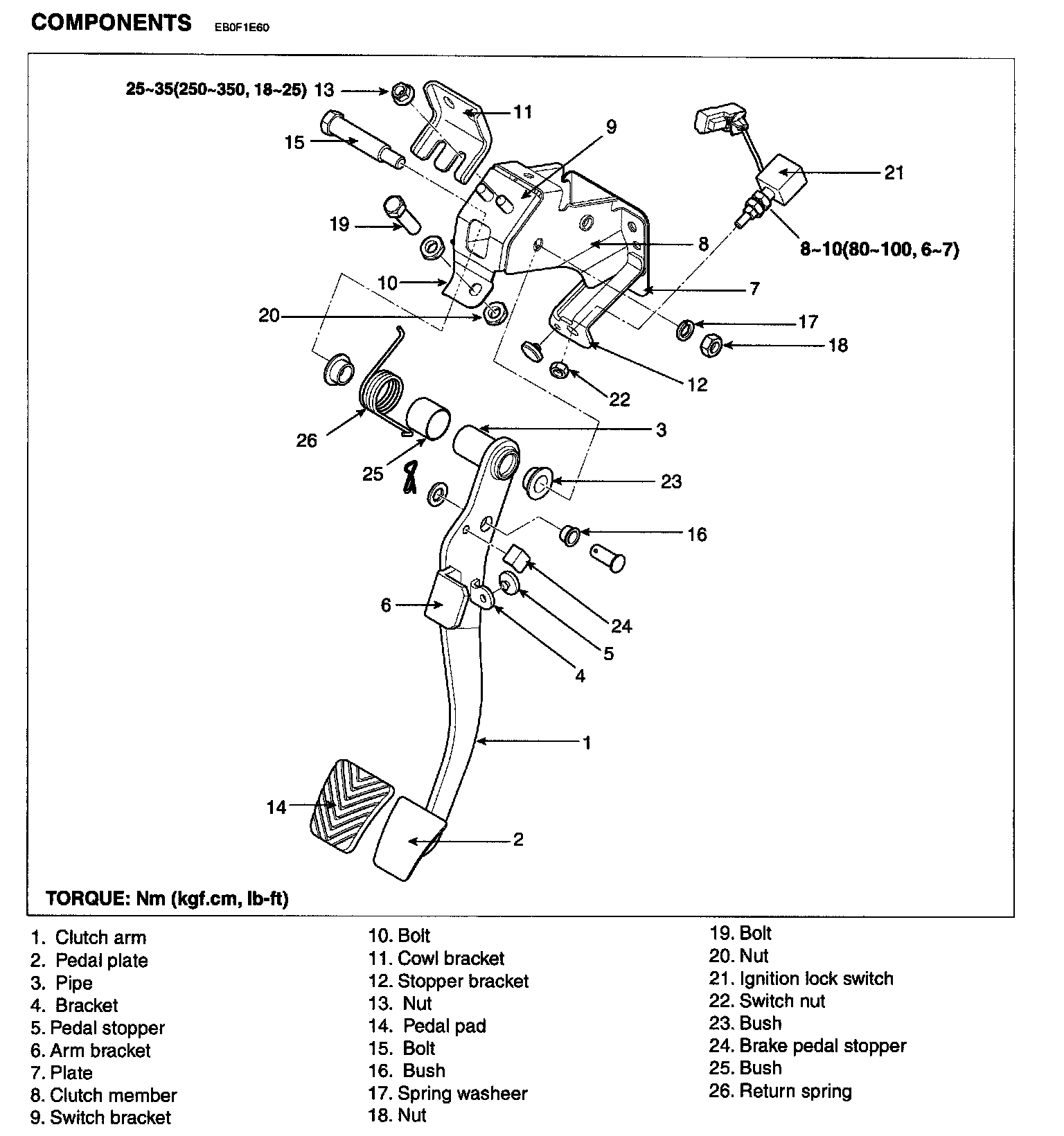

COMPONENTS:

REMOVAL

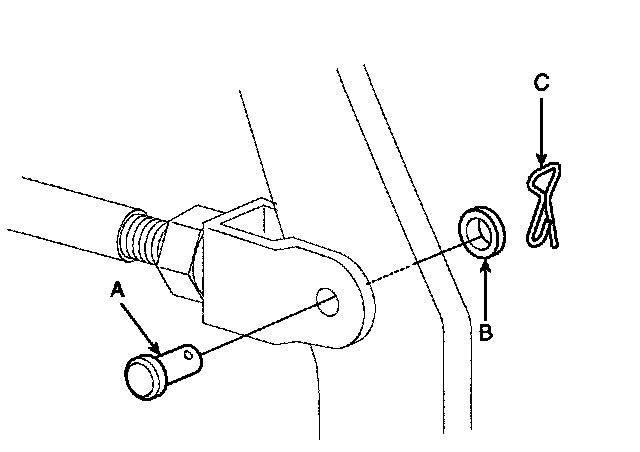

1. Remove the clevis pin (A), washer (B), and snap pin (C).

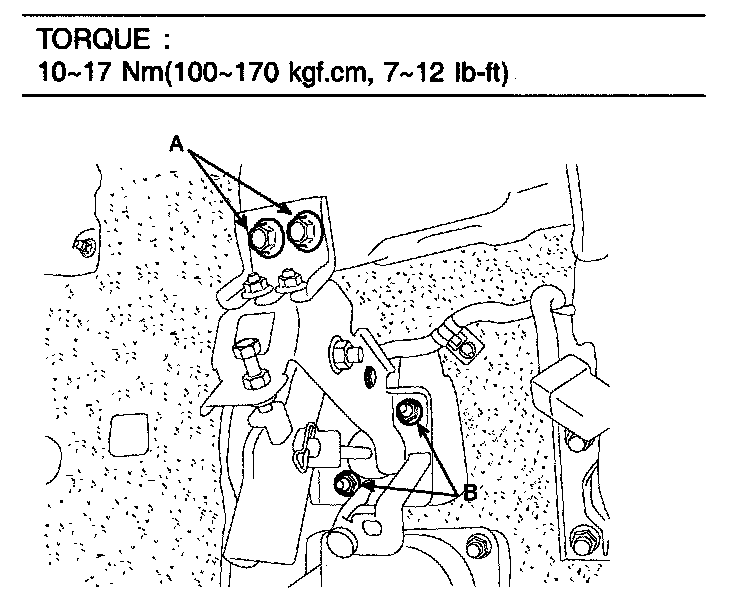

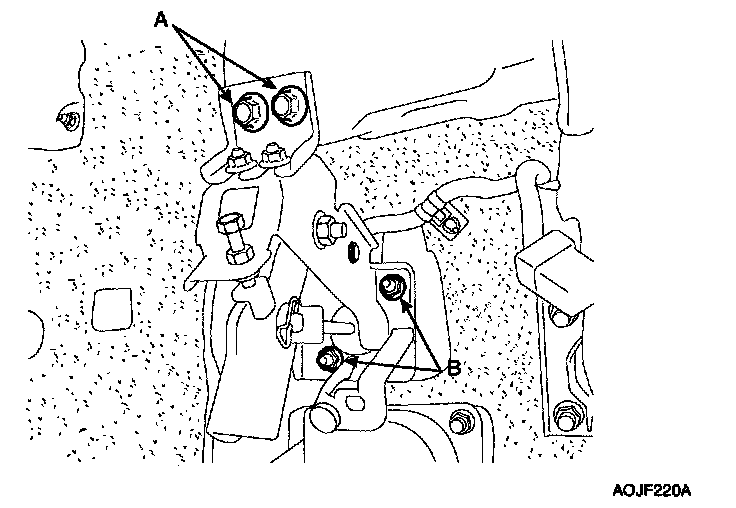

2. Remove the clutch pedal mounting bolts (A) and nuts (B).





INSPECTION
1. Check the pedal shaft and bushing for wear.
2. Check the clutch pedal for bending or torsion.
3. Check the return spring for damage or deterioration.
4. Check the pedal pad for damage or wear.

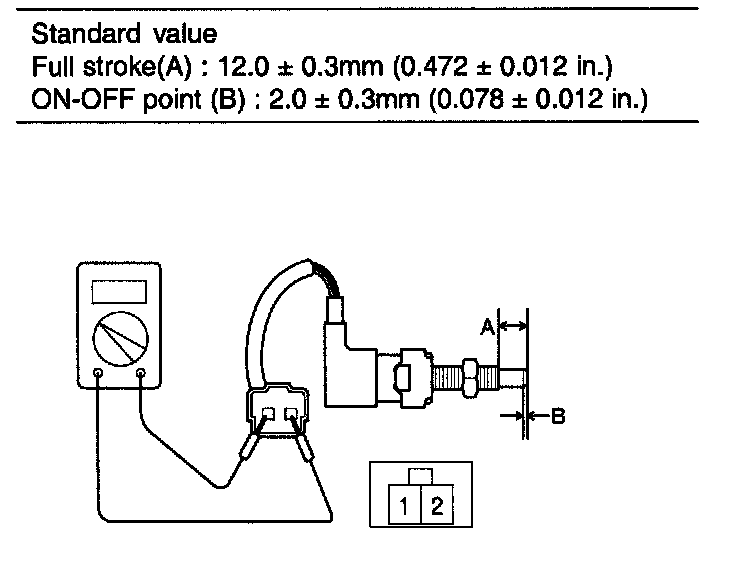

IGNITION LOCK SWITCH INSPECTION

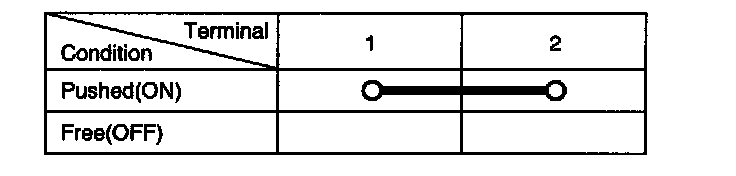

Remove the ignition lock switch and check for continuity between the terminals. If the continuity is not as specified, replace the switch.








INSTALLATION

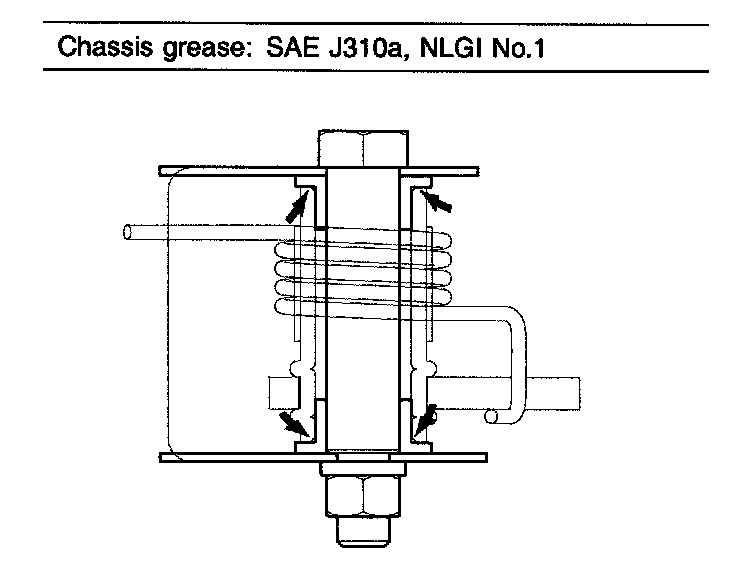

1. Apply the specified grease to the clutch pedal and bushings.





2. Install the clutch pedal mounting bolts(A) and nuts(B).

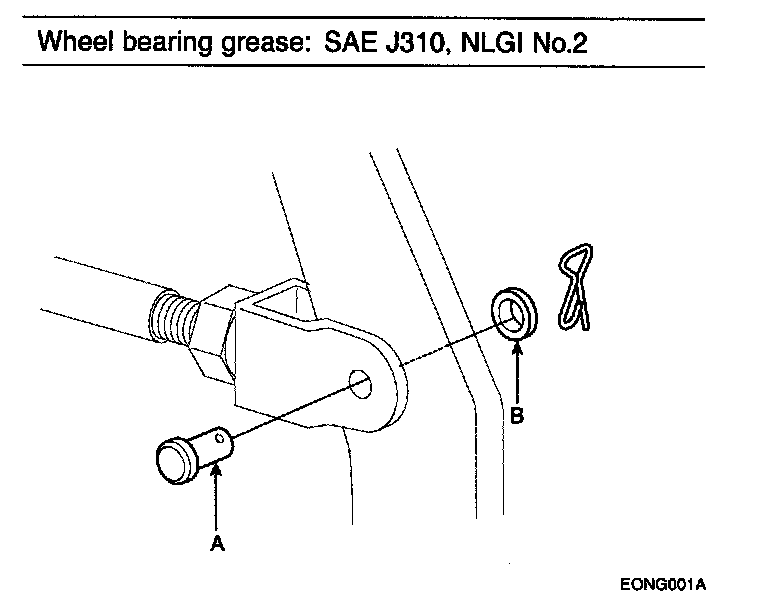

3. Apply the specified grease to the clevis pin(A) and washer(B).





4. Install the push rod to the clutch pedal.

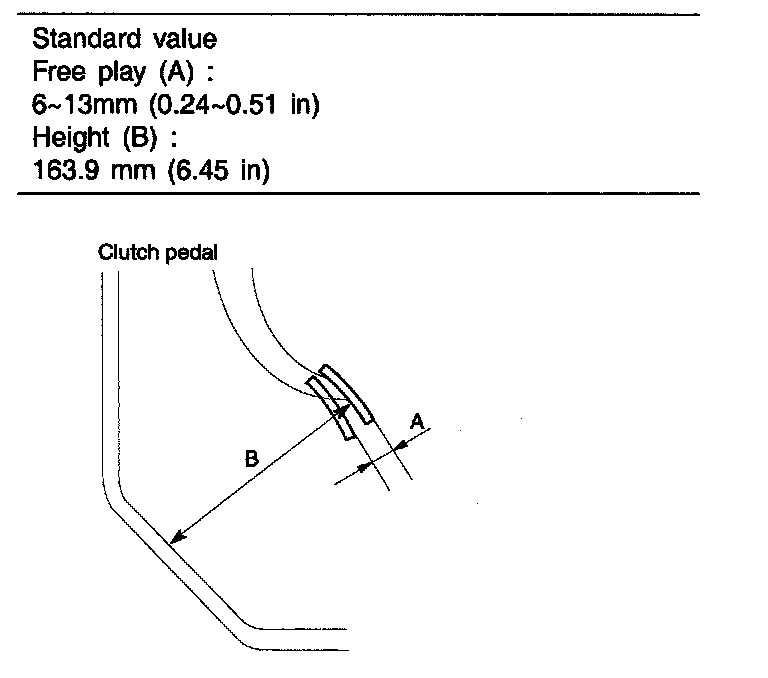

5. Adjust the clutch pedal within the standard value, then secure by tightening the lock nut.
