Removal

FRONT STABILIZER BAR

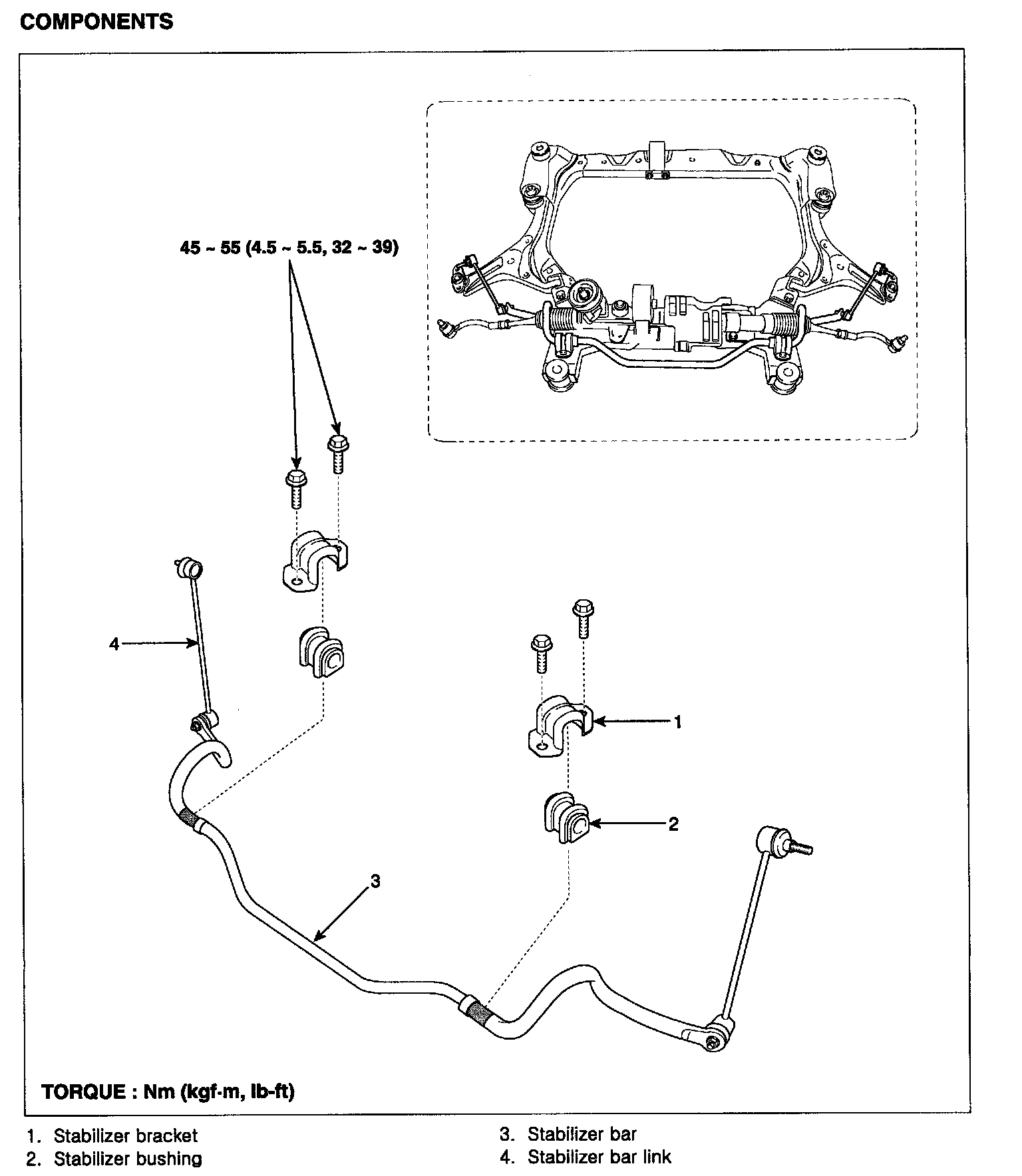

COMPONENTS





REMOVAL
1. Loosen the wheel nuts slightly.
Raise the front of the vehicle, and make sure it is securely supported.

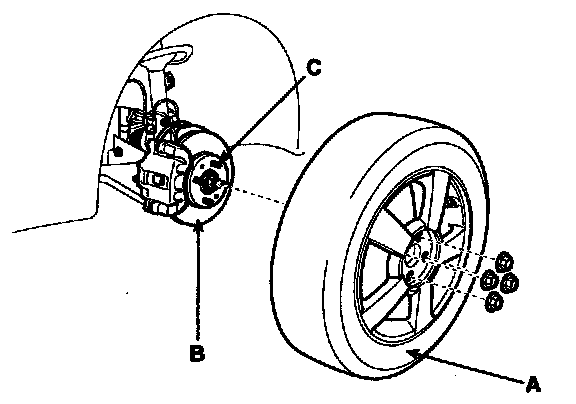

2. Remove the front wheel and tire (A) from front hub (B).





CAUTION
Be careful not to damage the hub bolts (C) then remove the front wheel and tire (A).

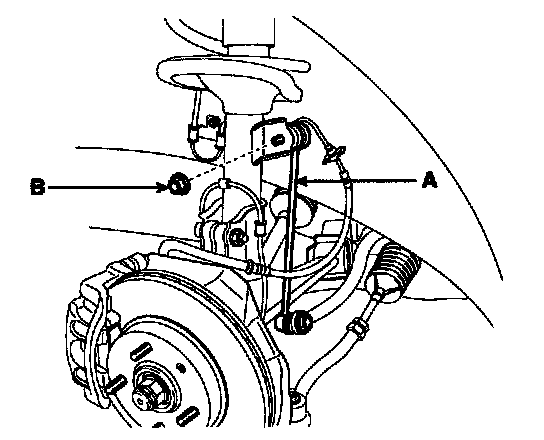

3. Remove the stabilizer bar link (B) from the strut assembly (A).

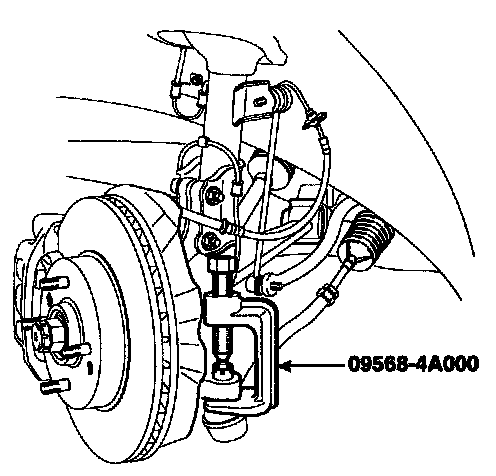

4. Remove the tie rod end (A) from the knuckle by using the special tool (09568-4A000).





5. Remove the two bolts (A) for lower arm ball joint.





6. Drain power steering oil. (Power steering only)

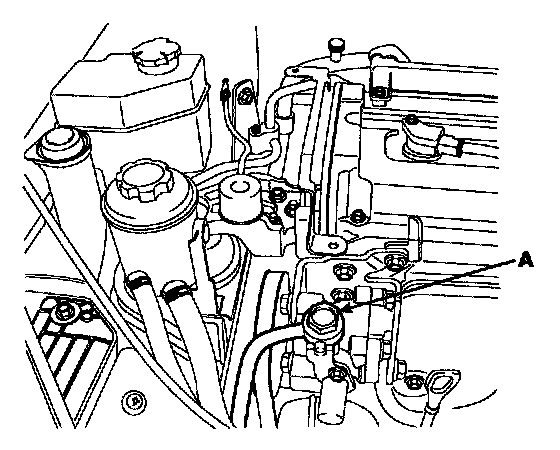

7. Remove the pressure pipe mounting bolt (A). (Power steering only)

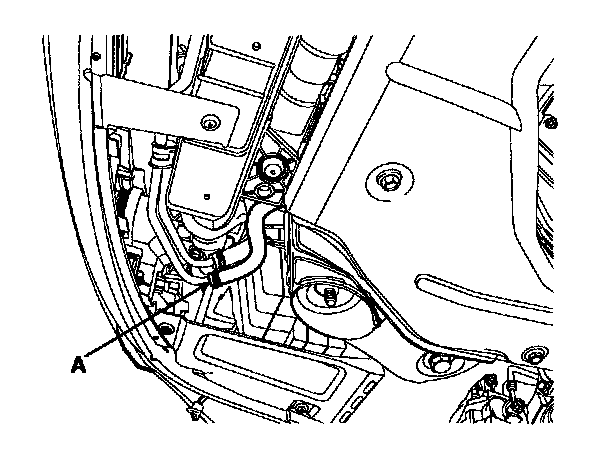

8. Disconnect between the return hose and tube (A). (Power steering only)

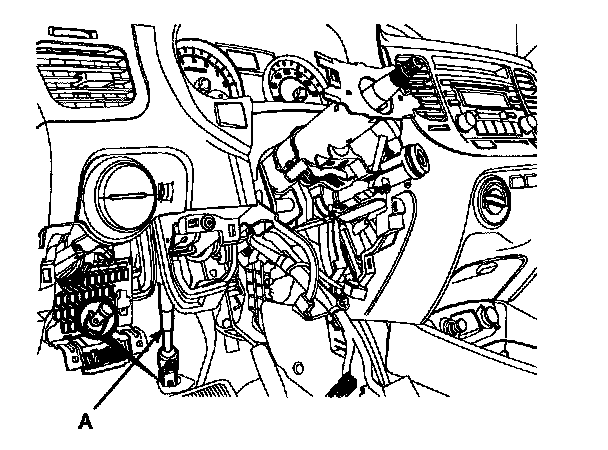

9. Remove the connecting bolt (A) between the steering universal joint assembly and the pinion assembly.

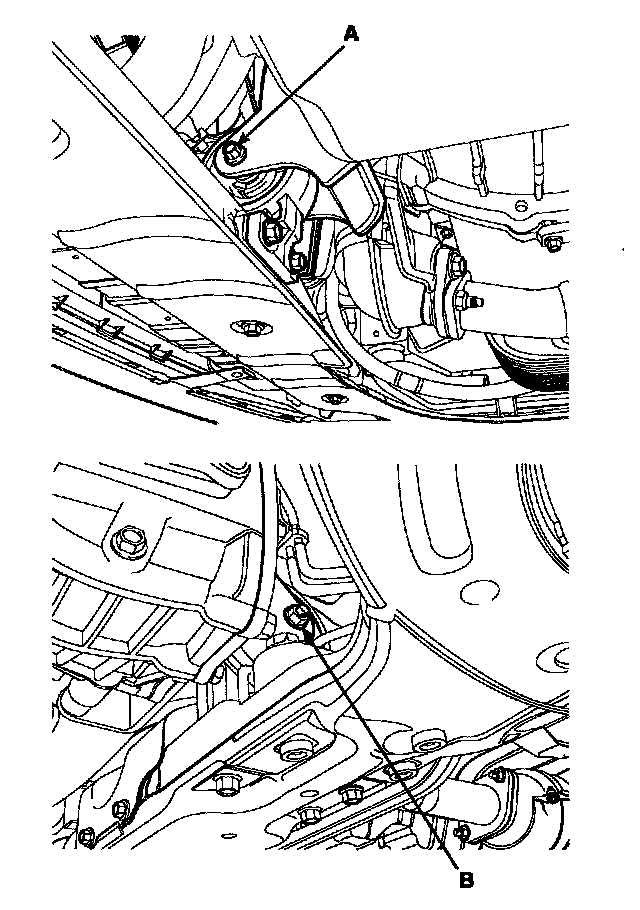

10. Remove two engine line mounting bolts (A, B) and six subframe mounting bolts in order to remove the subframe.

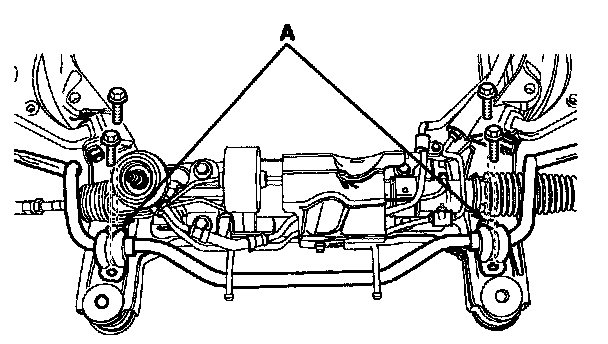

11. Remove both two stabilizer brackets (A) and two bushes respectively.





12. Remove the stabilizer bar.

CAUTION
Be careful not to do damage to pressure tubes.
