Removal and Replacement

POWER STEERING OIL PUMP

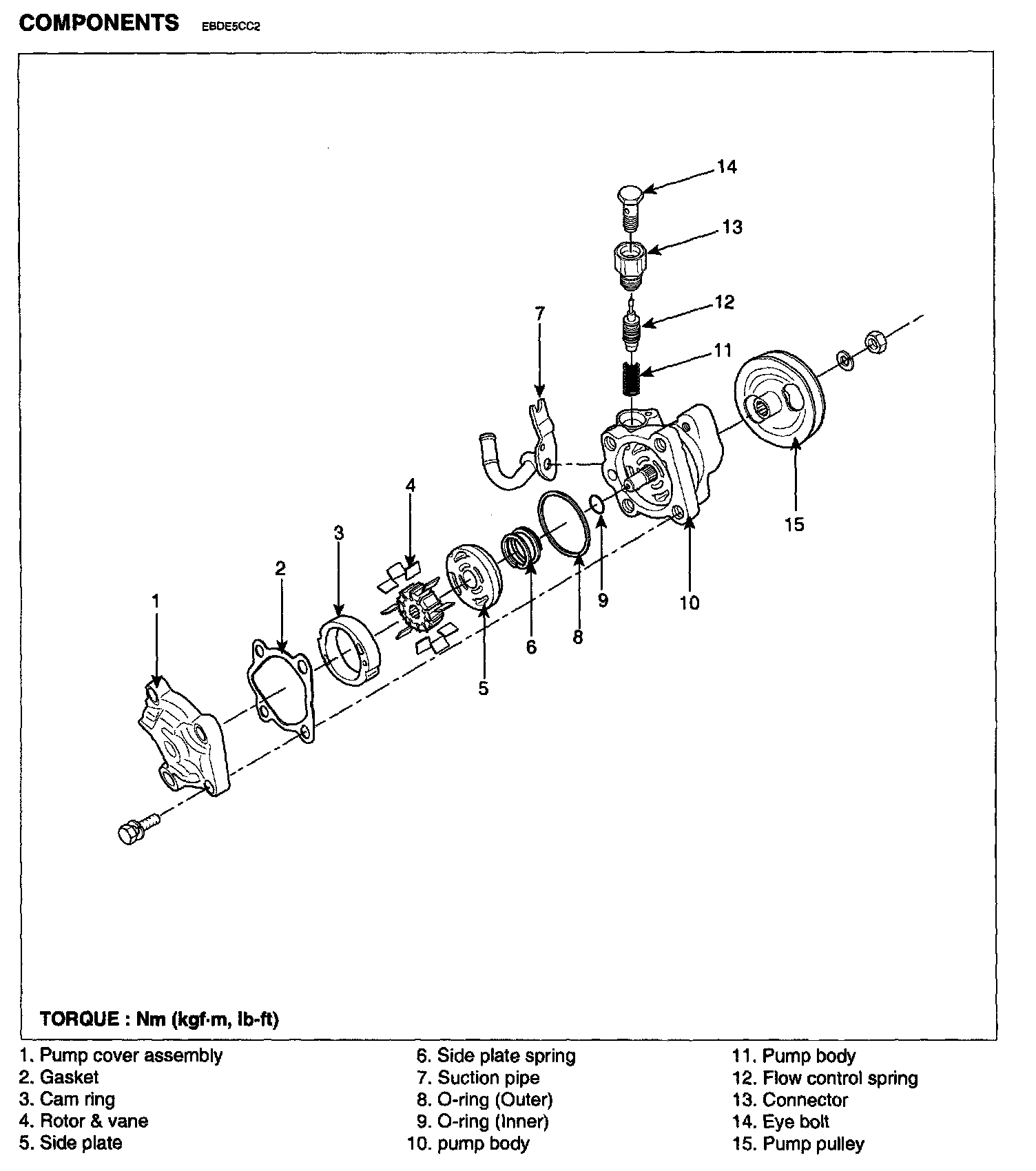

COMPONENTS:

REMOVAL

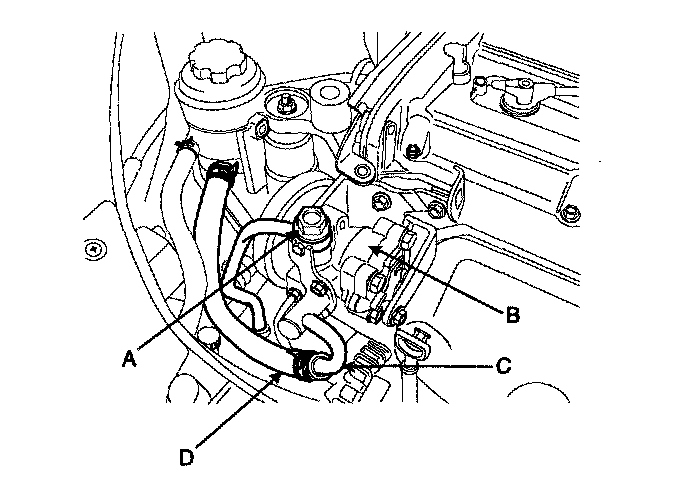

1. Disconnect the pressure tube (A) from the oil pump (B) by loosening the eye bolt.
Tightening torque Nm (kgf-m, lb-ft): 55 - 65 (5.5 - 6.5, 40 - 47)
2. Disconnect the suction hose (C) from the suction pipe (D).

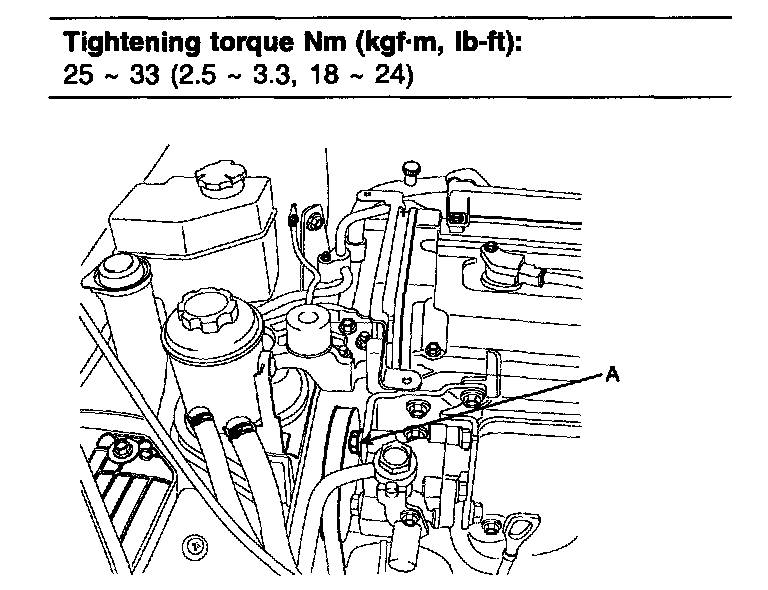

3. Loosen the tension adjusting bolt (A), and then remove the oil pump drive belt.

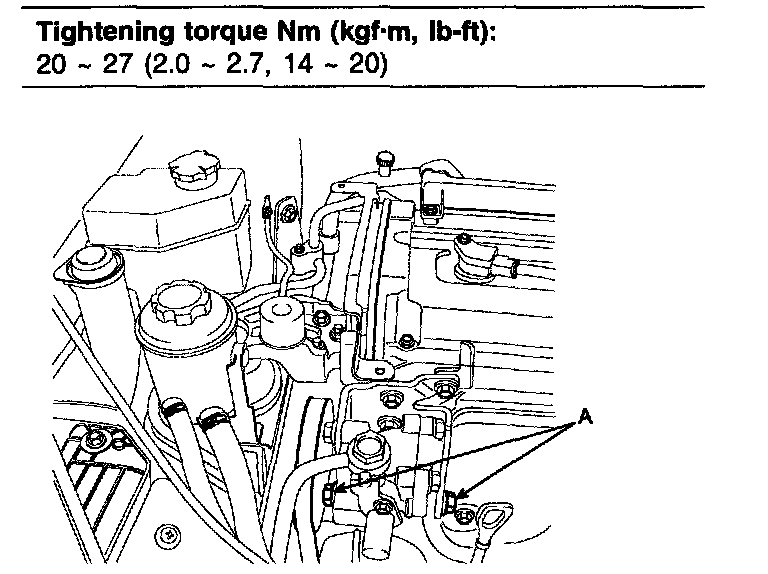

4. Loosen the power steering pump mounting bolt and nut (A), and then remove the power steering pump assembly from the pump bracket.





NOTE: Be careful not to spill fluid from the power steering oil pump.

INSTALLATION
1. Installation is the reverse of removal.

CAUTION: The pressure tube does not twist and come in contact with other components.

2. Adjust the drive belt tension.
3. Add power steering fluid
4. Bleed the power steering system.
5. Check the oil pump pressure.
