Traction Control Module
Traction Control Module

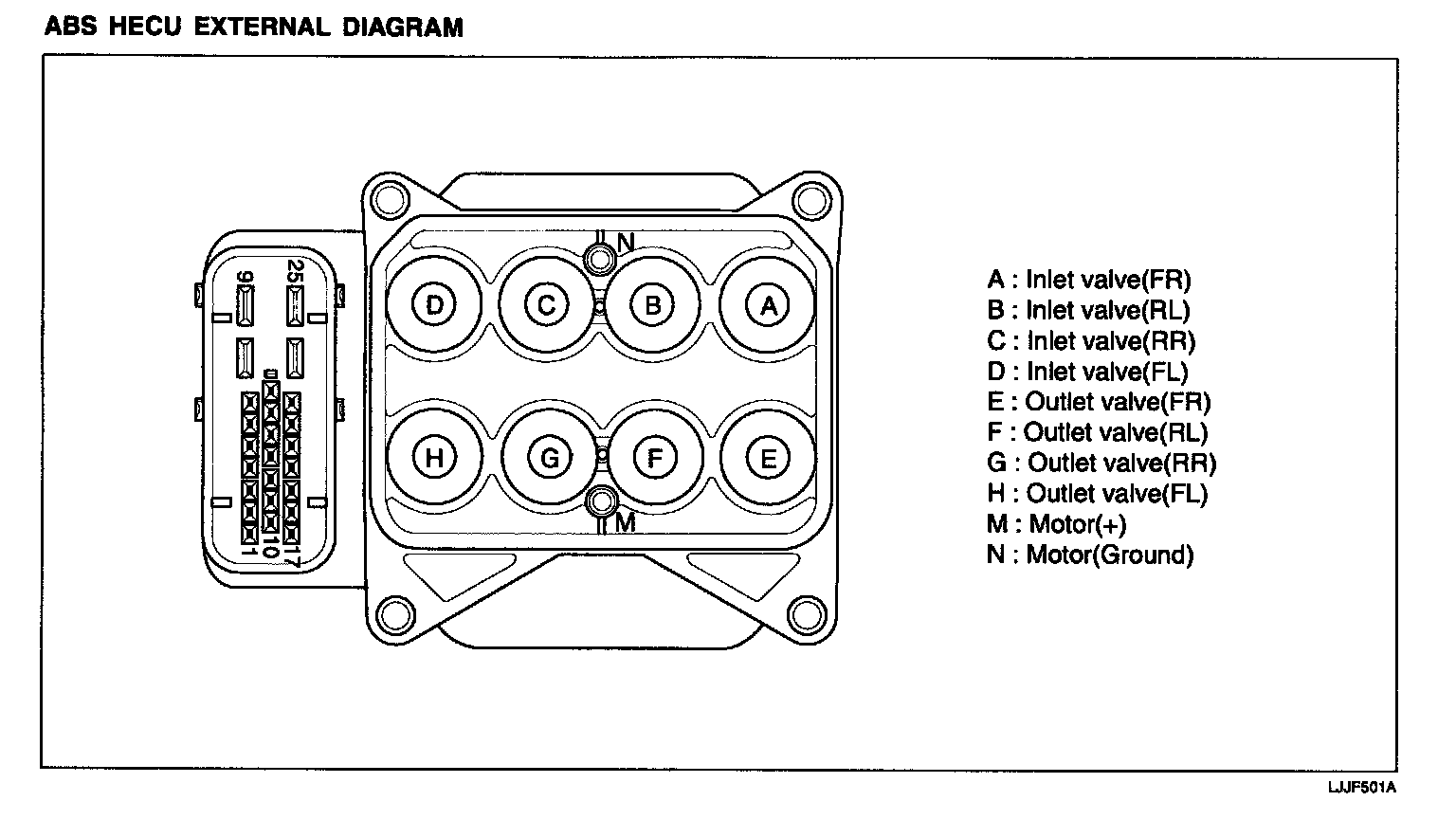

ABS HECU EXTERNAL DIAGRAM
ABS HECU External Diagram:
