Body Control Systems
Body Control Systems

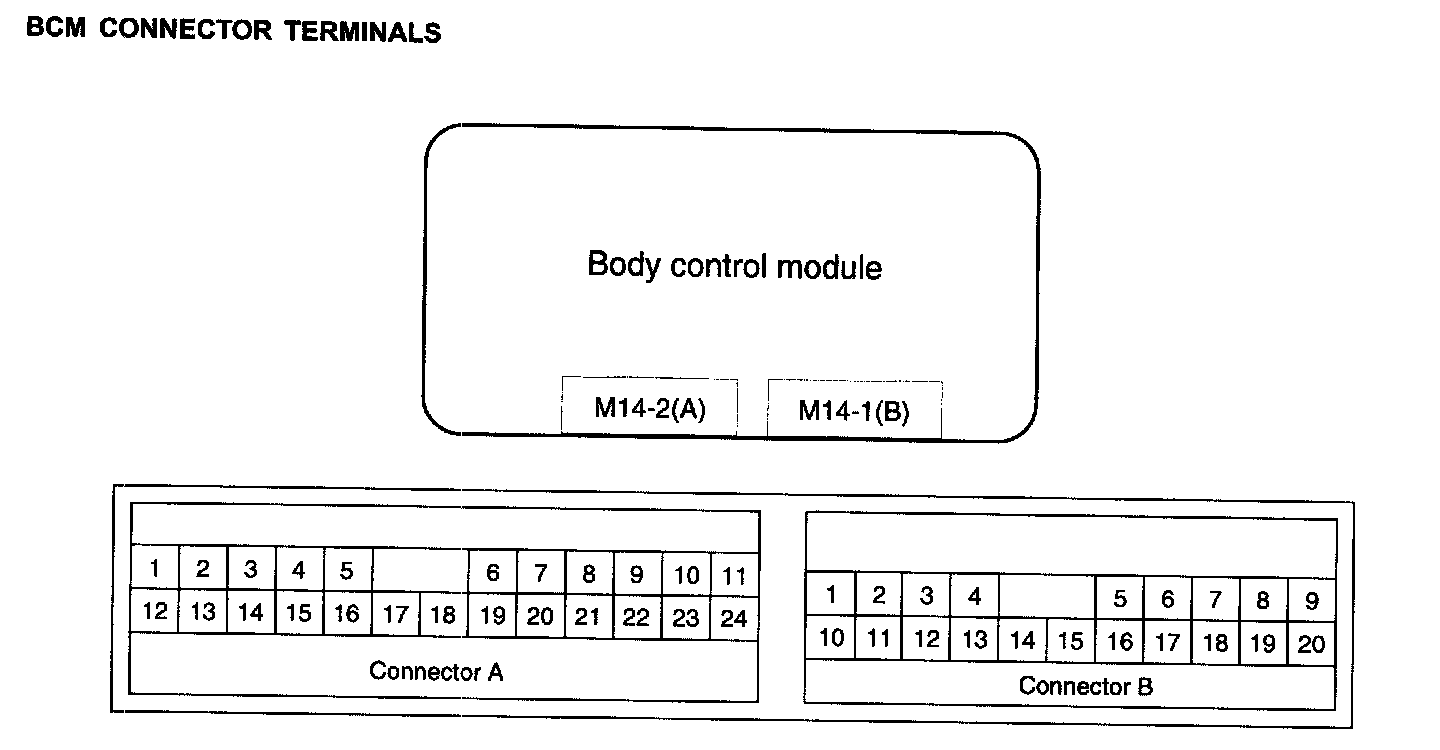

Circuit Diagram - BCM Connector Terminals:

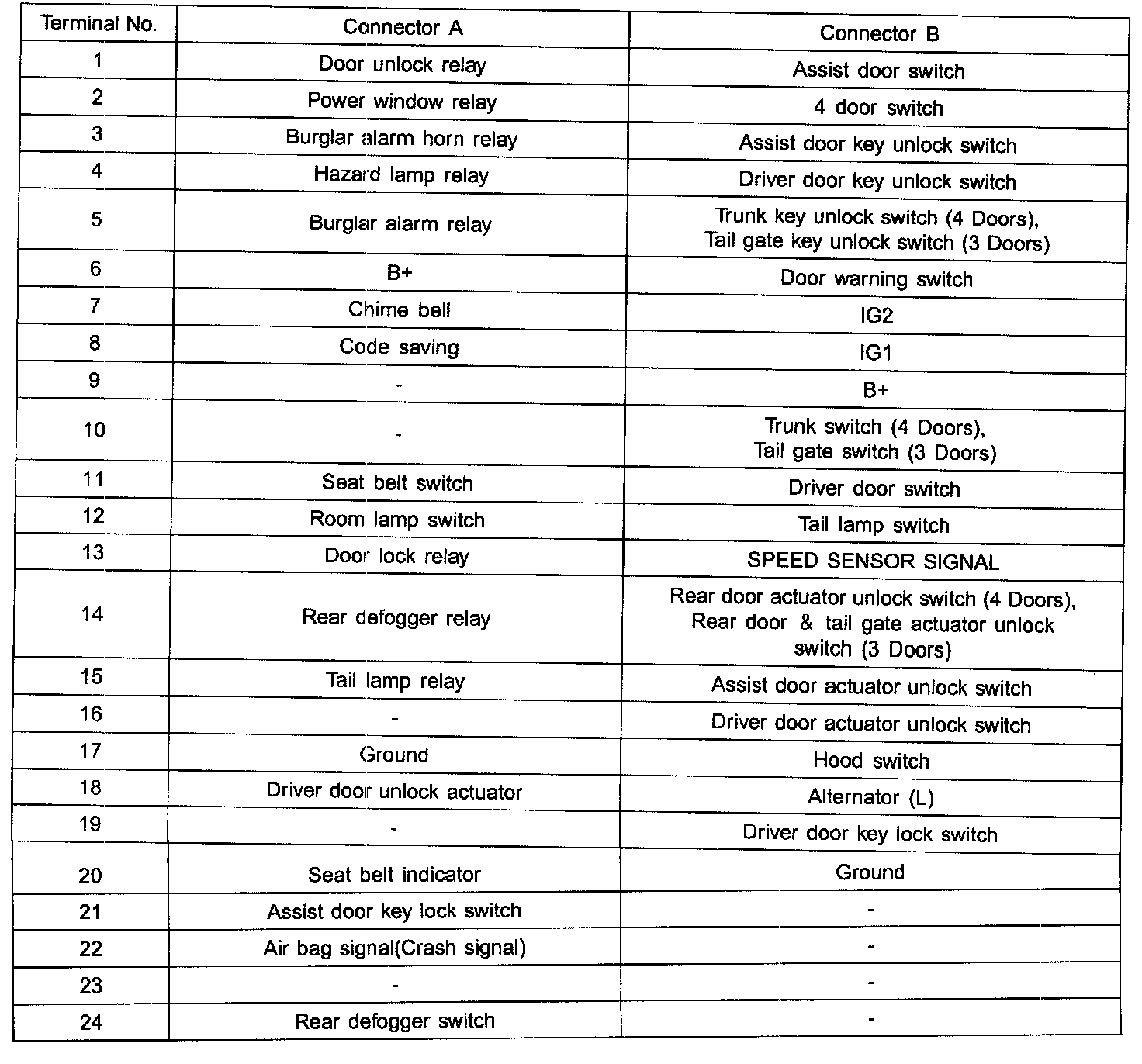

Circuit Diagram - BCM Connector Terminals:
