Transmission Disassembly

MANUAL TRANSAXLE

DISASSEMBLY
1. After removing the boot, disassemble the concentric slave cylinder assembly.

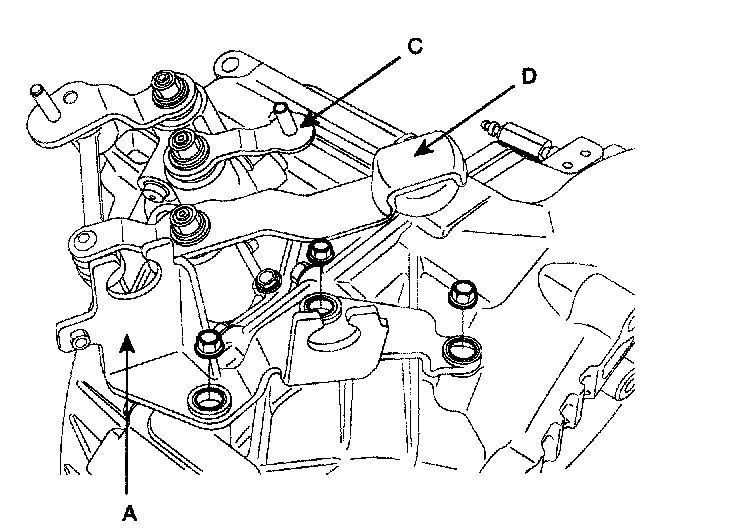

2. Remove the shift control cable bracket assembly (A) and the vehicle speed sensor (B).
3. Remove the select lever (C) and shift link assembly (D).
4. Remove the back up lamp switch (A).

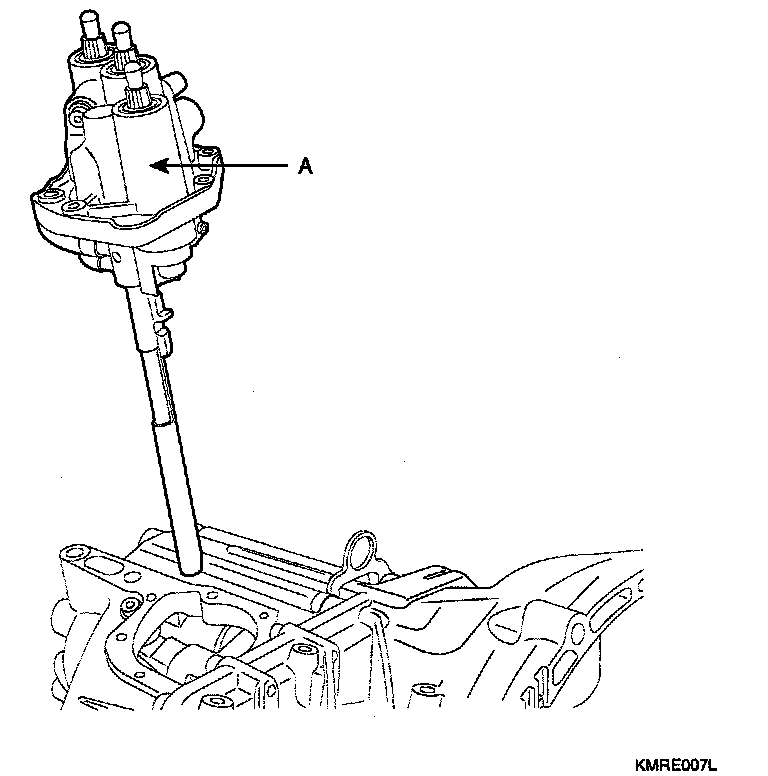

5. Remove the control shaft complete (A).





6. Disconnect the transaxle hanger.
7. Remove the oil filler plug and the idler shaft bolt.

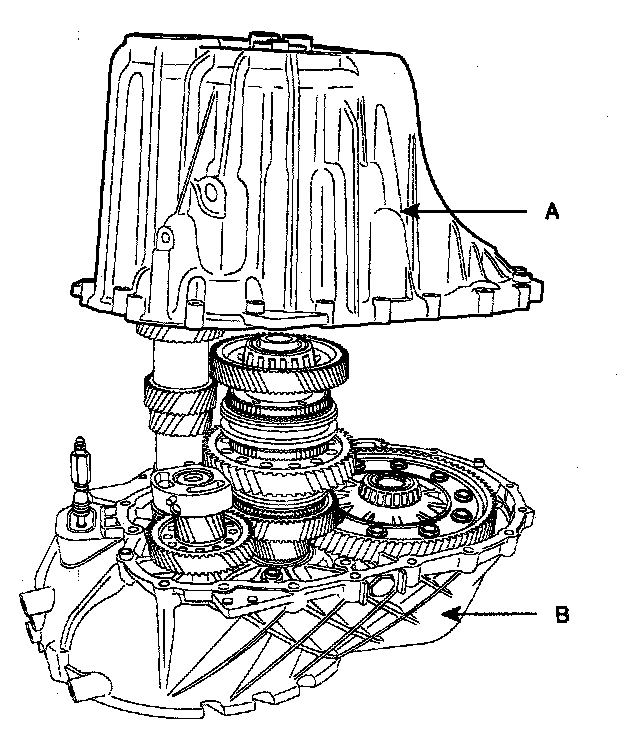

8. Disconnect the clutch housing (B) from the transaxle case (A).





9. Remove the spring pins from the shift rail (3rd/4th & Reverse).





10. Remove the shift control shaft folks (4EA) and shafts (2EA) and rail support bracket.
11. Remove the parts in the order as shown. 2nd output shaft - input shaft - 1 1st output shaft differential assembly.
12. Remove the reverse idler gear assembly.
13. Remove the magnetic plug and the concentric slave cylinder.
14. Remove oil guides, bearing outer races, dowel pins and spacers from the clutch housing.
15. Remove oil seals and guides from the clutch housing.
