Reverse Idler Gear: Service and Repair

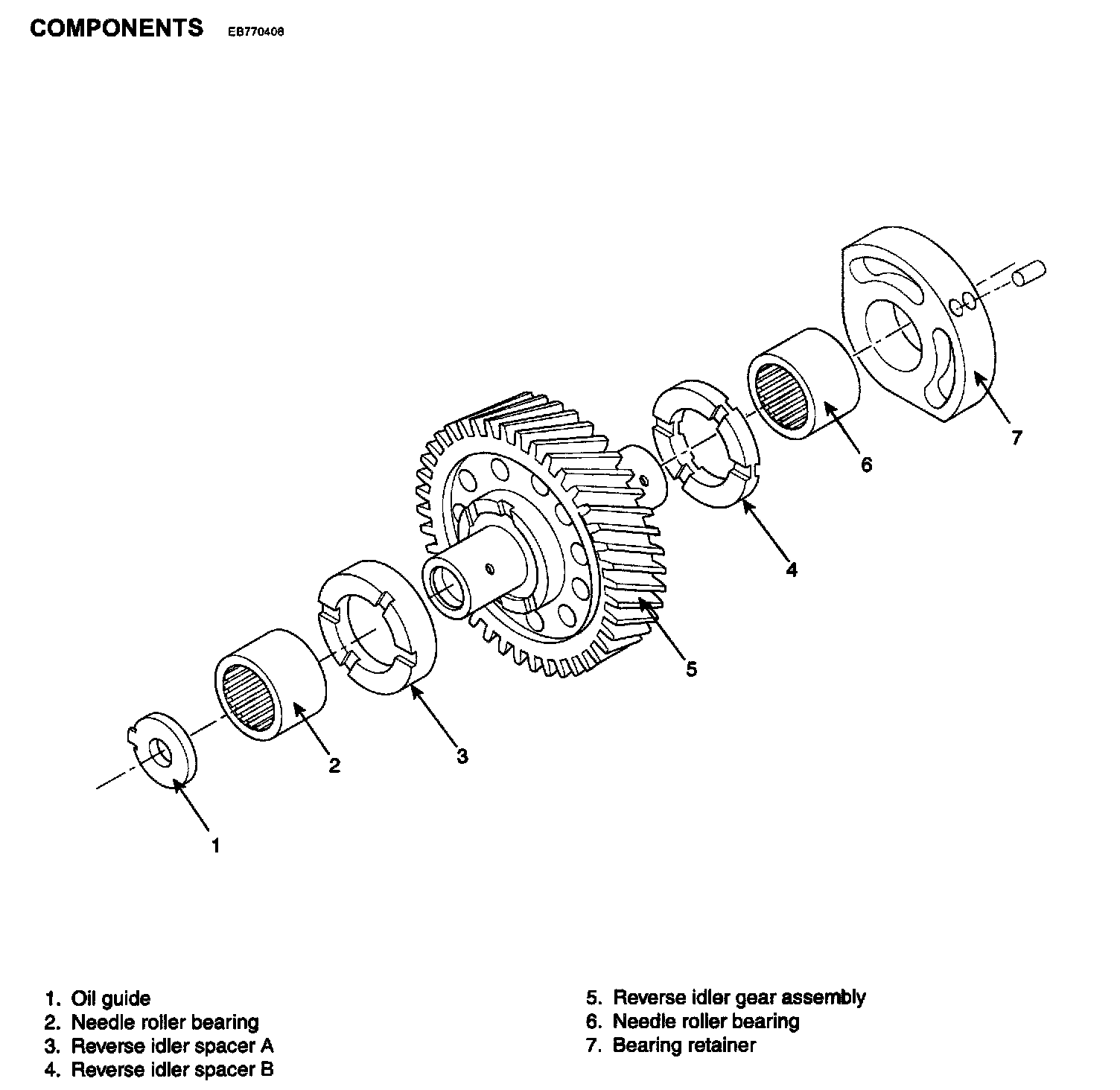

REVERSE IDLER GEARCOMPONENTS:
REASSEMBLY
1. Insert the reverse idler spacers in the reverse idler gear assembly.
2. Insert the needle roller bearing into the bearing retainer by tapping.
3. Install the rest of the parts manually.
