Drivetrain - Right Side Driveshaft Service Precaution

Group: CHASSIS

Number: 05-50-007

Date: AUGUST, 2005

Model: 2006 SONATA

Subject:

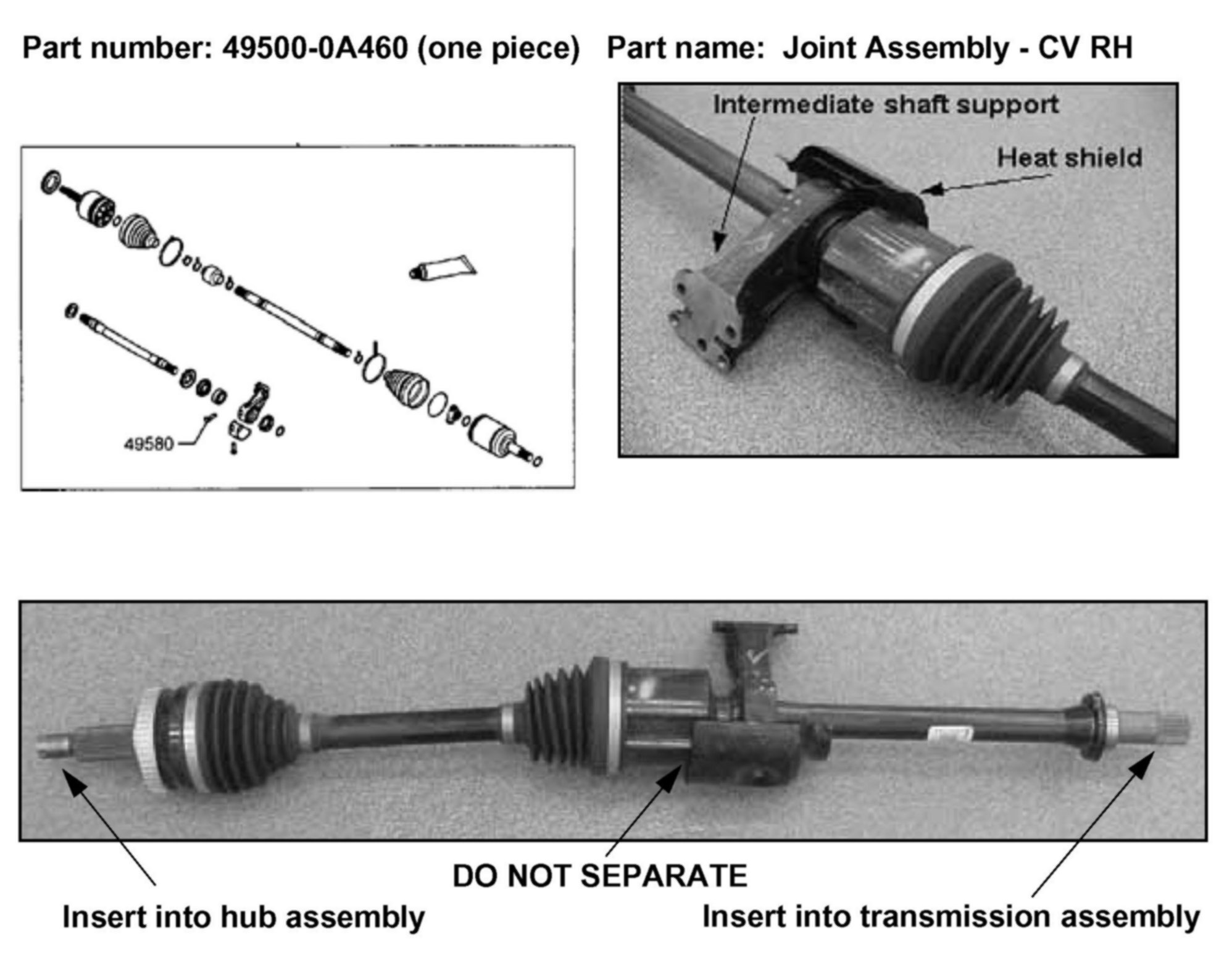

RIGHT DRIVE SHAFT ASSEMBLY

DESCRIPTION:





The 2006 Model Year Sonata contains a right hand drive shaft assembly that cannot be separated at the intermediate shaft and bearing support like previous models.

WARNING:
Do not attempt to separate the intermediate shaft from the drive shaft. Attempting to do this could result in damage to the drive shaft assembly.
