Removal

FRONT STABILIZER BAR

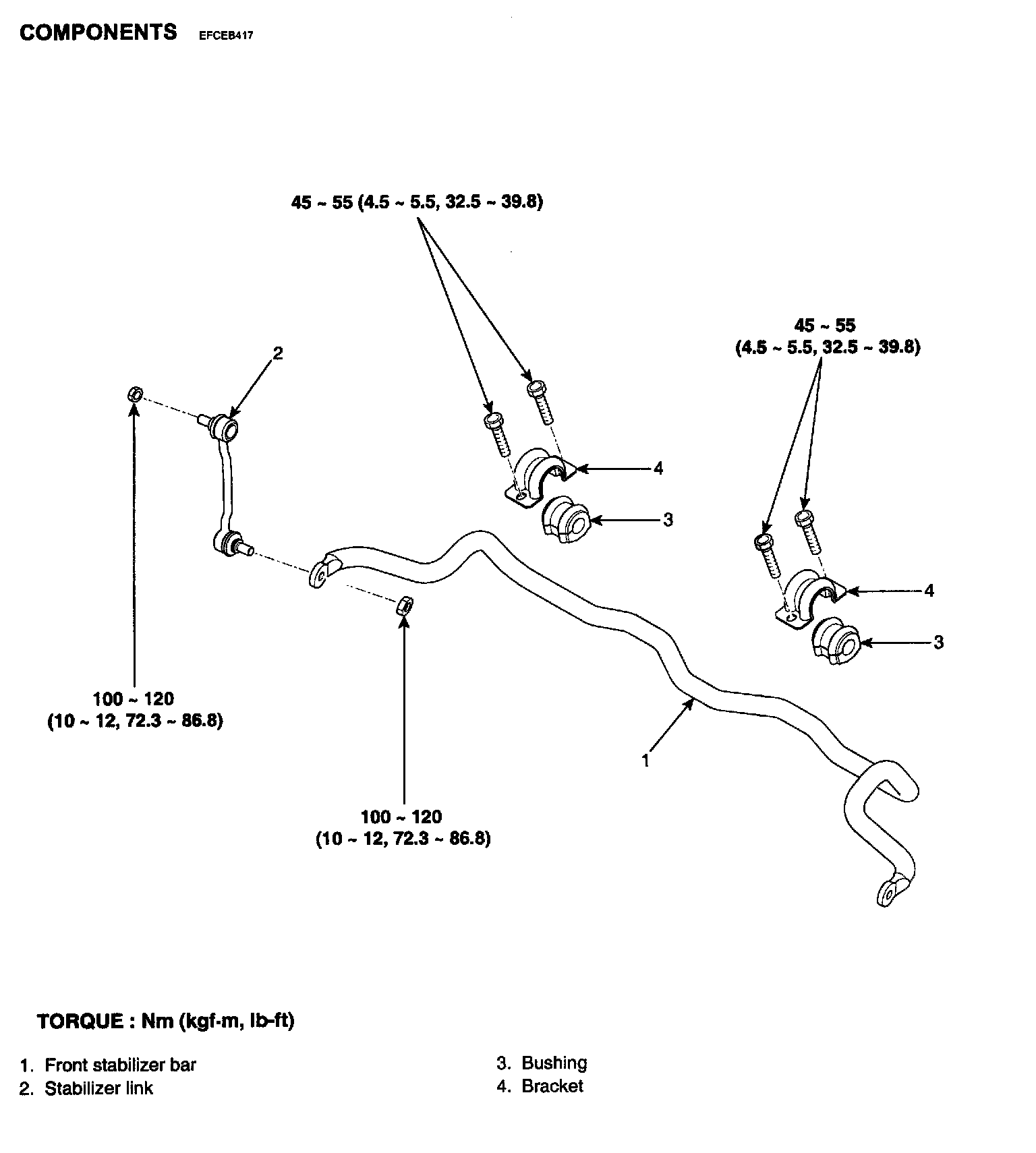

COMPONENTS:

REMOVAL
1. Loosen the wheel nuts slightly. Raise the front of the vehicle, and make sure it is securely supported.
2. Remove the front wheel and tire from front hub.

CAUTION: Be careful not to damage the hub bolts when removing the front wheel and tire.

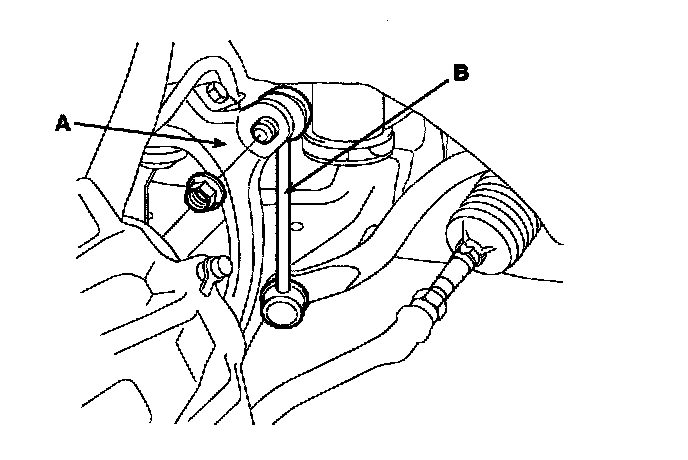

3. Remove the stabilizer link (B) from the fork (A).





4. Remove the two mounting bolts of the rear side of the sub frame, supporting the sub frame with a jack.

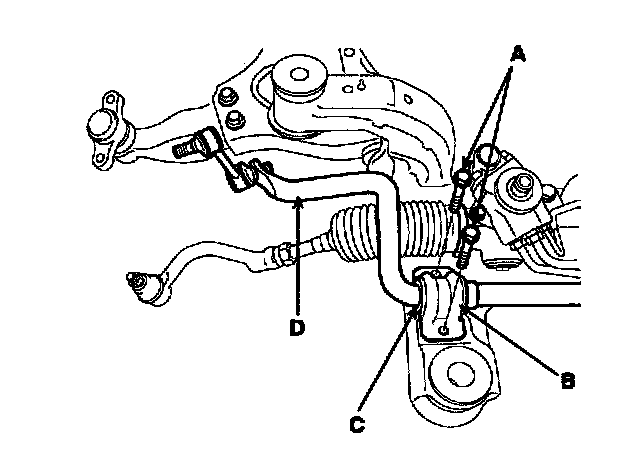

5. Remove the rear mounting bolts (A) of subframe.





6. Remove the stabilizer bracket (B) and bushing (C).
7. Remove the stabilizer bar (D).

CAUTION: Be careful not to damage the pressure tube.
