Installation

FRONT STABILIZER BAR

INSTALLATION

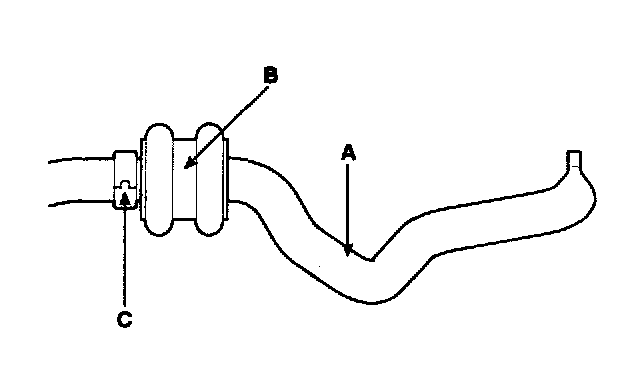

1. Install the bushing (B) on the stabilizer bar (A).





NOTE: Bring clamp (C) of stabilizer bar (A) into contact with bushing (B).

2. Install the bracket on the bushing (B).
3. After tightening the bolts of the bushing bracket temporarily, install the bushing bracket on the opposite side.

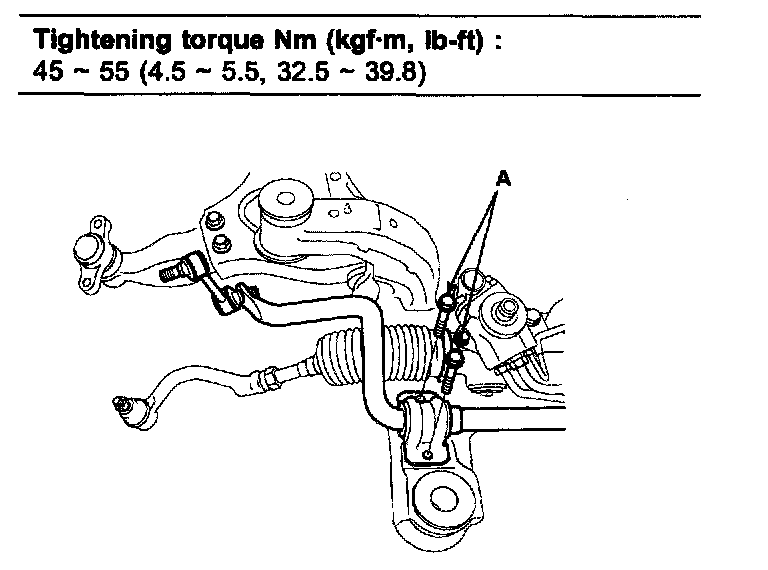

4. Install the rear stabilizer bark bracket mounting bolts (A) to the sub frame.
Tightening torque 45 - 55 Nm (4.5 - 5.5 kgf-cm, 32.5 - 39.8 ft. lbs.)

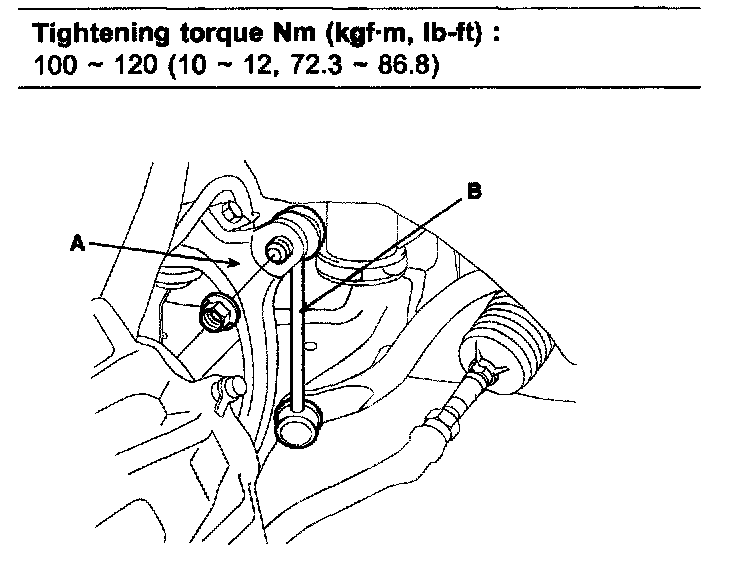

5. Install the stabilizer link (B) to the fork (A).
Tightening torque 100 - 120 Nm (10 - 12 kgf-cm, 72.3 - 86.8 ft. lbs.)





6. Install the wheel and the tire to the front hub.
Tightening torque 90 - 110 Nm (9 - 11 kgf-m, 65.1 - 79.5 ft. lbs.)

CAUTION: Be careful not to damage the hub bolts when installing the front wheel and tire.
