Removal

POWER STEERING GEAR BOX

REMOVAL
1. Drain the power steering fluid.
2. Remove the joint assembly connecting bolt.

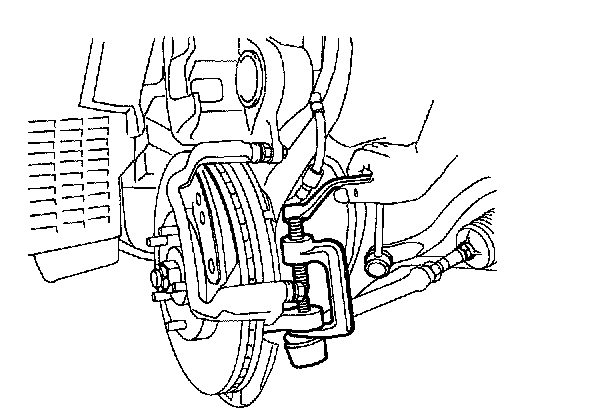

3. Using the special tool (09568-4A000). disconnect the tie rod end from the knuckle arm.





4. Remove the front fork and the knuckle ball joint from the front lower arm.

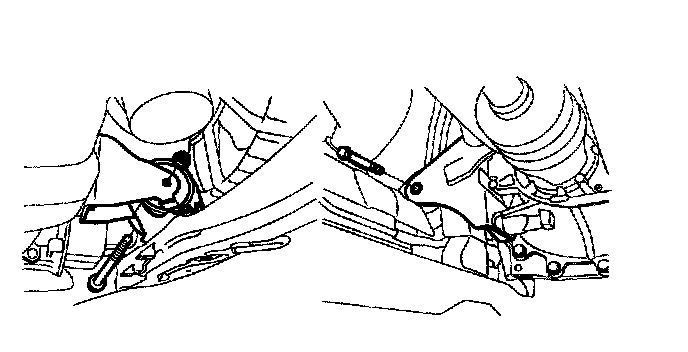

5. Remove the connecting bolts of front and rear roll stopper.

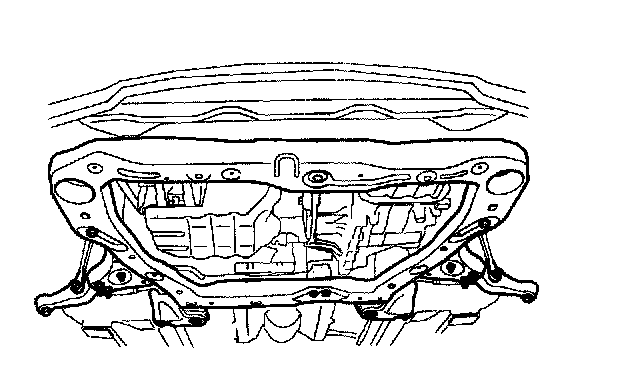

6. Remove the mounting bolts (10EA) of cross member complete assembly.

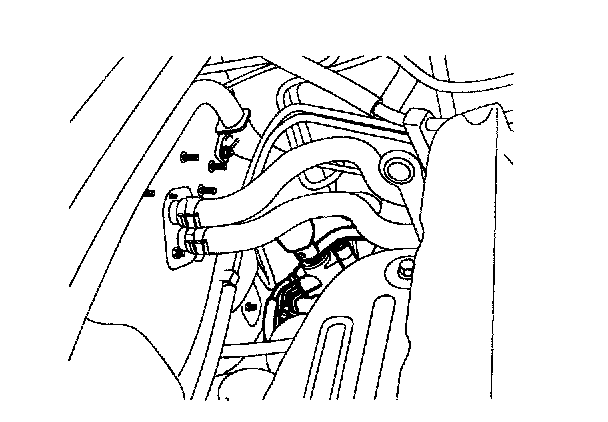

7. Disconnect the pressure hose and the return tube.

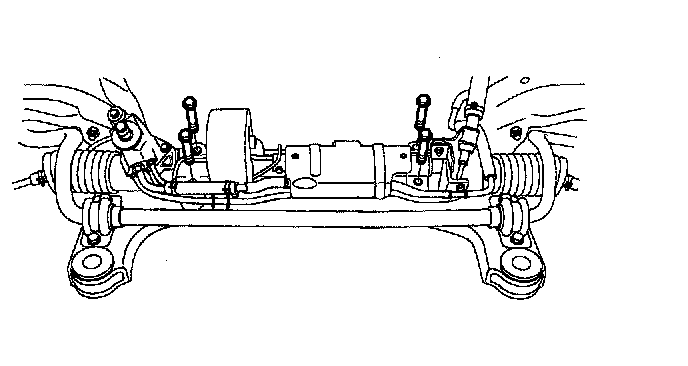

8. Remove the steering gear box mounting bolts and remove the steering gear box assembly and the mounting rubber.





CAUTION: When removing the gear box, pull it out carefully and slowly to avoid damaging the boots.

9. Remove the stabilizer bar.
