Overhaul

DISASSEMBLY

KEY LOCK ASSEMBLY

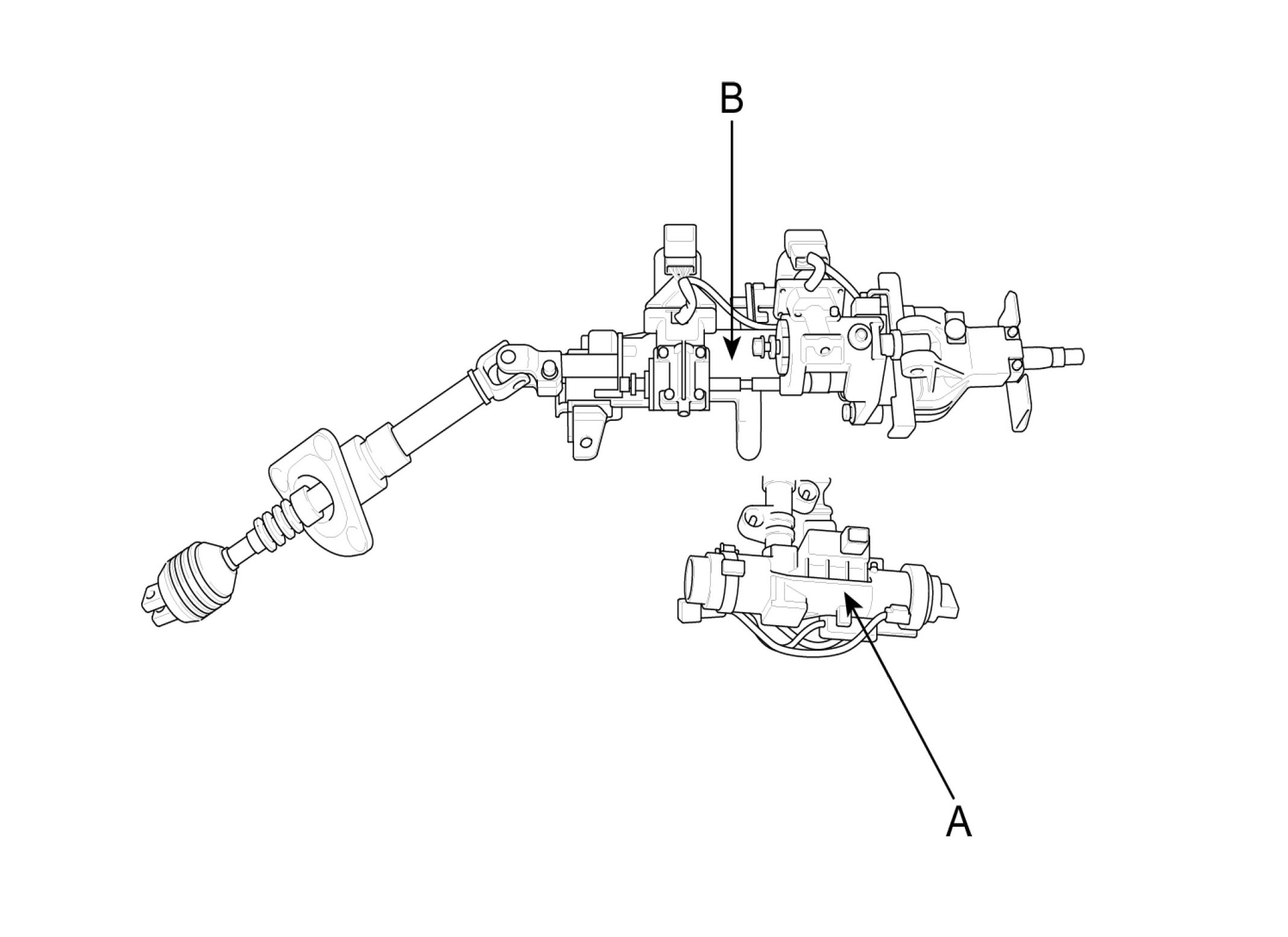

1. If it is necessary to remove the key lock assembly (A), use a punch to make a groove on the head of the special bolt (B), and then use a screwdriver to remove the key lock assembly mounting bracket (C).





2. Disassemble the key lock assembly (A) from the steering column and shaft assembly (B).





3. Reassembly is reverse of disassembly.

UNIVERSAL JOINT ASSEMBLY

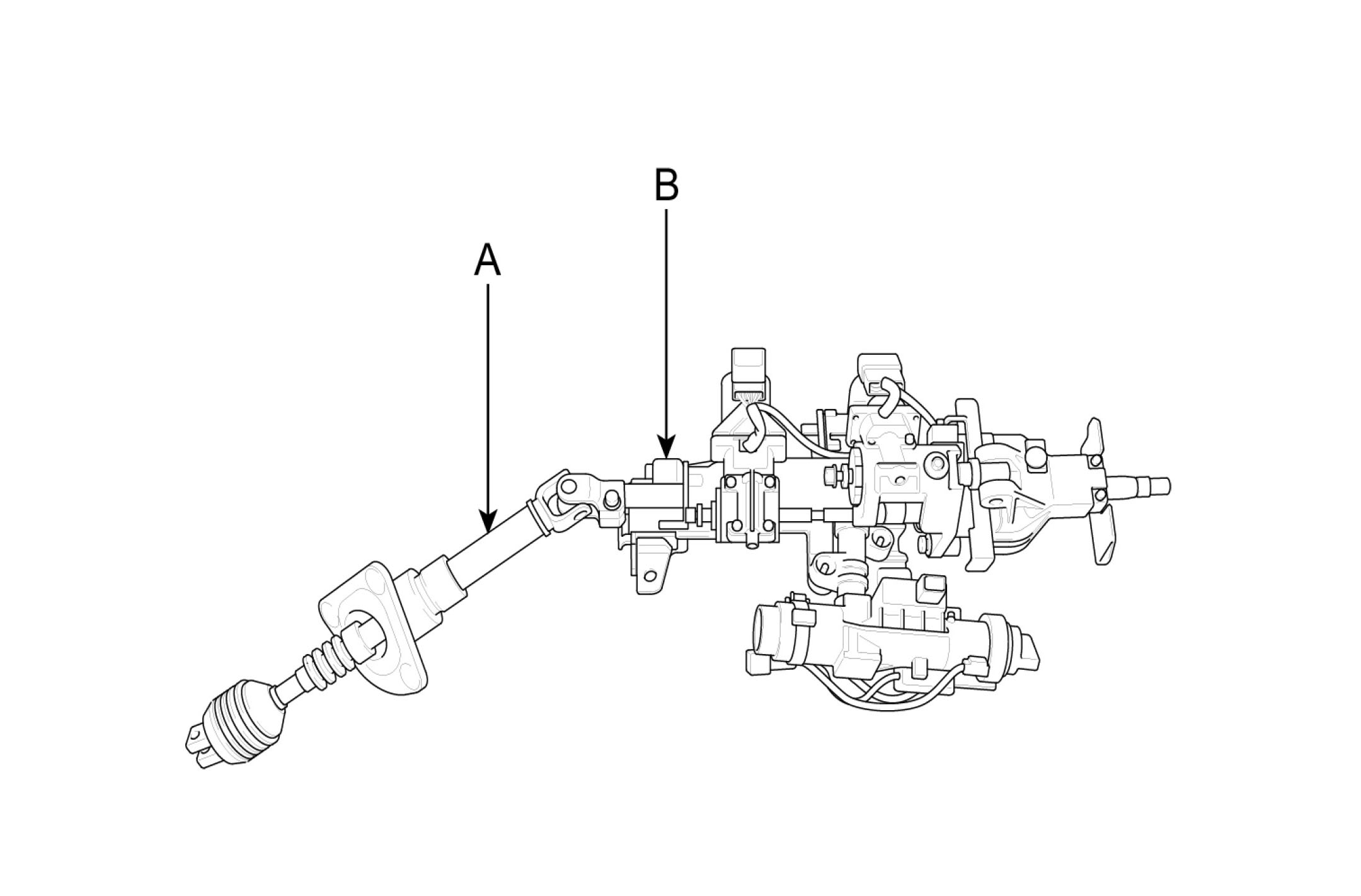

1. Remove the bolt (A) connecting the universal joint assembly (B) and the steering column and shaft assembly (C).





2. Remove the universal joint assembly (A) from the steering column and shaft assembly (B).





3. Reassembly is reverse of disassembly.

INSPECTION
1. Check the steering shaft for damage, play and round movement.
2. Check the upper and lower bearing for wear or damage.
3. Check the joints for excessive play, damage or rough movement.
4. Check the tilt bracket for cracks or damage.
5. Check the cover or boot for damage.
6. Check that the steering lock mechanism operates properly. If necessary, replace.
