INSTALLATIONFRONT SIDE AIRBAG
CAUTION: Be sure to install the harness wires not to be pinched or interfered with other parts.
NOTE:
- Do not open the lid of the side airbag cover.
- Use a new mounting nuts when you replace a side airbag.
- Make sure that the airbag assembly cover is installed properly. Improper installation may prevent the proper deployment.
1. Disconnect the battery negative cable and wait for at least three minutes.
2. Remove the ignition key from the vehicle.

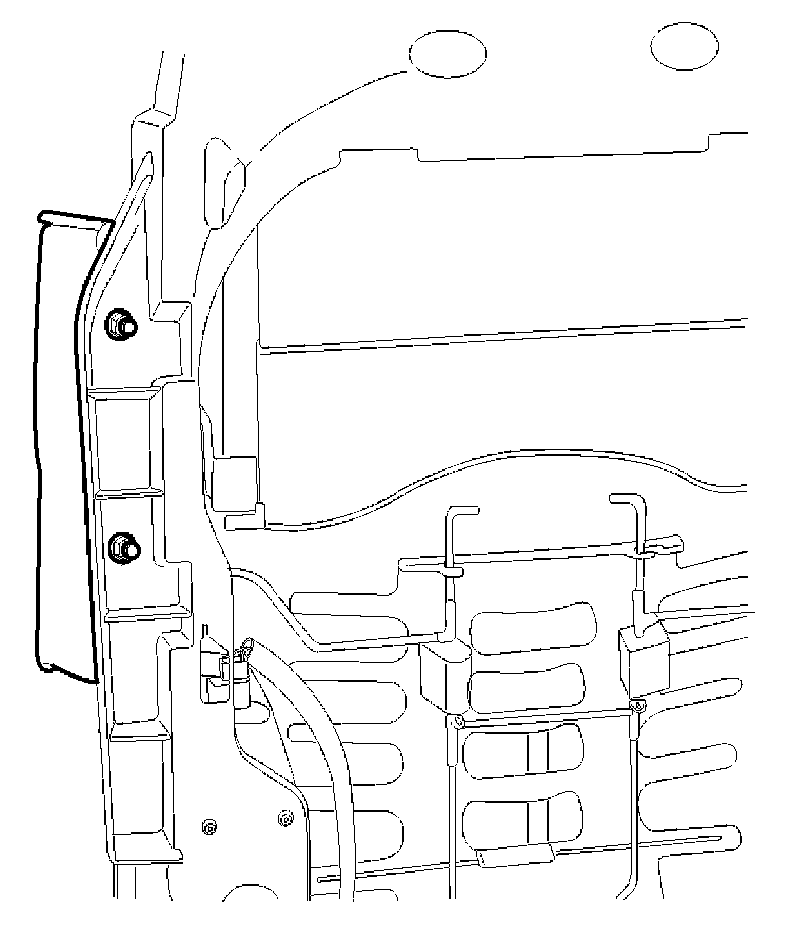

3. Place a Side Airbag (SAB) on the side airbag frame and tighten the side airbag mounting nuts (2EA).
Tightening torque: 0.7 - 0.9 kgf.m (7.0 - 9.0 Nm, 5.2 - 6.6 lb.ft)
4. Install the new seatback cover.

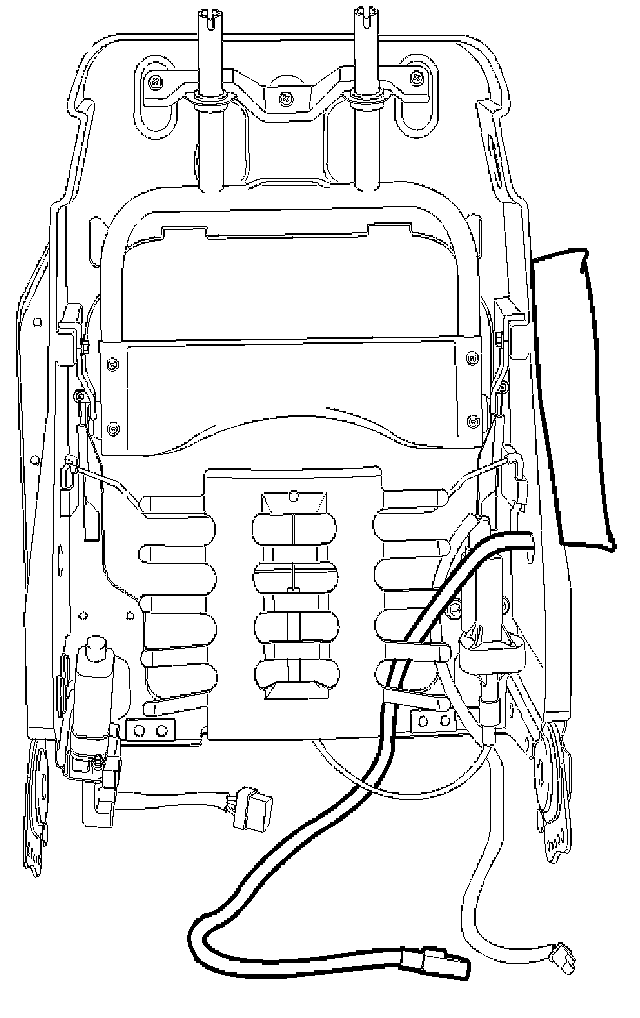

5. Install the front seat assembly, then connect the Side Airbag (SAB) harness connector.
6. Recline and slide the front seat forward fully, make sure the harness wires are not pinched of interfering with other parts.
7. Reconnect the battery negative cable.
8. After installing the Side Airbag (SAB), confirm proper system operation:
- Turn the ignition switch ON; the SRS indicator light should be turned on for about six seconds and then go off.
REMOVAL
FRONT SIDE AIRBAG
1. Disconnect the battery negative cable and wait for at least 3 minutes before beginning work.
2. Remove the front seat assembly.
3. Remove the seatback cover.
NOTE: When the front side airbag deployed after a collision, replace the seatback as an assembly.
4. Loosen the SAB mounting nuts and remove the SAB module.
WARNING: The removed airbag module should be stored in a clean and dry place with the cushion side up.
