Home >> Hyundai >> 2006 >> Azera V6-3.8L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Locations

Fuse: Locations










Fuse Panel Locations

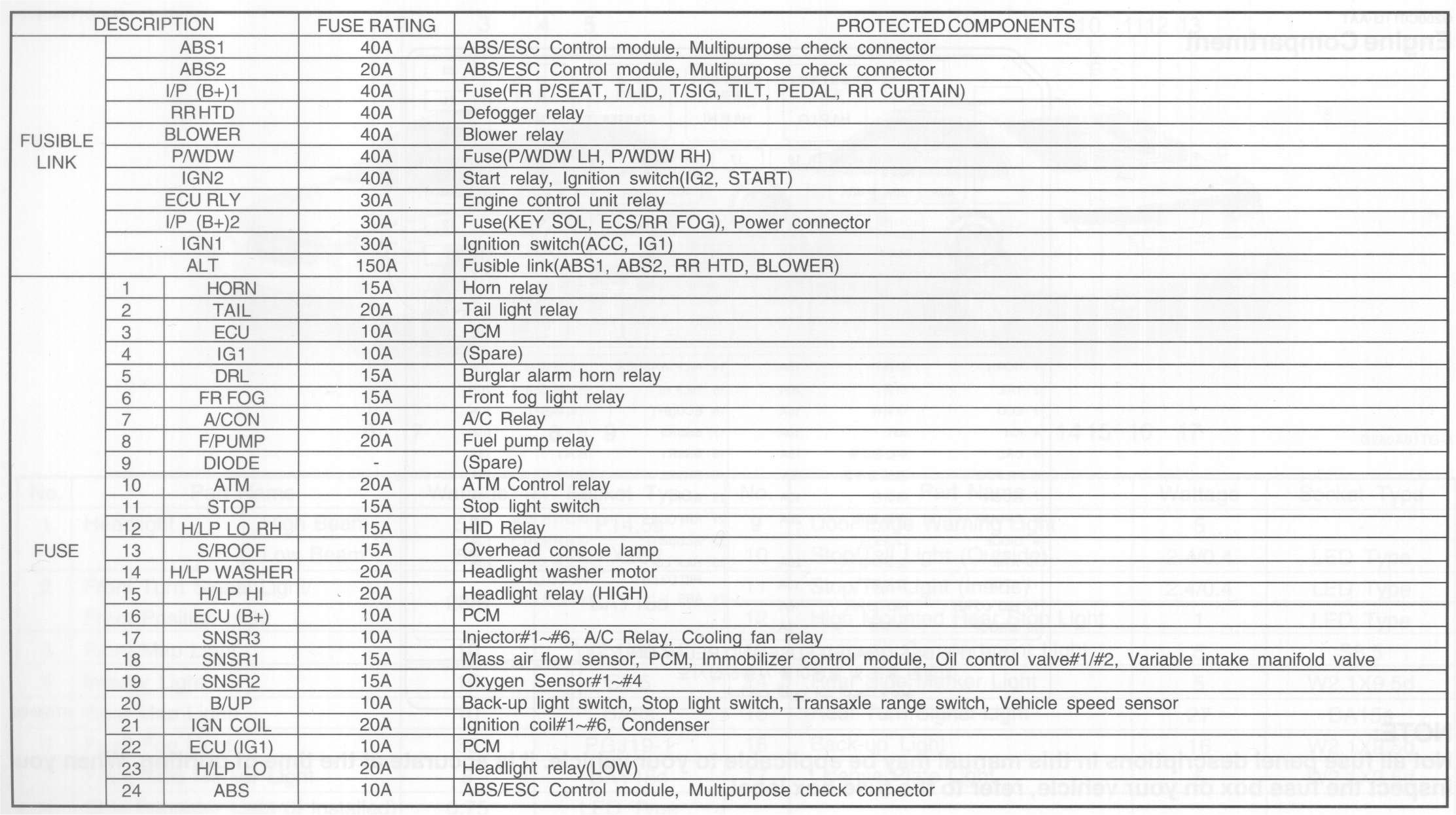

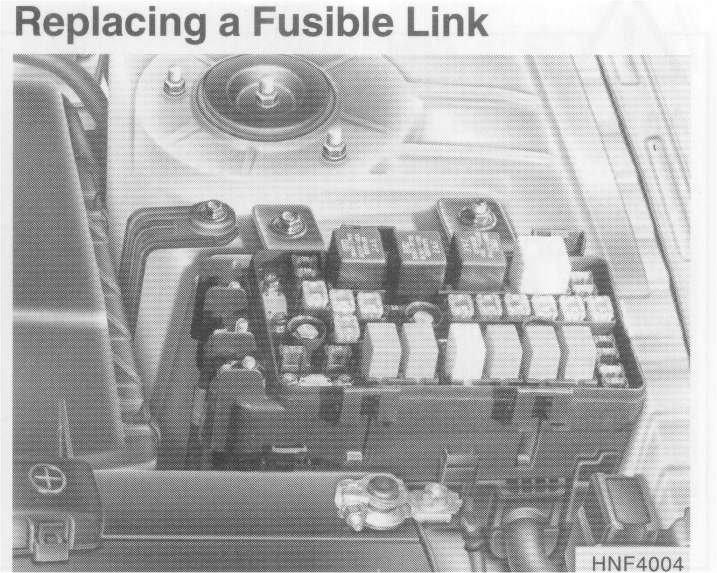

Engine Compartment Panel

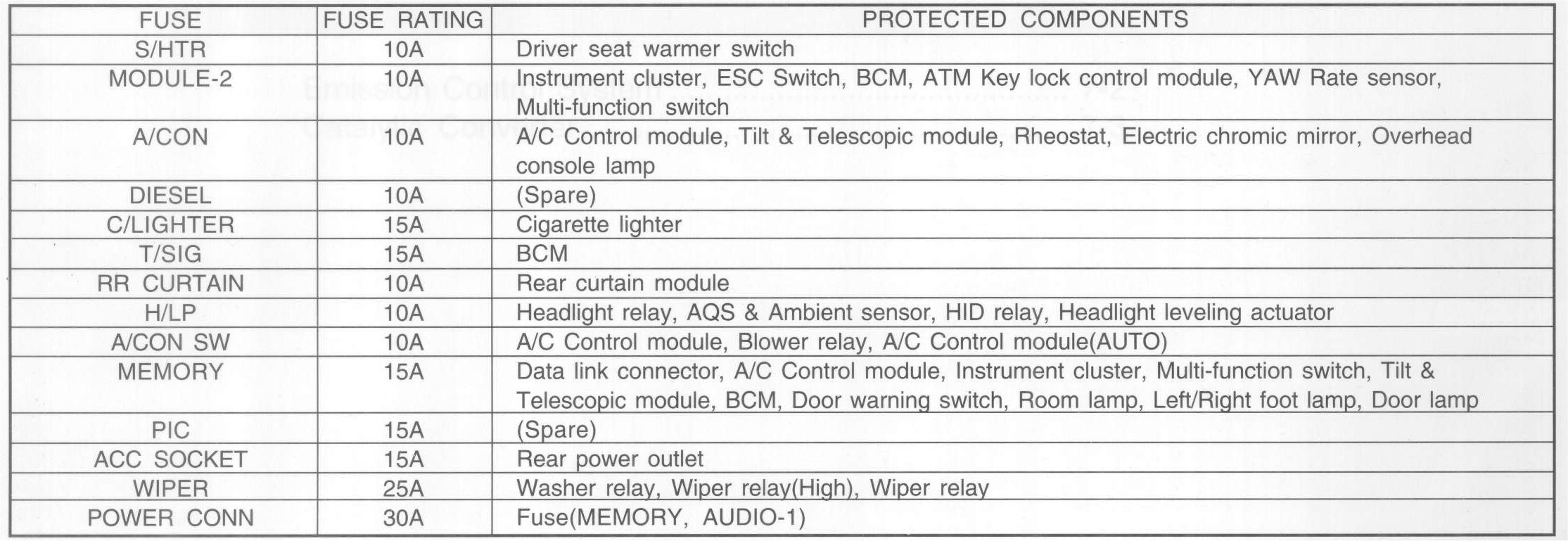

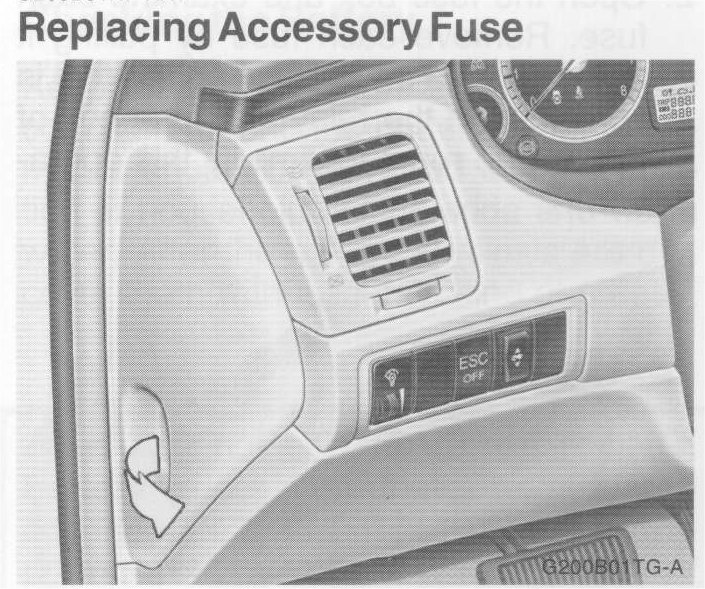

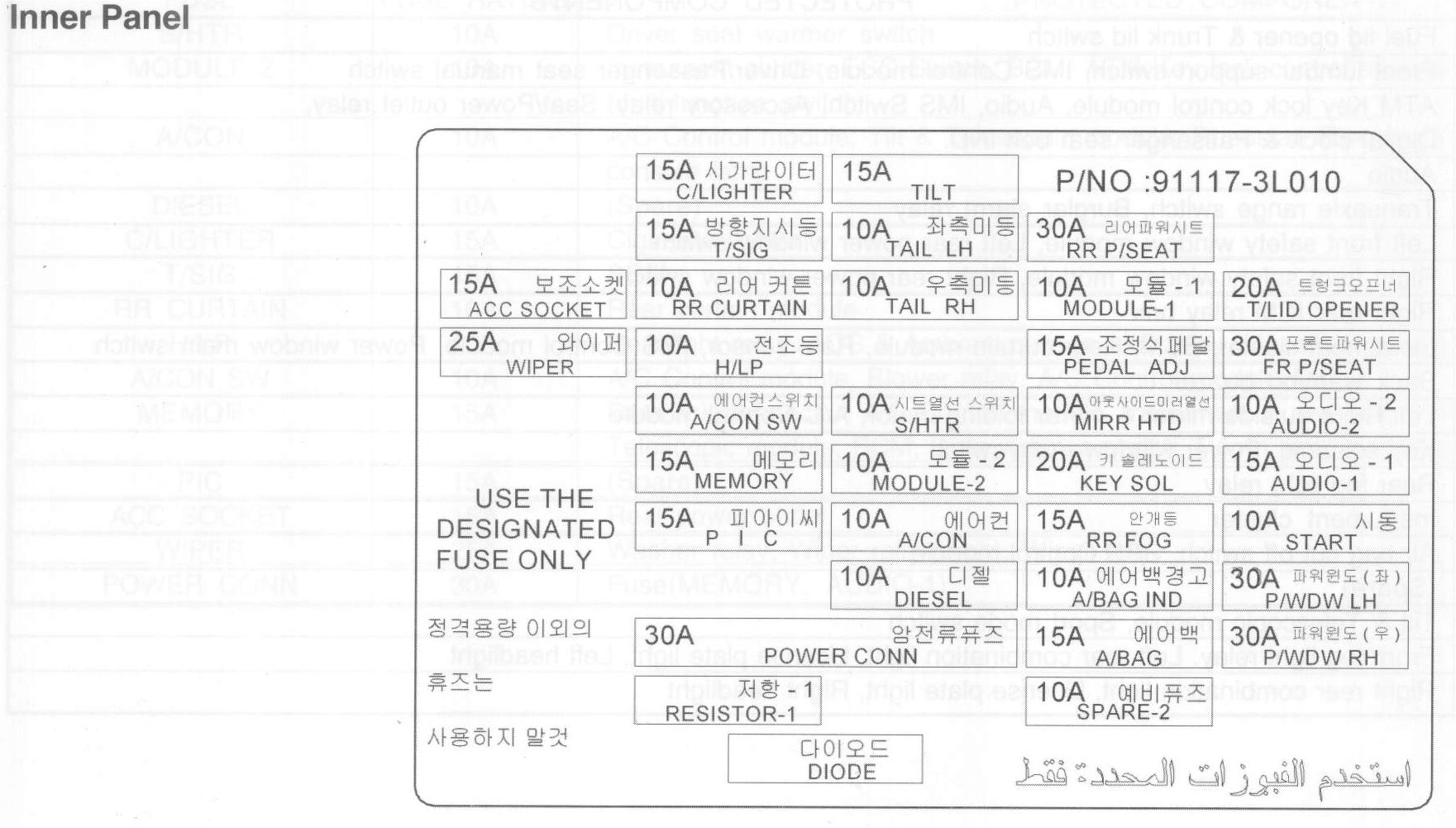

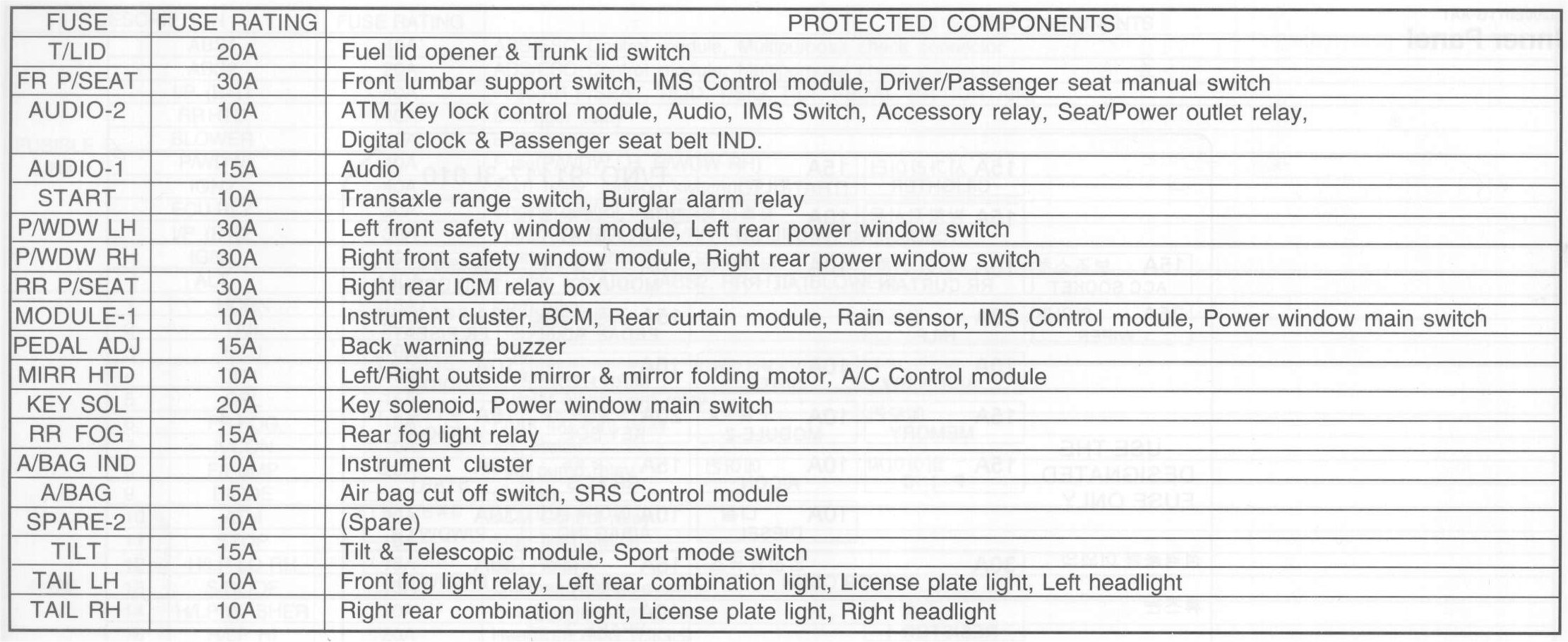

Inner Panel
