Body - Dimension Information
Group: BODYNumber: 06-60-002
Date: JUNE, 2006 Model
Model: AZERA
Subject
BODY DIMENSIONS FOR AZERA
DESCRIPTION:
This TSB is being issued to provide body dimension information. Similar information may be available from suppliers of frame straightening equipment.

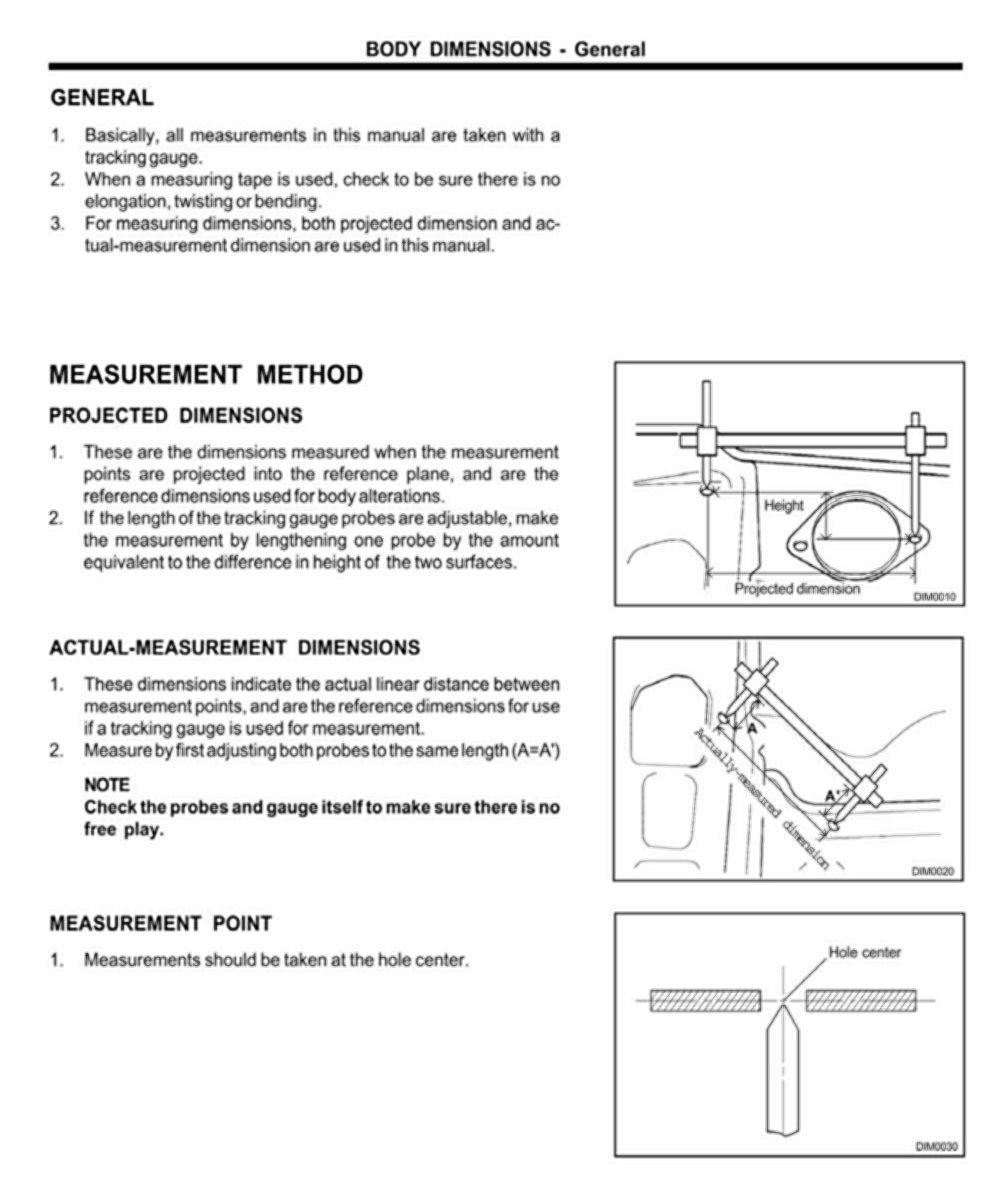

Body Dimensions - General

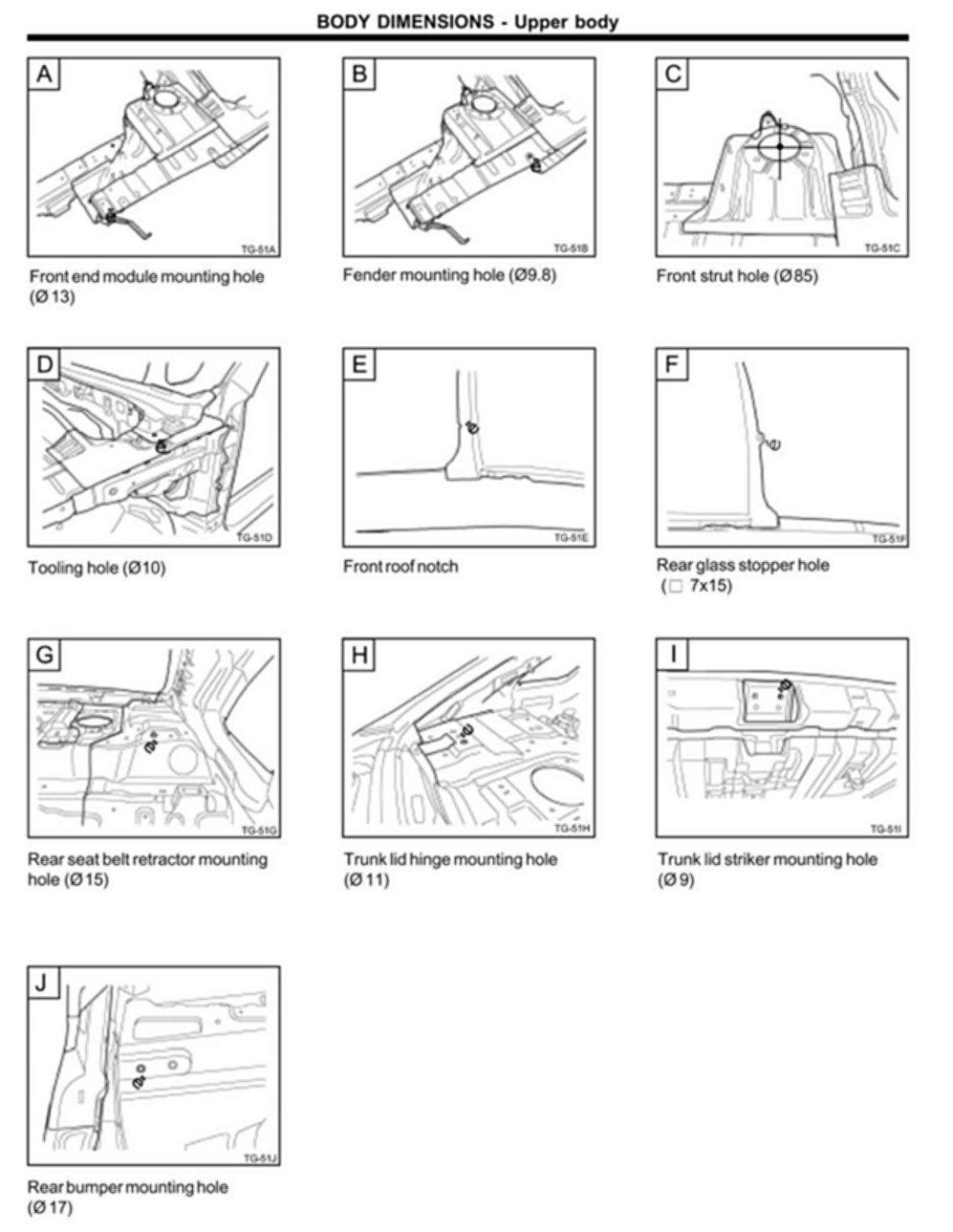

Body Dimensions - Upper Body

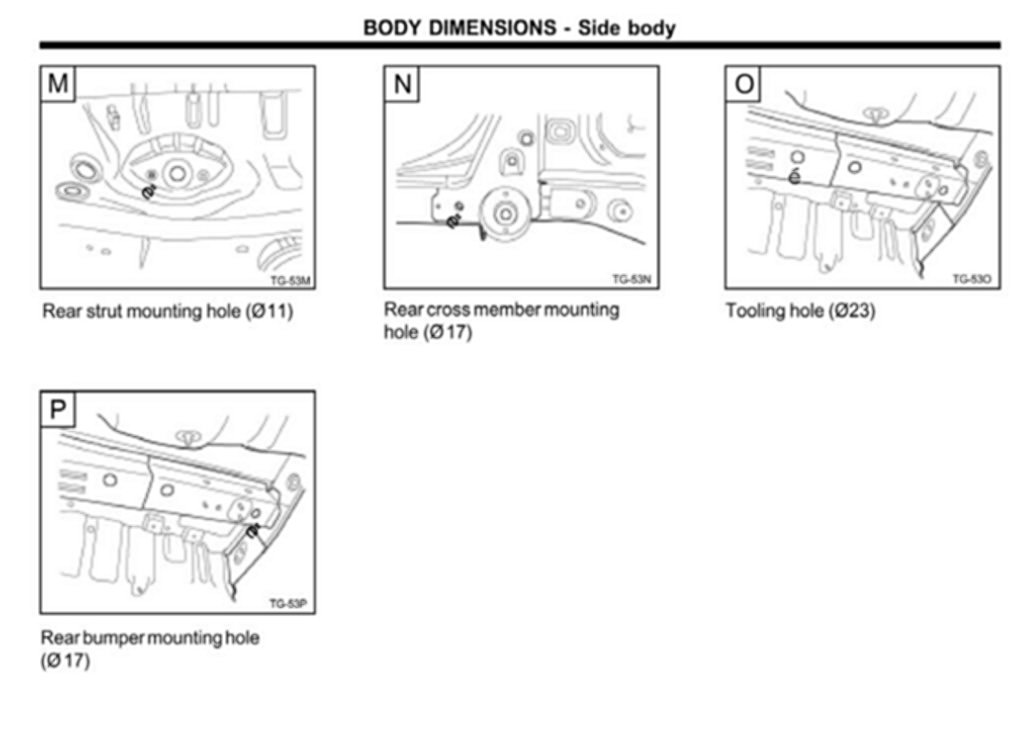

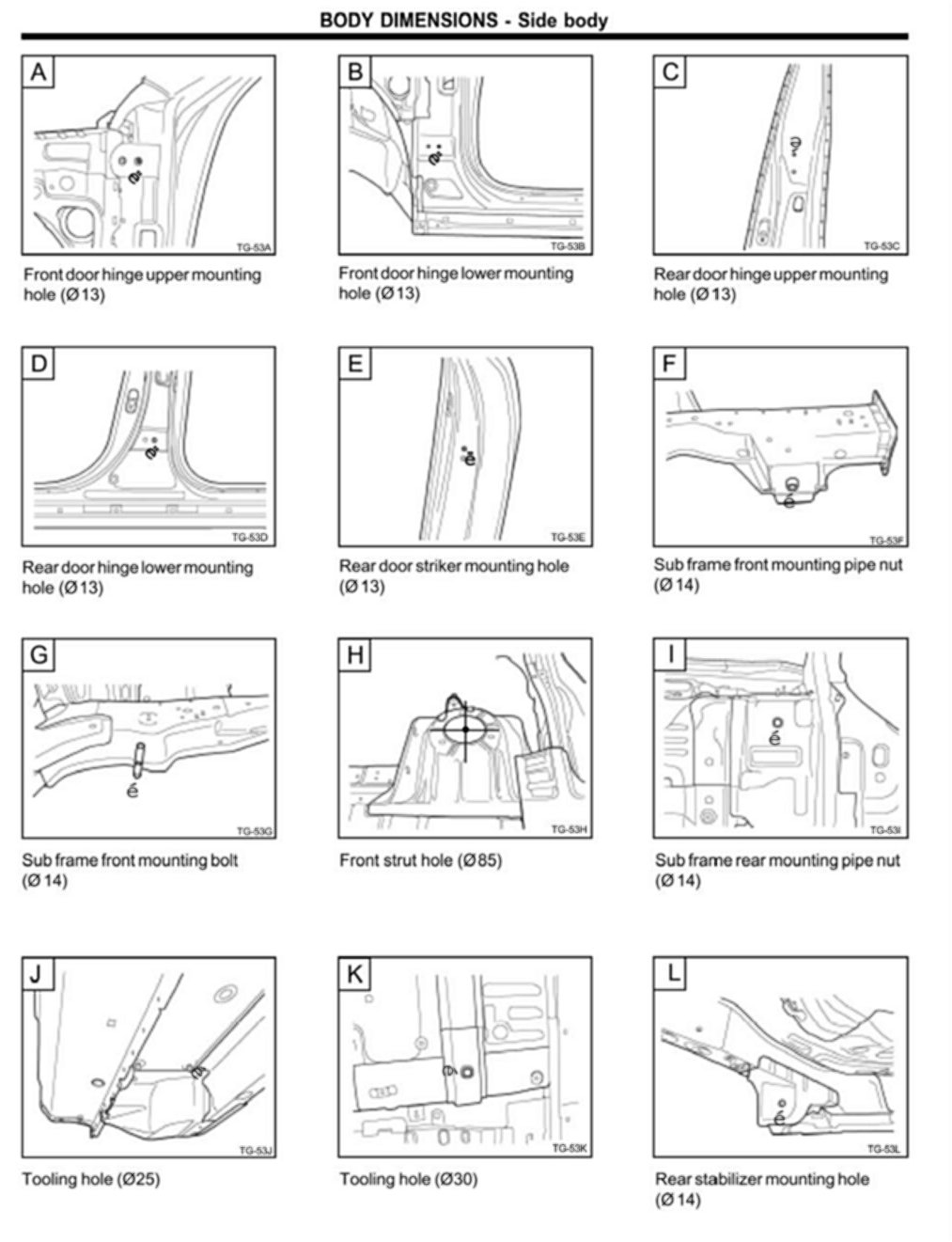

Body Dimensions - Side Body

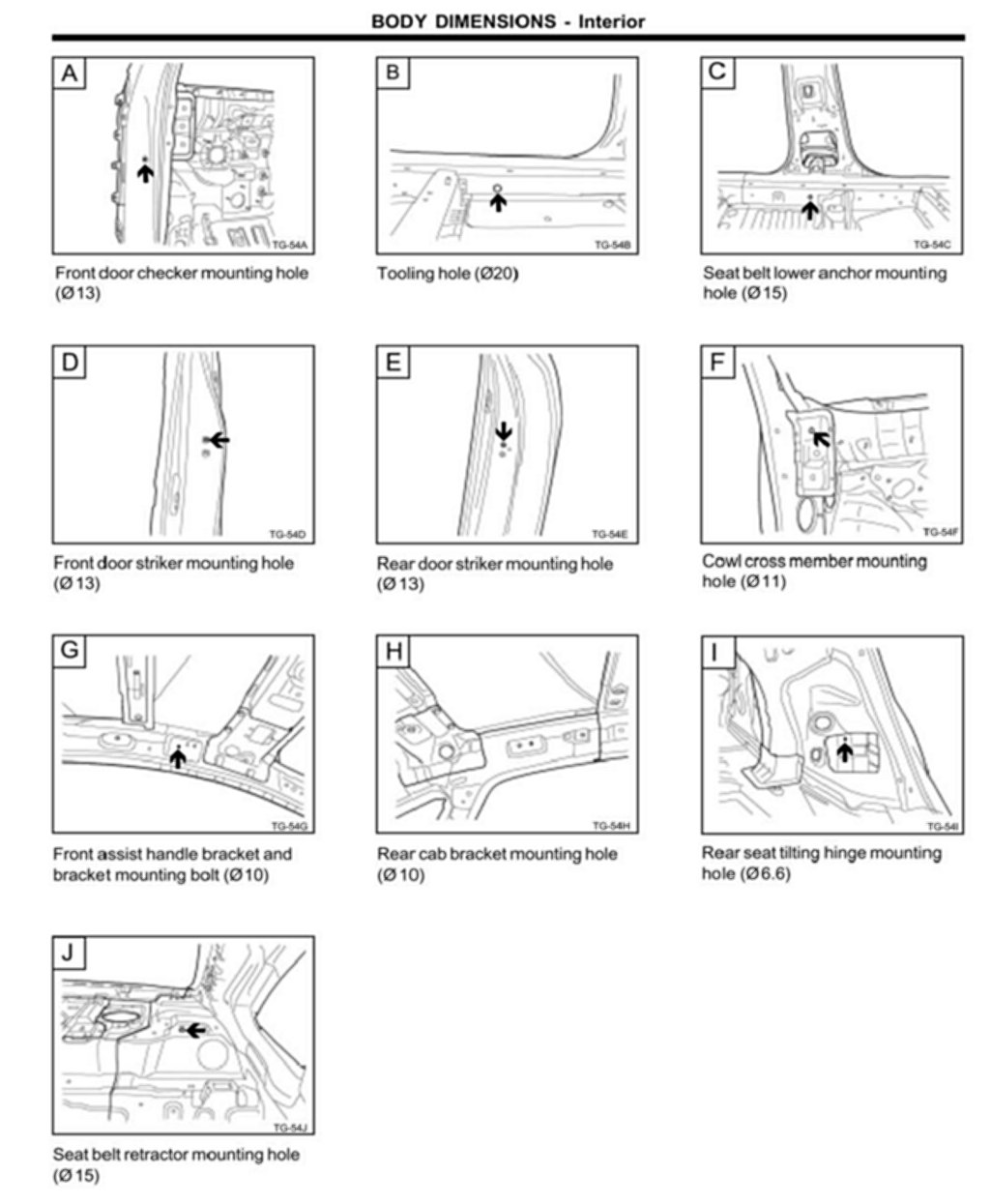

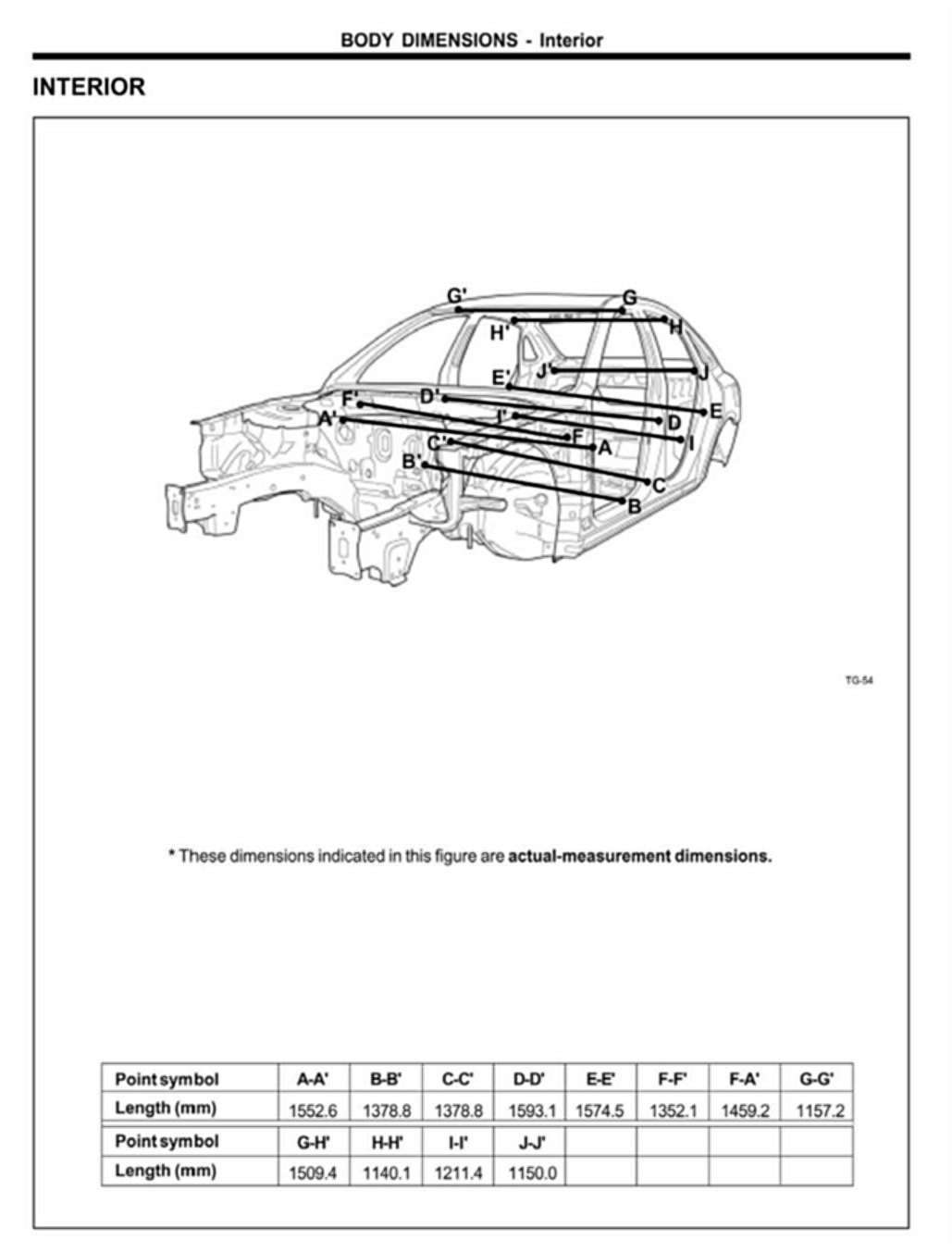

Body Dimensions - Interior

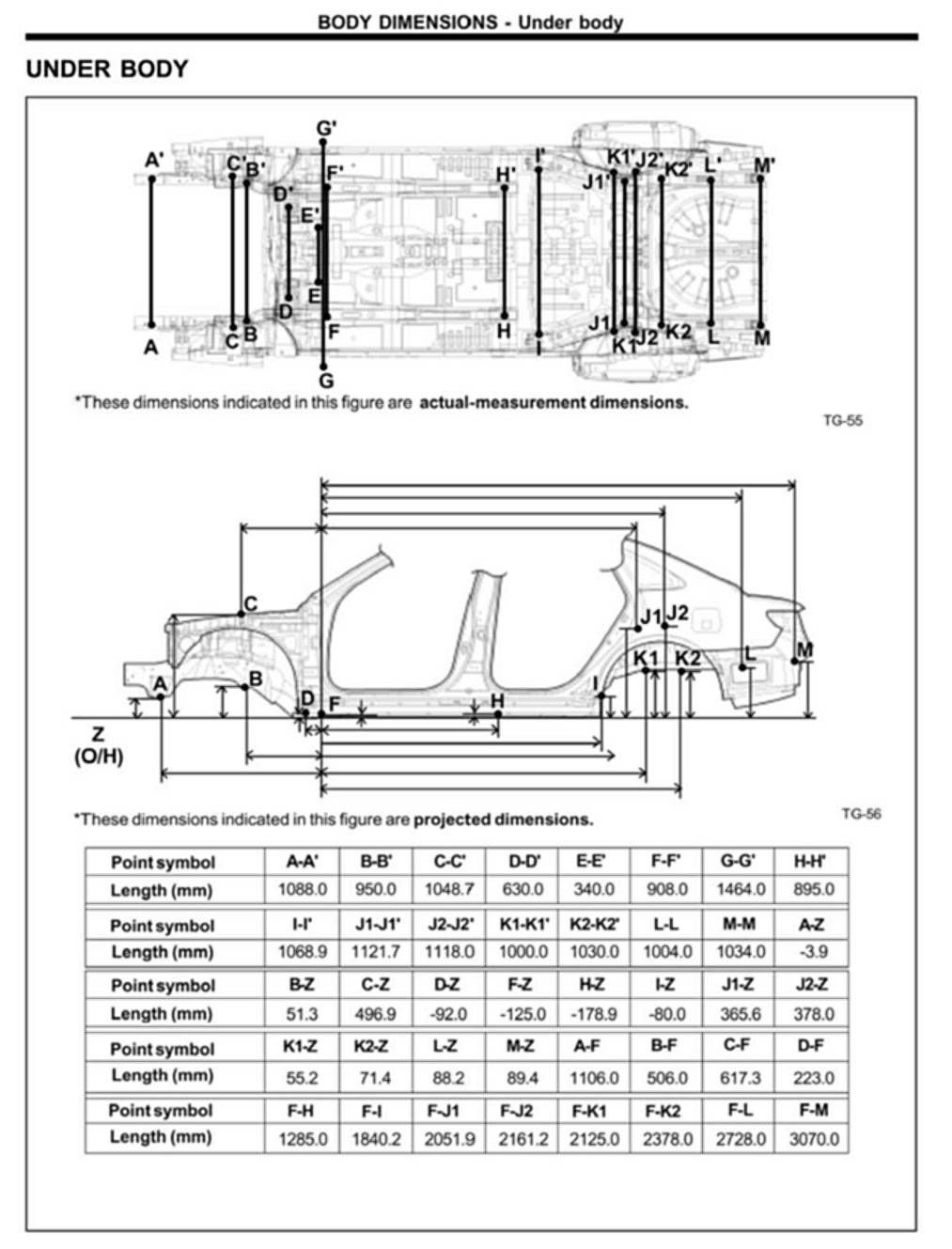

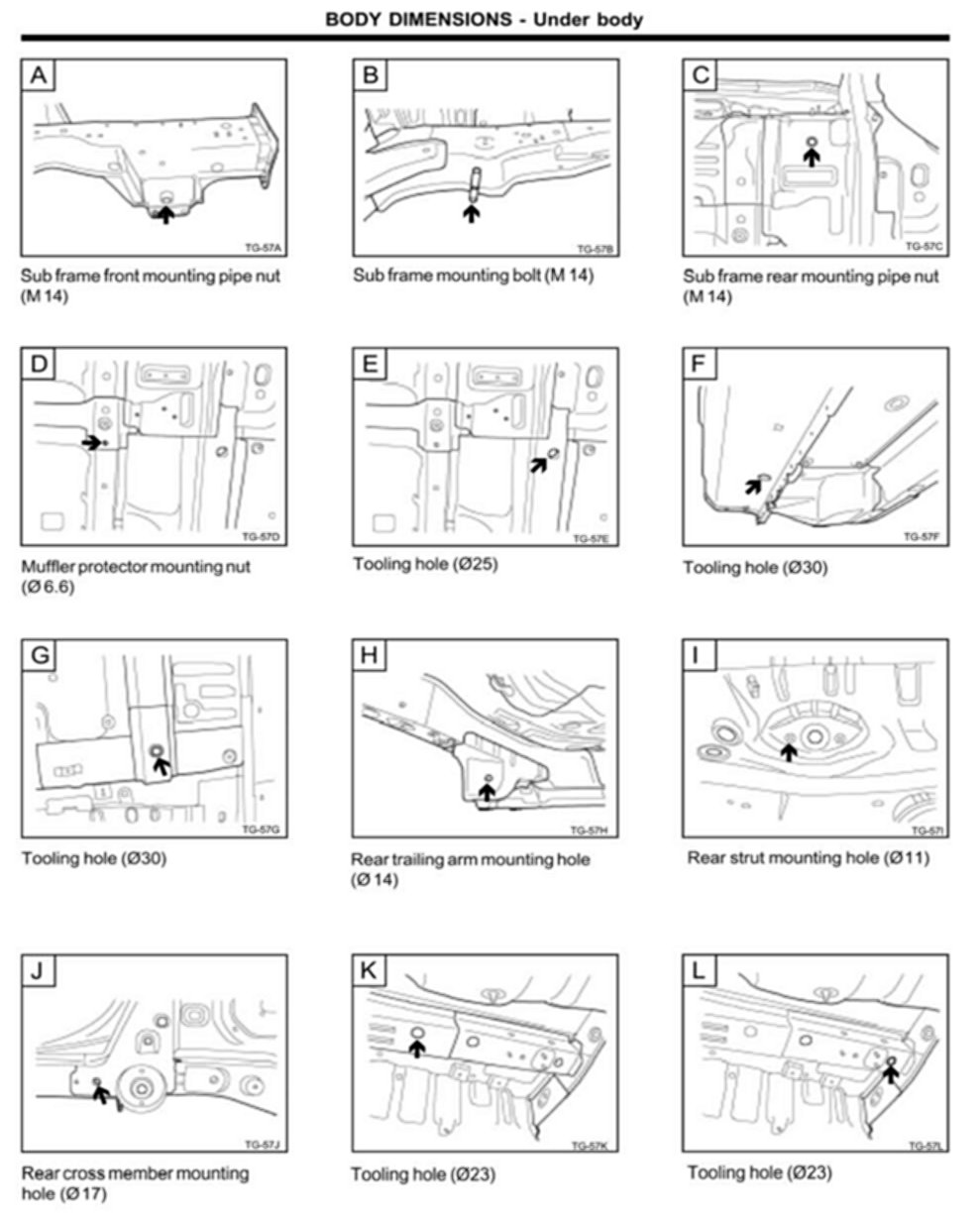

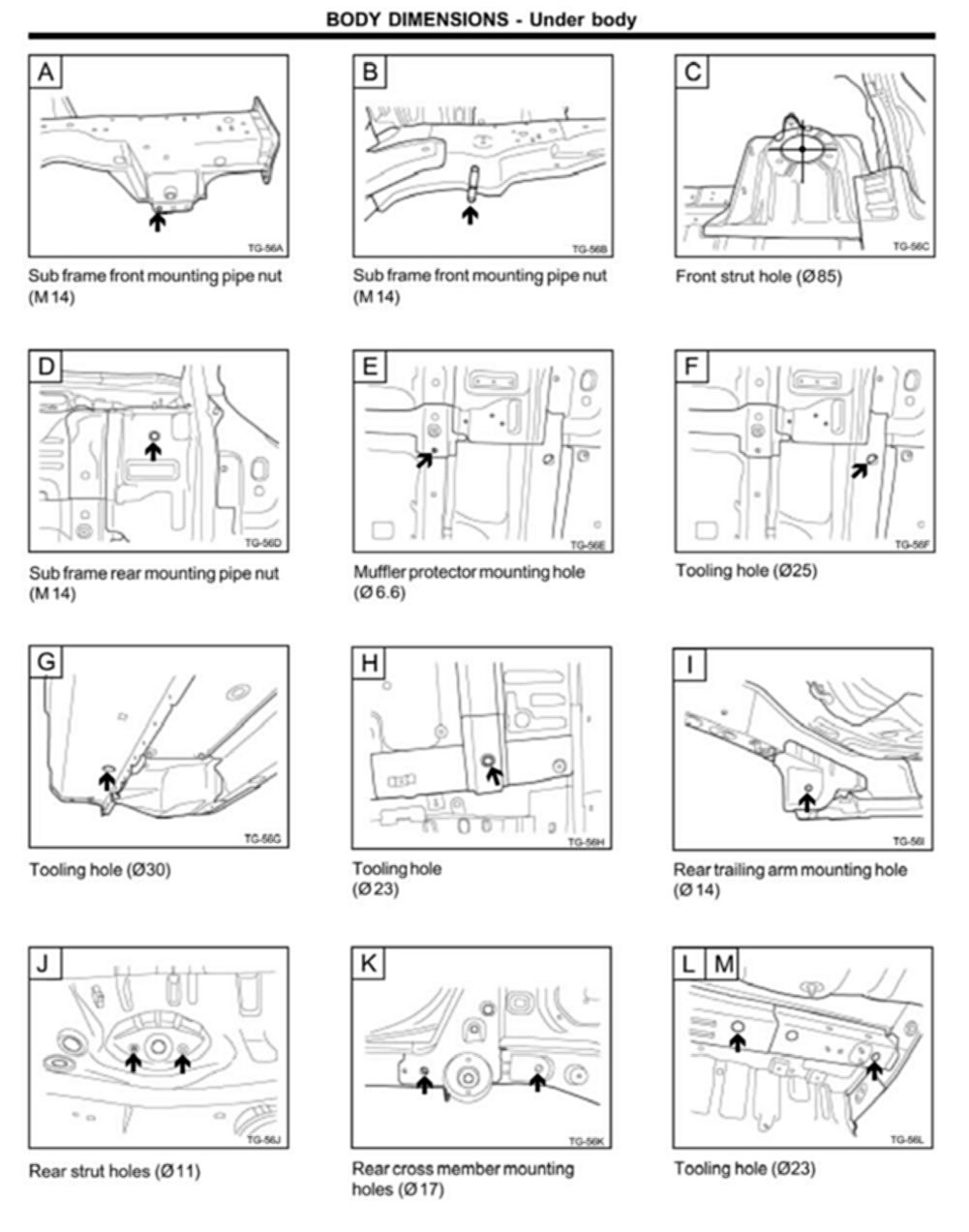

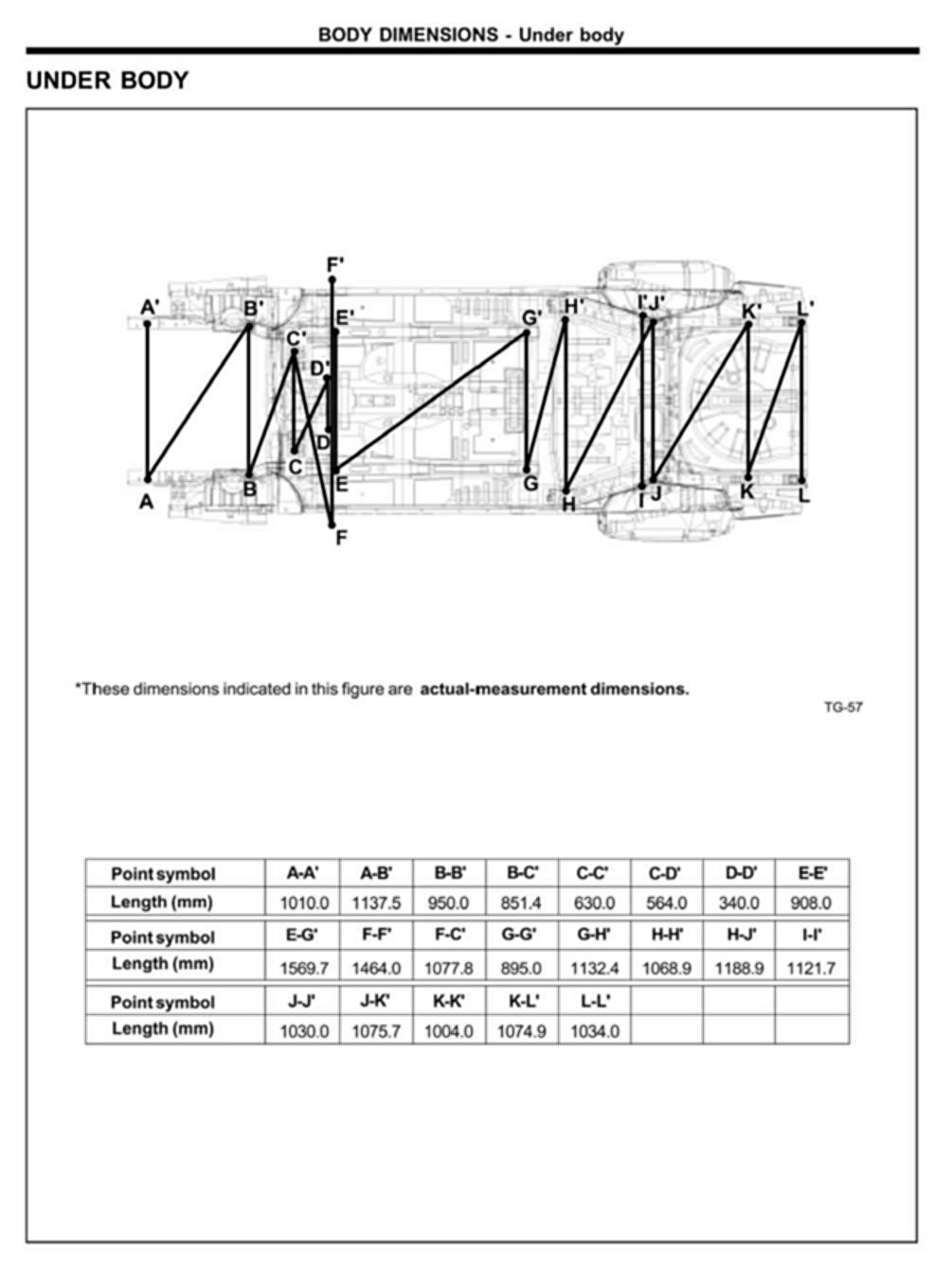

Body Dimensions - Under Body

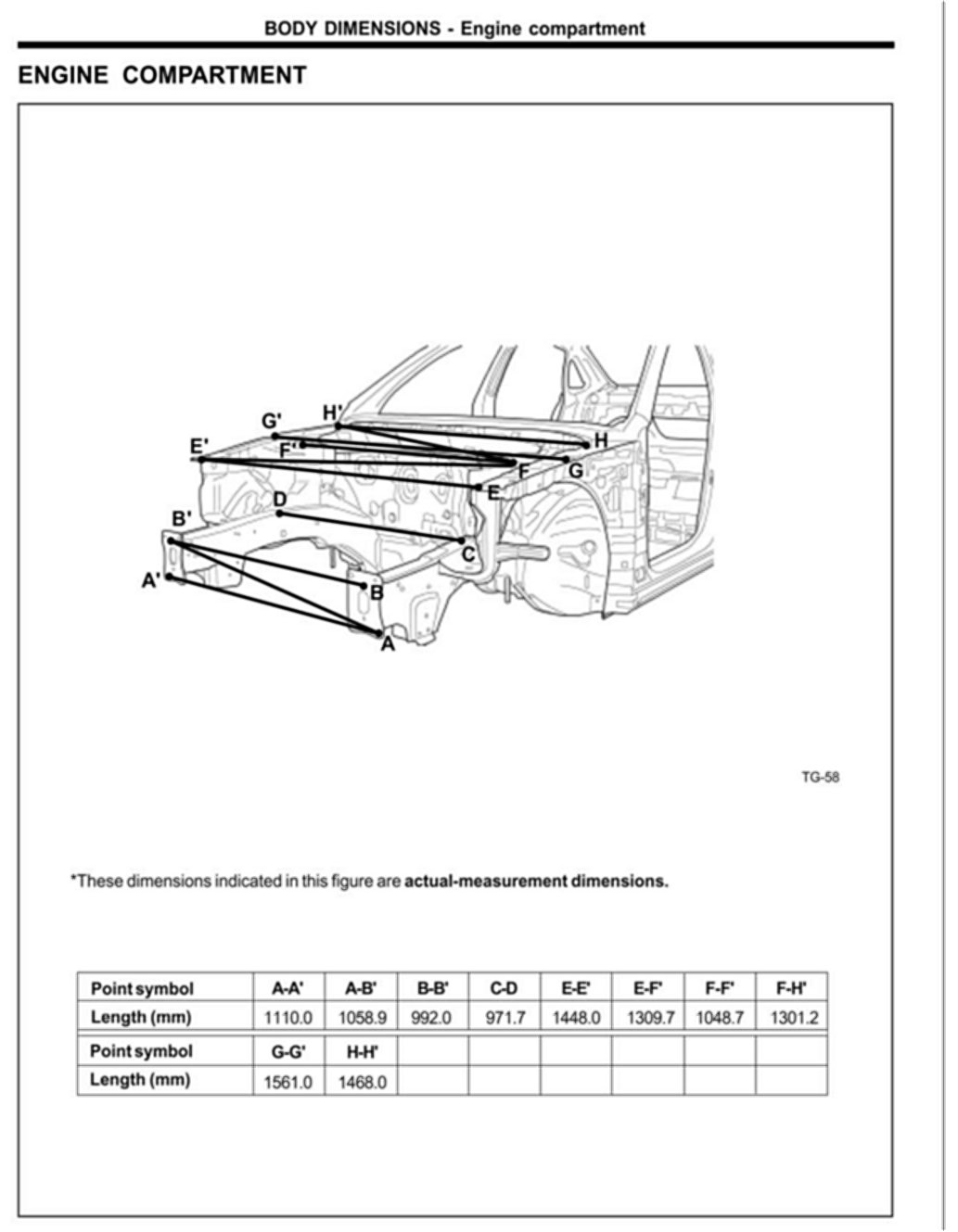

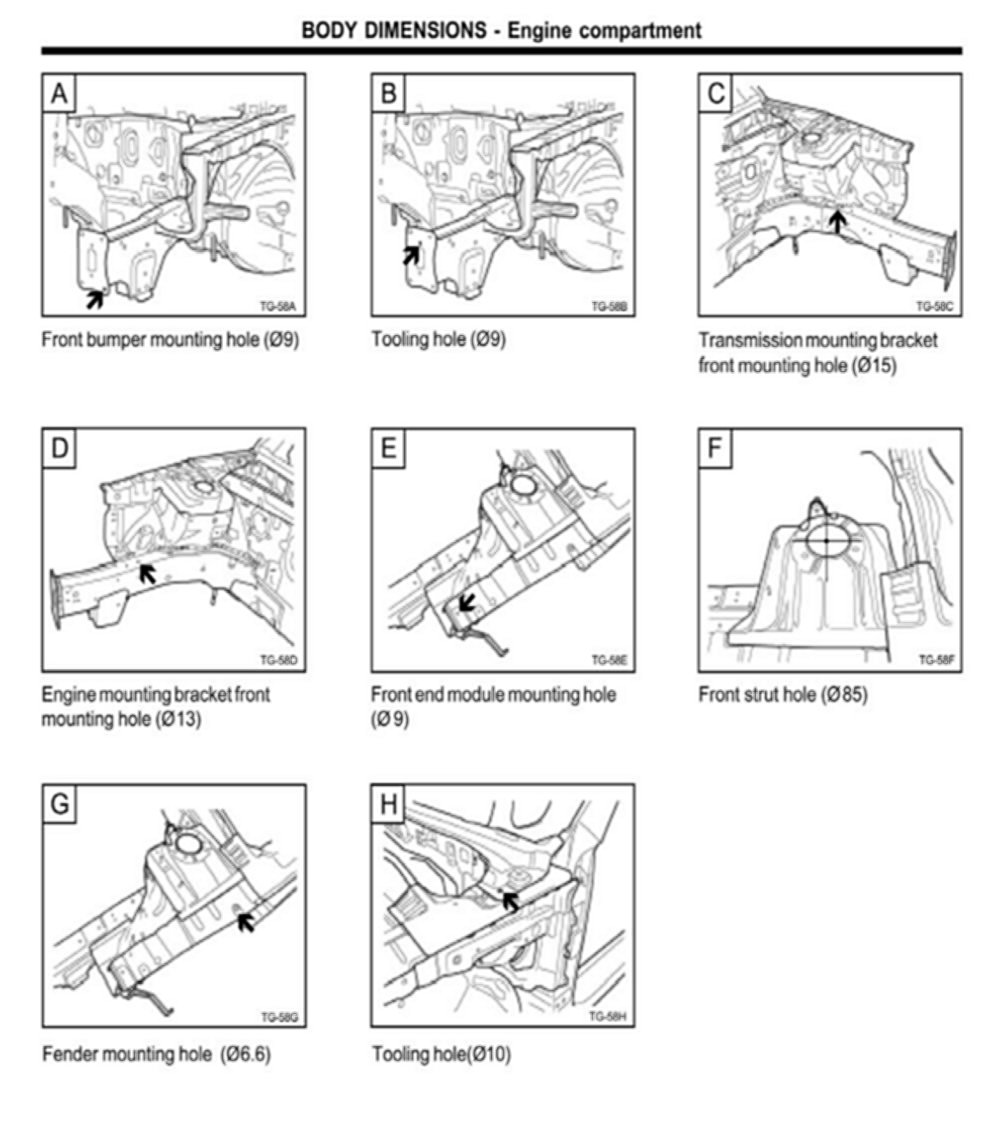

Body Dimensions - Engine Compartment

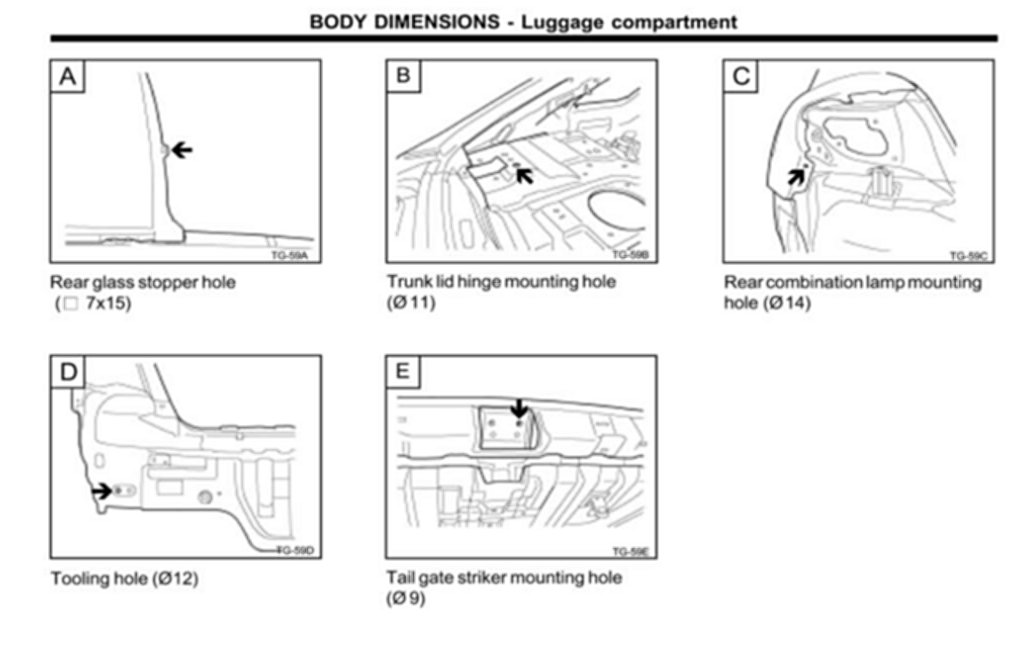

Body Dimensions - Luggage Compartment
