Removal and Replacement

Driveshaft and Axle

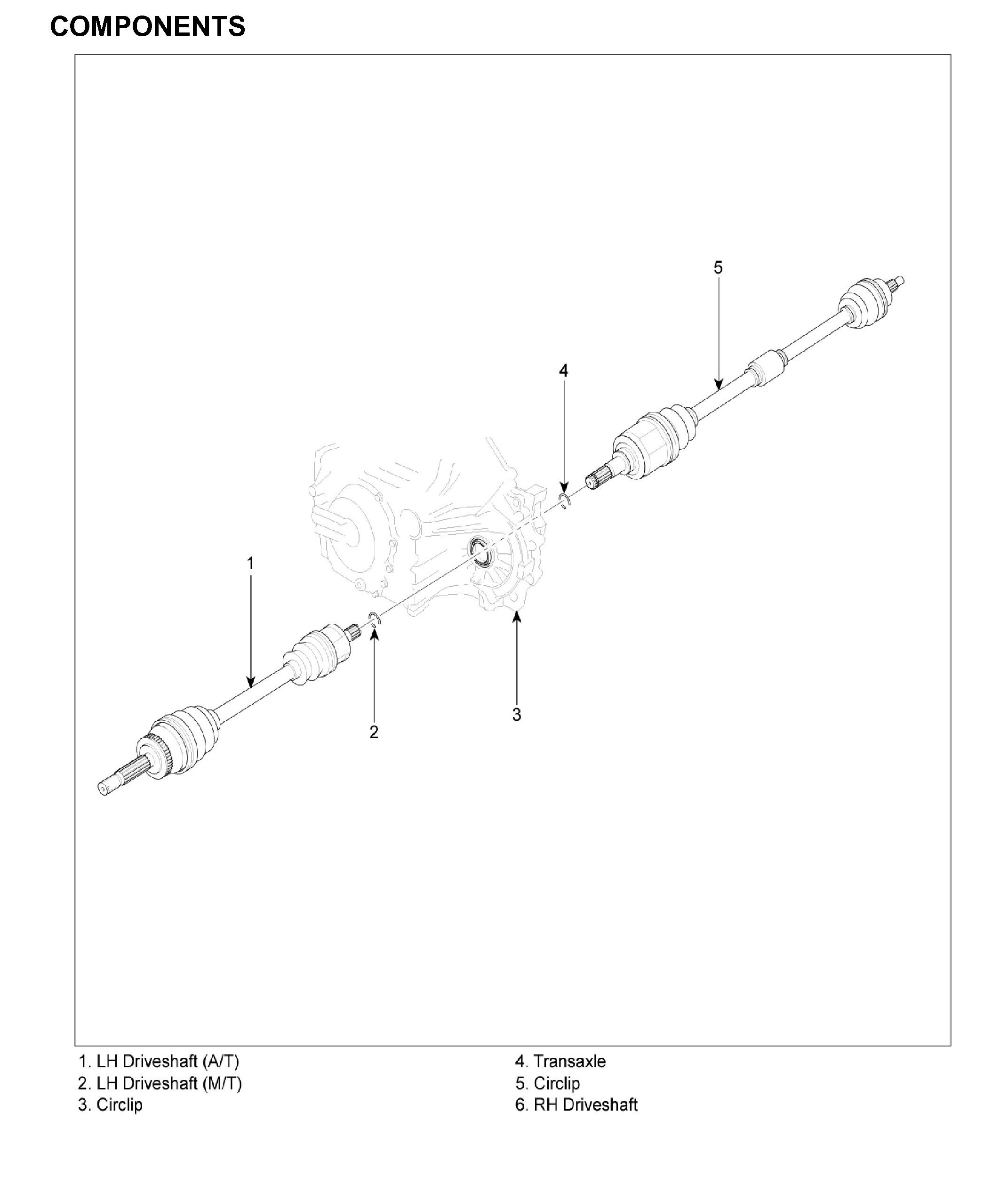

COMPONENTS:

INSPECTION
1. Check the driveshaft boots for damage and deterioration.
2. Check the joints for wear and damage.
3. Check the splines for wear and damage.
4. Check the dynamic damper for cracks and wear.





INSTALLATION
1. Installation is the reverse of removal.

CAUTION:
^ Replace the circlip with new ones before the installation.

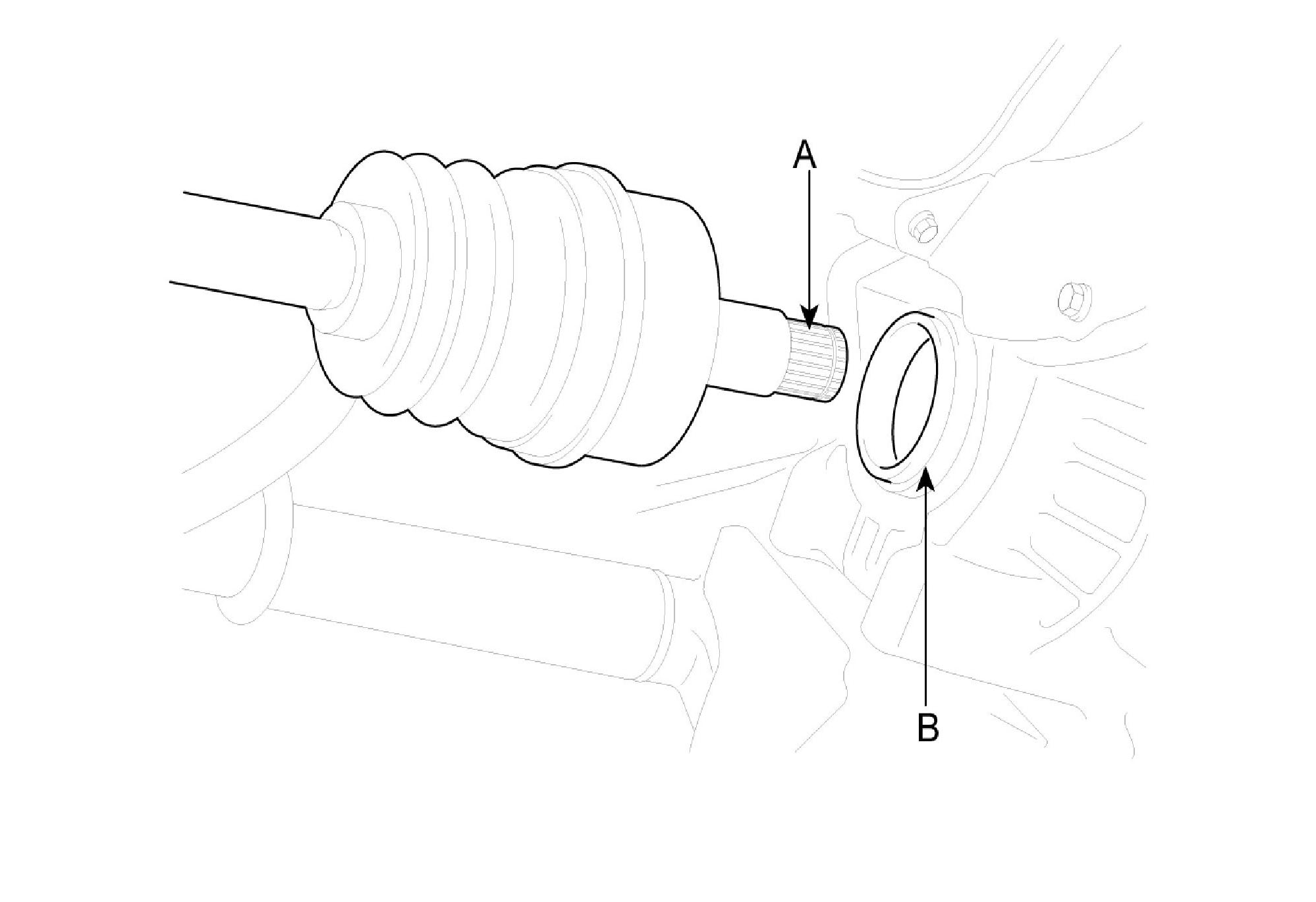

^ Before the installation, apply the gear oil on the driveshaft splines (A) and contacting surface of differential case oil seal (B).

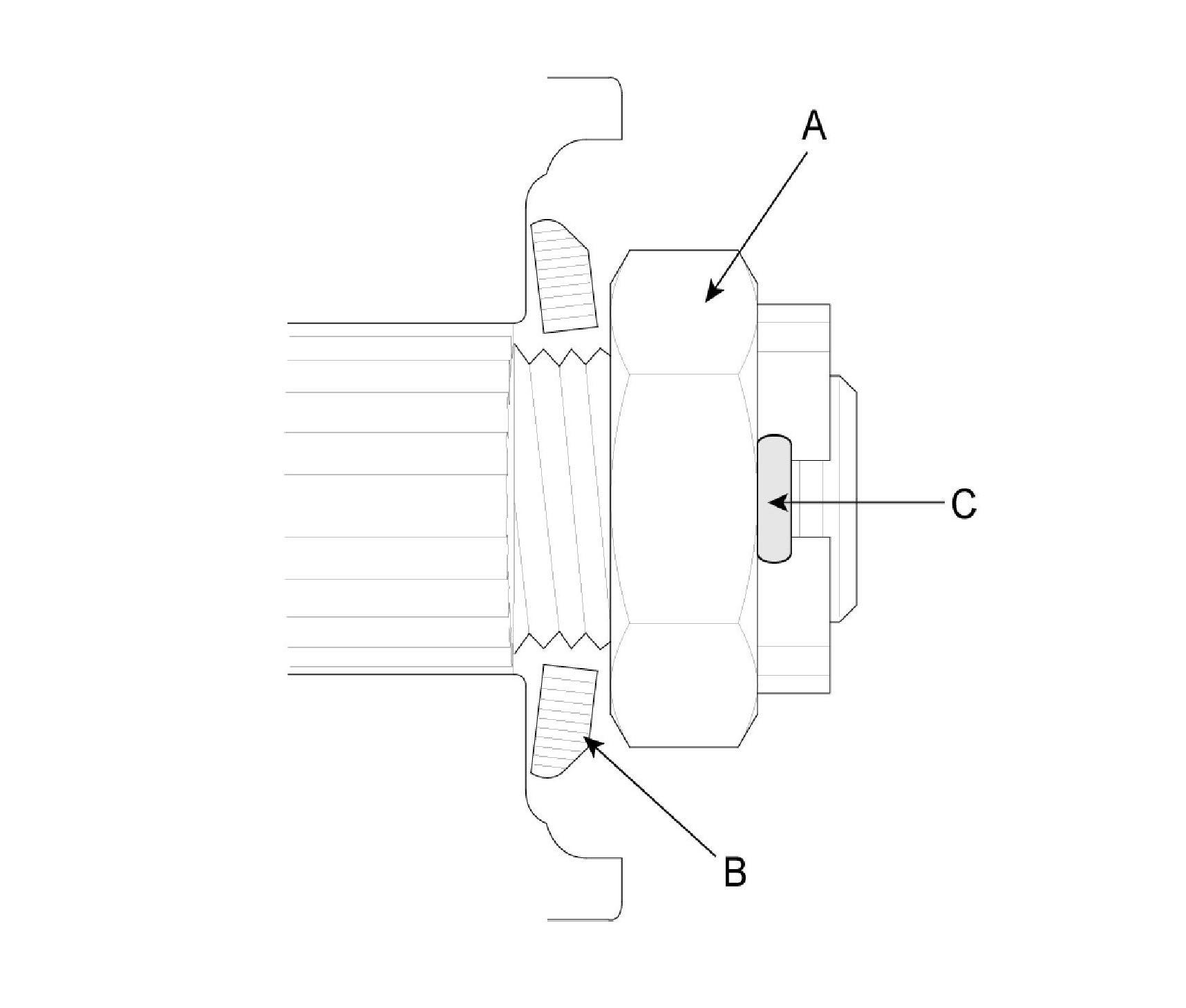

^ The washer (B) should be assembled with convex surface outward when installing the castle (A) nut and split pin (C).
