Temperature Control Actuator

REPLACEMENT
1. Disconnect the negative (-) battery terminal.

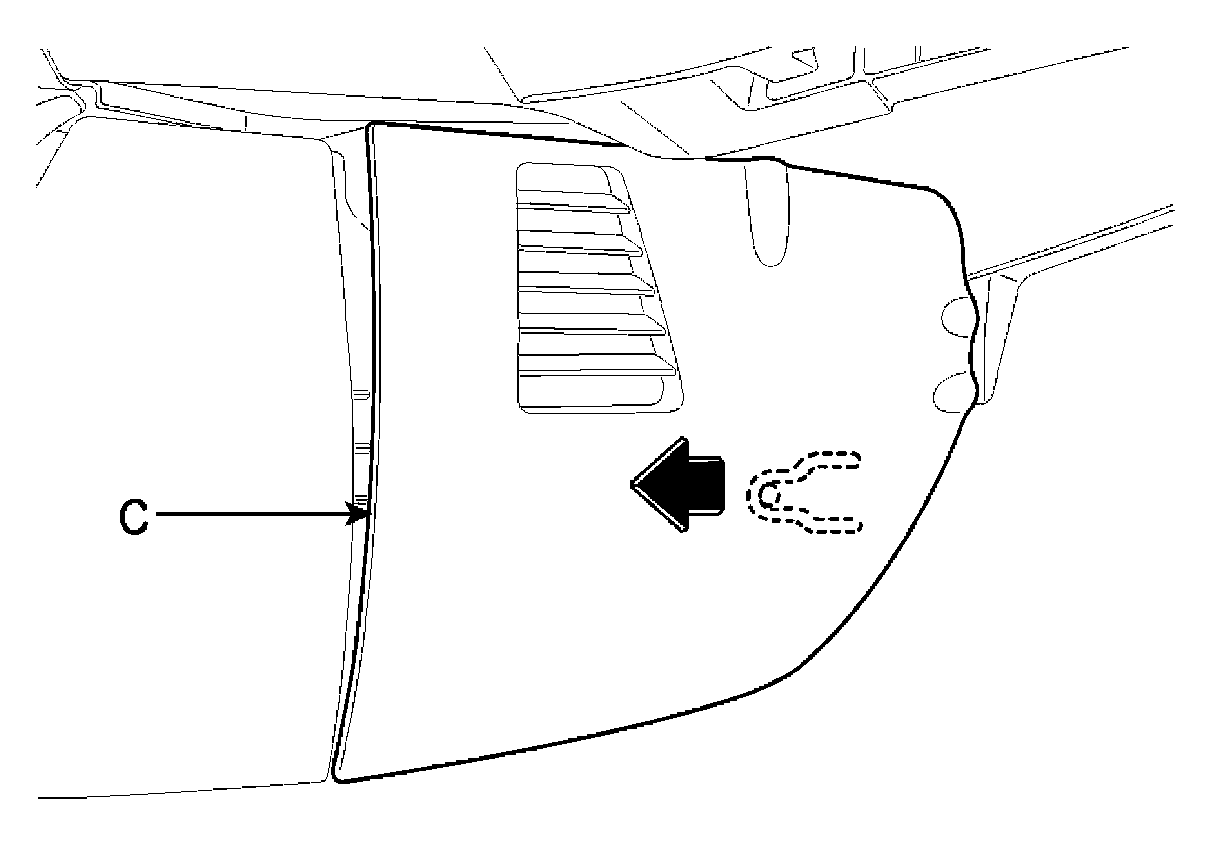

2. Remove the passenger's crush pad lower cover (C).
3. Disconnect the temperature control actuator connector (A).

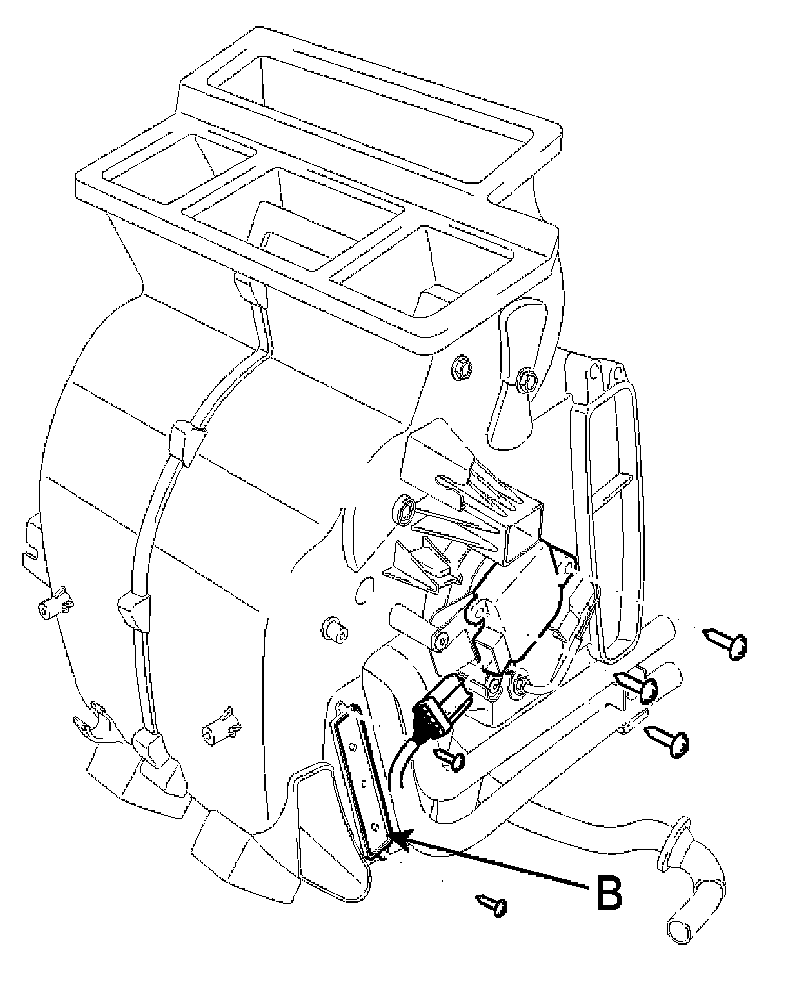

4. Loosen the mounting screw and then remove the temperature control actuator (B).
5. Installation is the reverse order of removal.
