Mode Control Actuator

REPLACEMENT
1. Disconnect the negative (-) battery terminal.

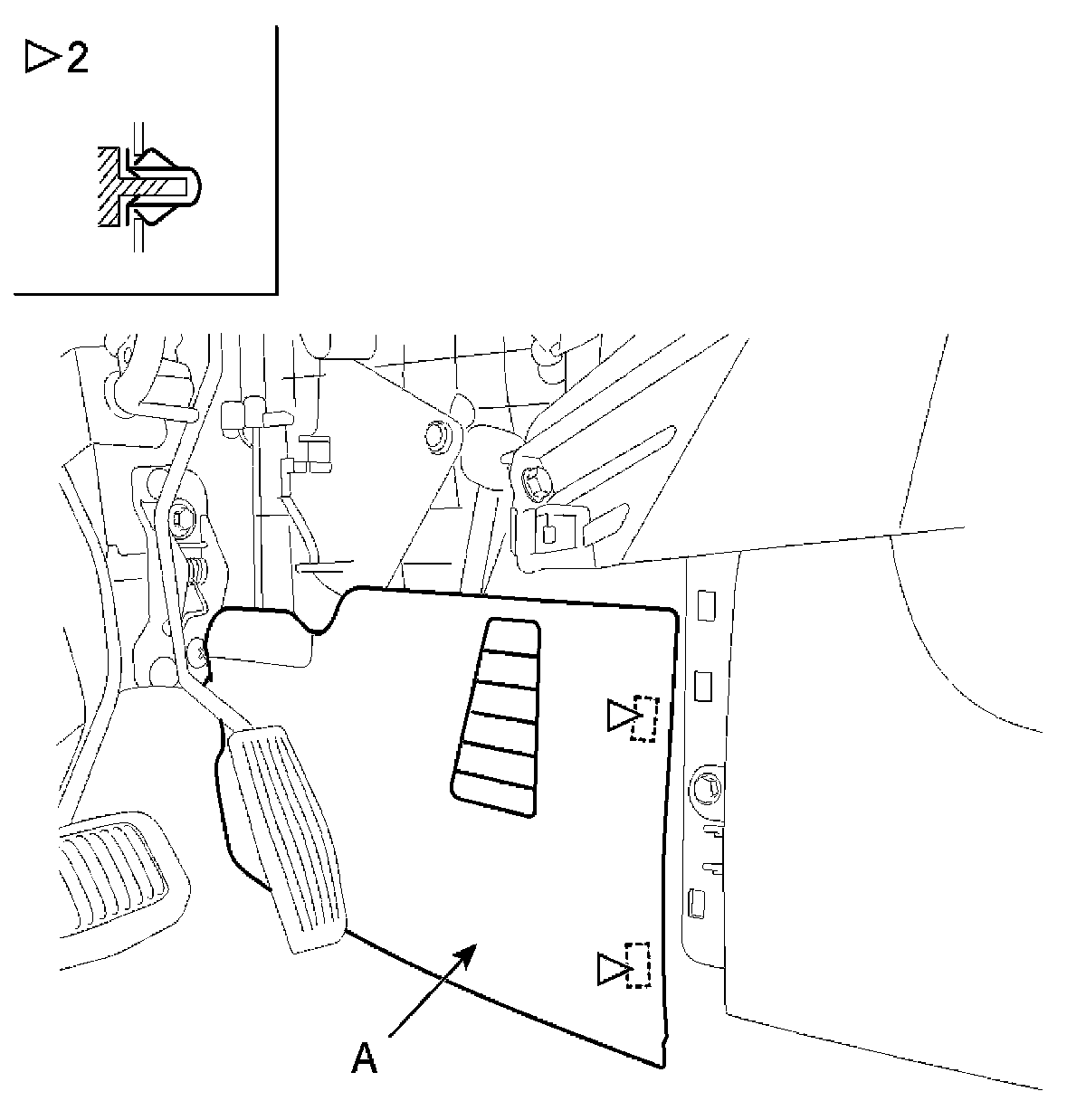

2. Remove the driver's crush pad lower cover (A).

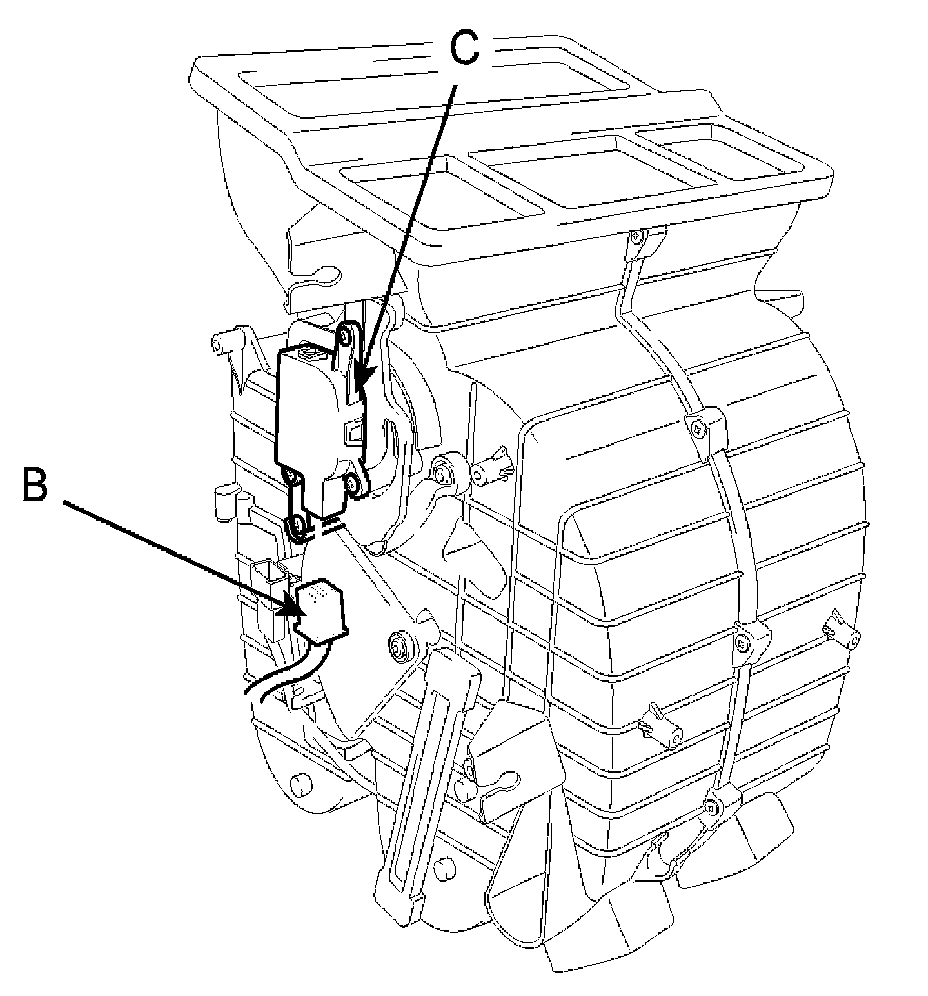

3. Disconnect the mode control actuator connector (B).




4. Loosen the mounting screws and then remove the mode control actuator (C).
5. Installation is the reverse order of removal.
