Power Window Switch With IMS (Integrated Memory System)
Power Window Switch With IMS (Integrated Memory System)

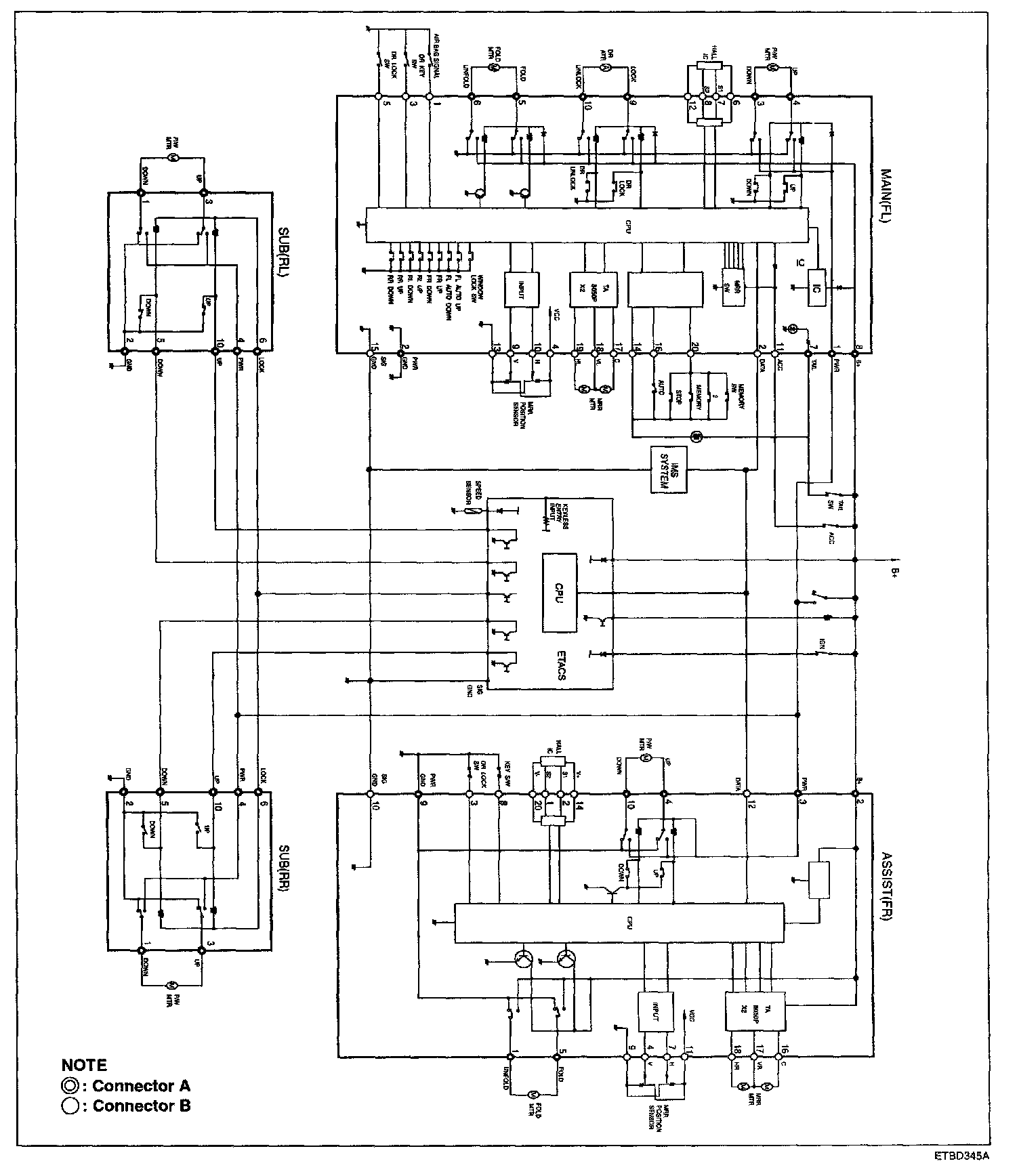

Circuit Diagram (WITH IMS):
