Power Mirror Motor: Testing and Inspection
POWER DOOR MIRROR ACTUATORINSPECTION
1. Disconnect the power door mirror connector from the harness.

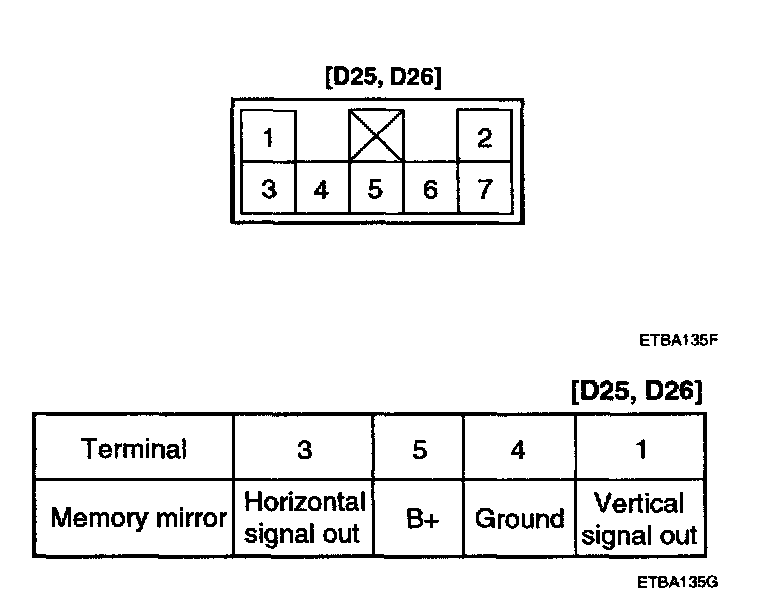

Memory Mirror Control:

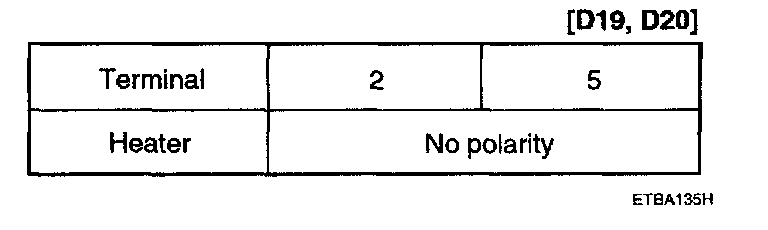

Heater:

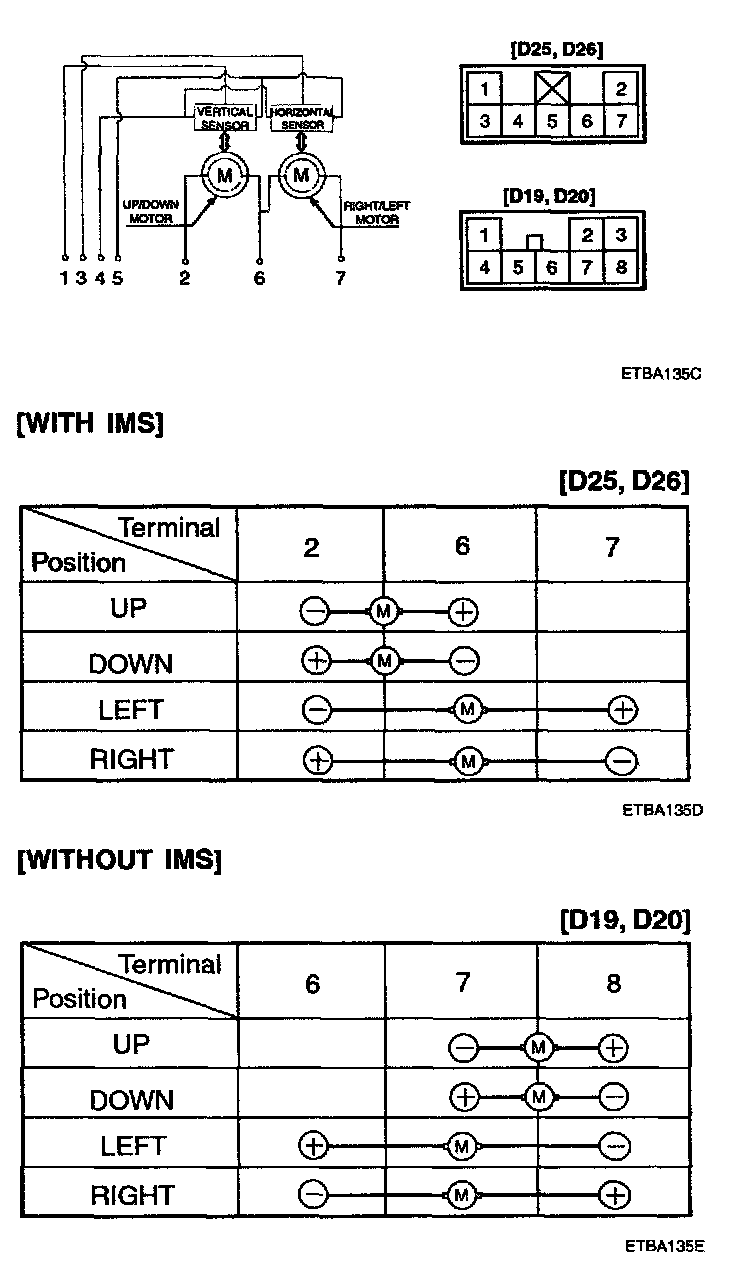

2. Apply battery voltage to each terminal as shown in the table and verify that the mirror operates properly.
