Heating and Air Conditioning
>>
Power Transistor HVAC
Power Transistor HVAC

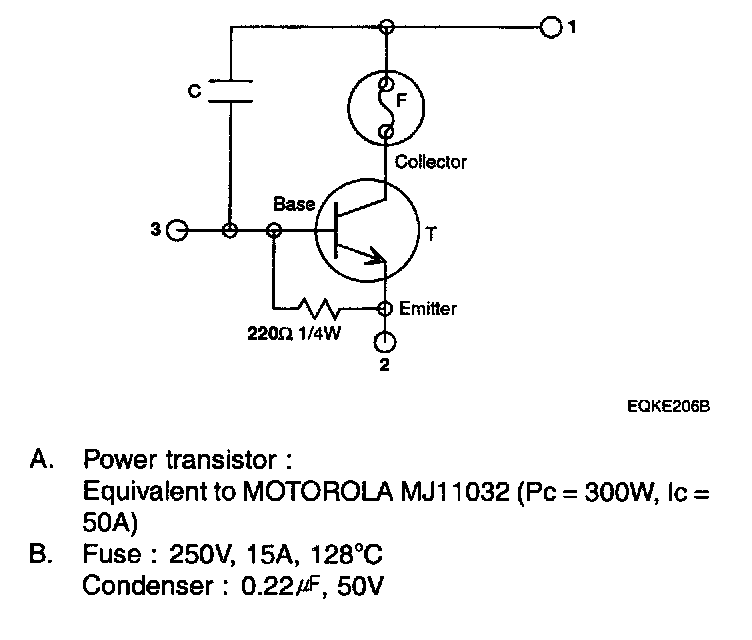

Circuit Diagram And Important Performance Of Parts Composed Circuit:
