Removal

MANUAL TRANSAXLE SHIFT CONTROL





COMPONENTS

REMOVAL
1. Remove the console assembly.
2. Remove the cotter pins and clips (shift lever side).
3. Remove the shin lever assembly.
4. Remove the retainer and bolts.

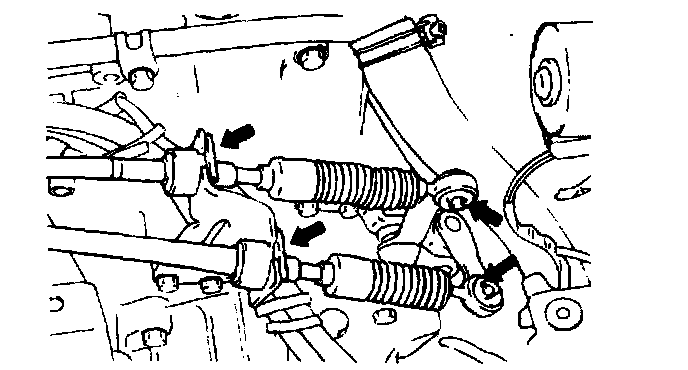

5. Remove the cotter pins and clips (Transaxle side).





6. Remove the shift cable and select cable.
