Disassembly
FRONT LOWER ARMDISASSEMBLY
1. Remove the connector from the lower arm.

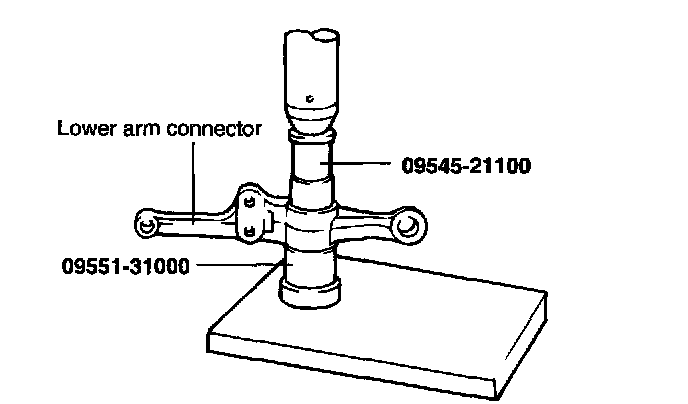

2. Using the special tools (09545-21100, 09551-3100), remove the front lower arm (S) bush.
3. Using the special tool (09624-34000), remove the lower arm (G) bush.
DISASSEMBLY
1. Remove the connector from the lower arm.
2. Using the special tools (09545-21100, 09551-3100), remove the front lower arm (S) bush.
3. Using the special tool (09624-34000), remove the lower arm (G) bush.
