Electrical Diagrams
Electrical Diagrams
CIRCUIT:

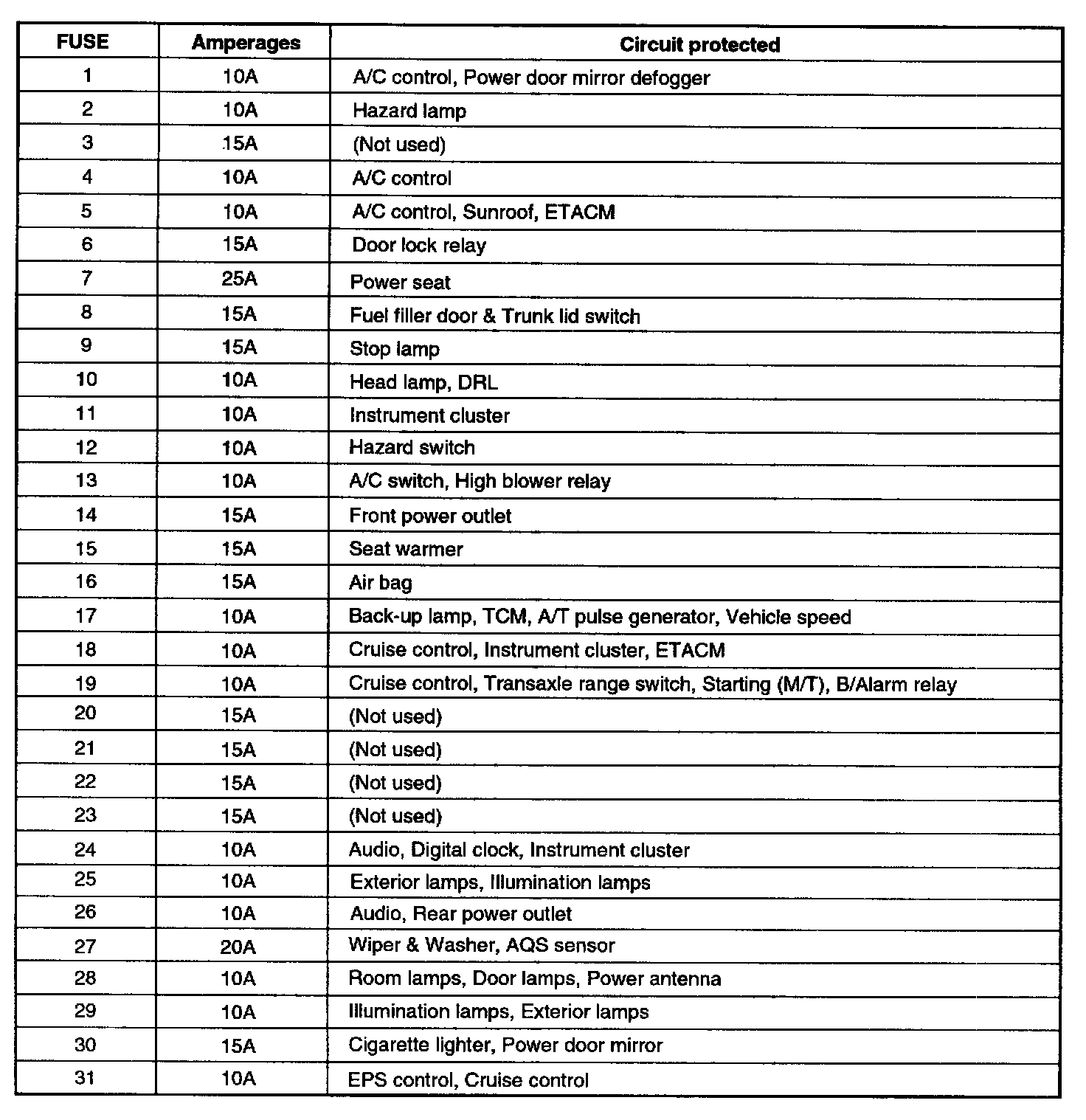

Fuses And Relays - Circuit:

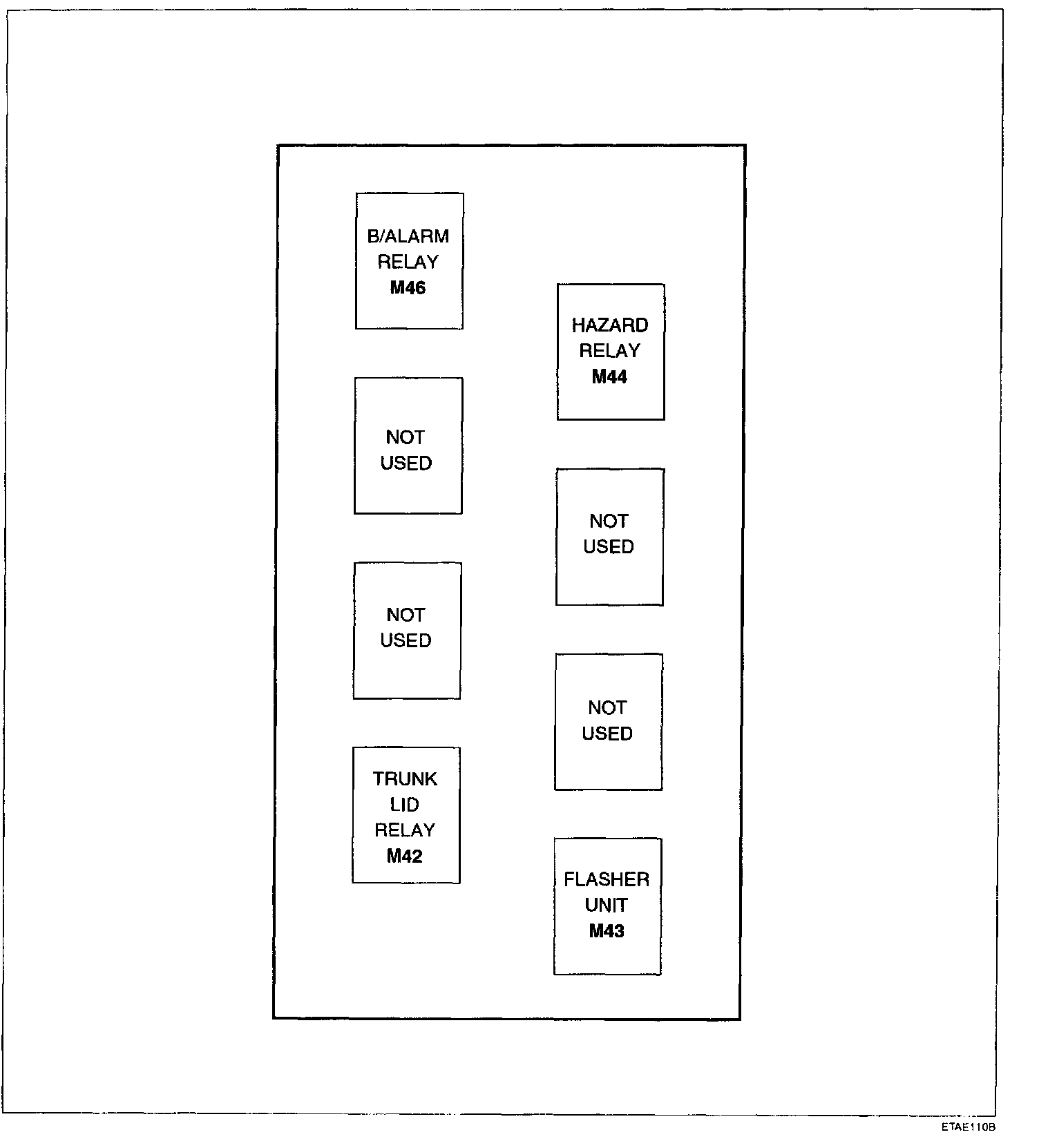

Passenger Compartment Relay Box:
