Home >> Hyundai >> 2005 >> Sonata L4-2.4L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Locations

Fuse Block: Locations

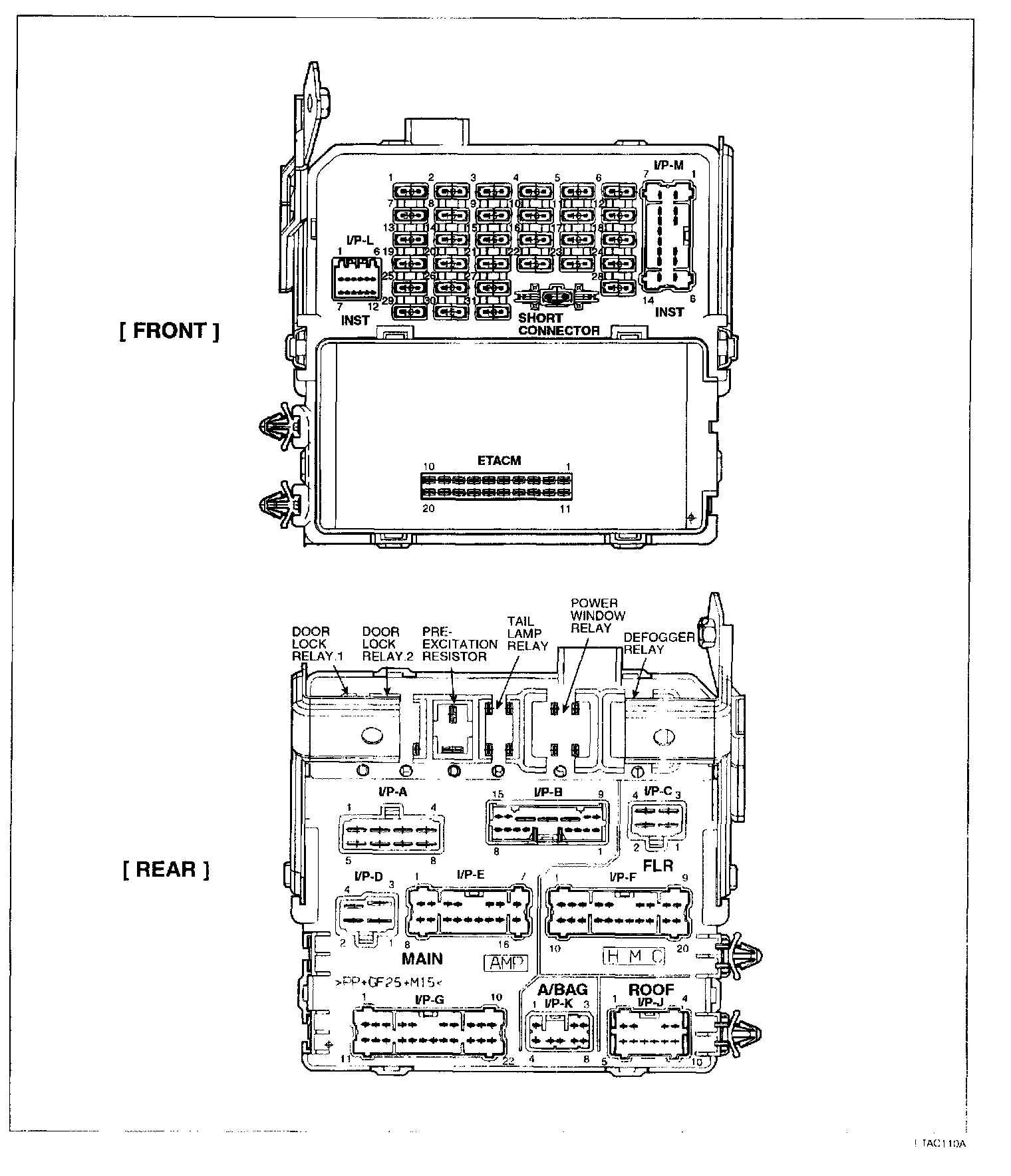

Relay Box (Passenger Compartment):
