Control Assembly, HVAC
>>
Blower and A/C Controls (Automatic)
Blower and A/C Controls (Automatic)

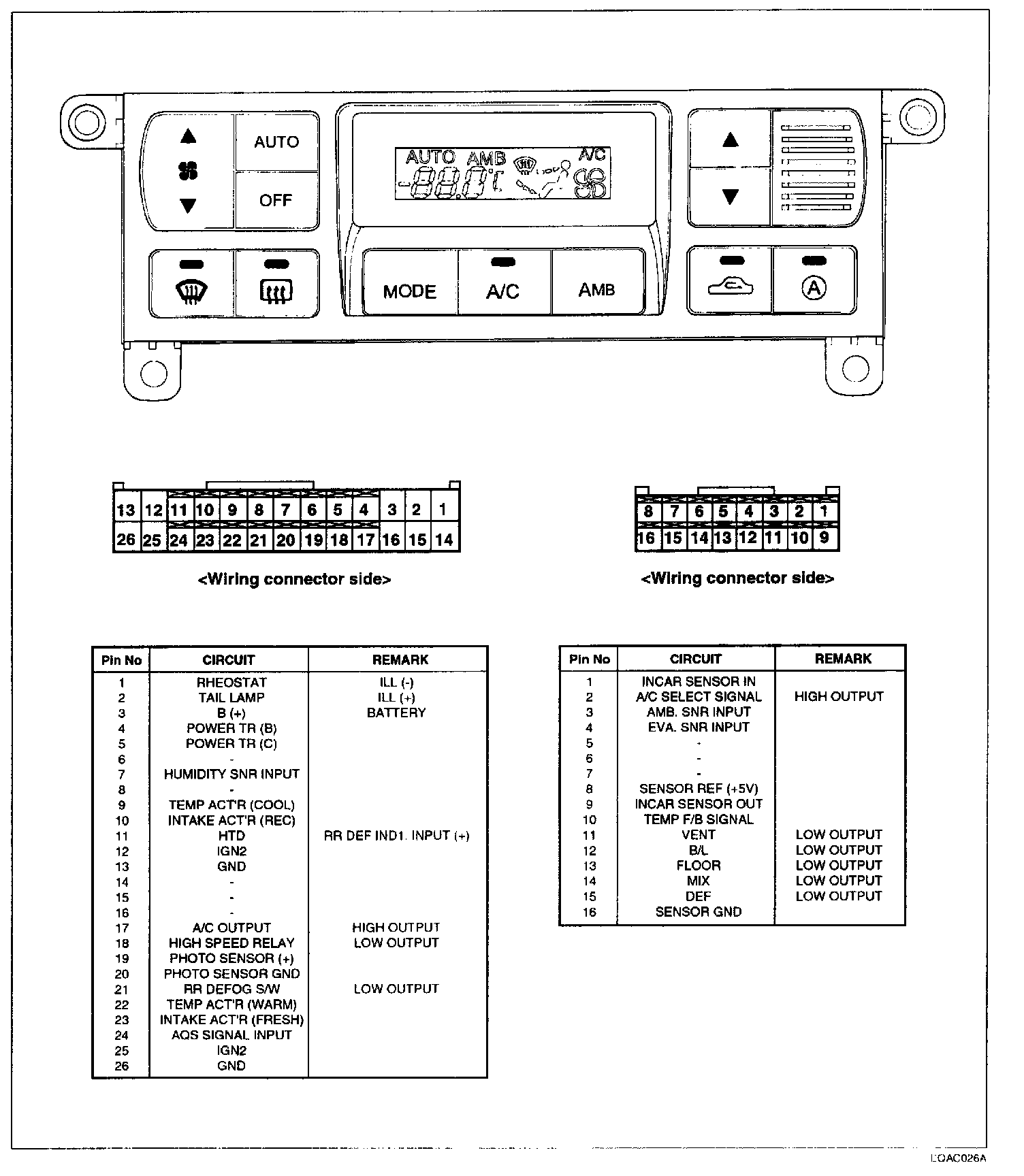

Control Panel:
