Lower Side Moulding / Trim: Service and Repair

BODY SIDE MOULDINGS

REMOVAL AND INSTALLATION

WAIST LINE MOLDING

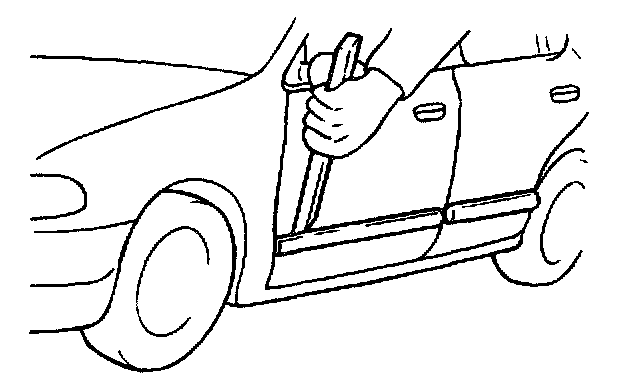

1. Beginning from either end, remove the waistline molding using the special tool (09800-21000) from the front and rear doors.

CAUTION: Take care not to scratch or bend the door moldings.

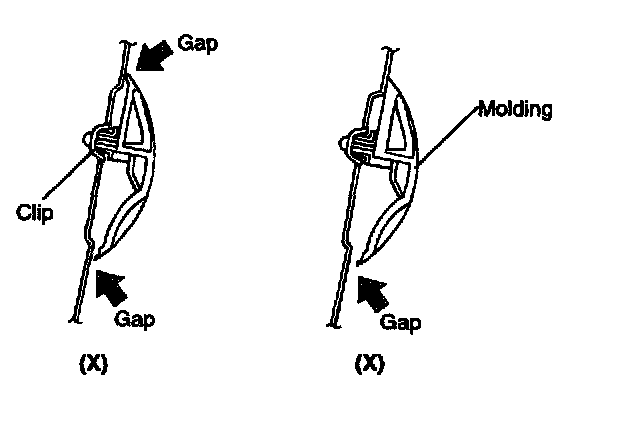

2. In order not to have a gap, install the molding clip securely.
