Transmission Position Sensor/Switch: Testing and Inspection

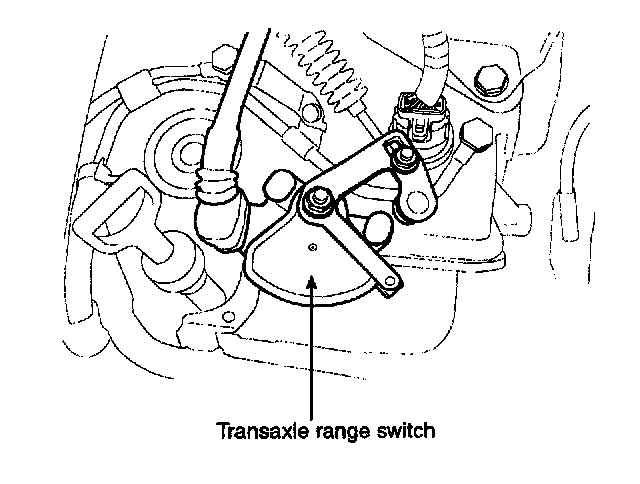

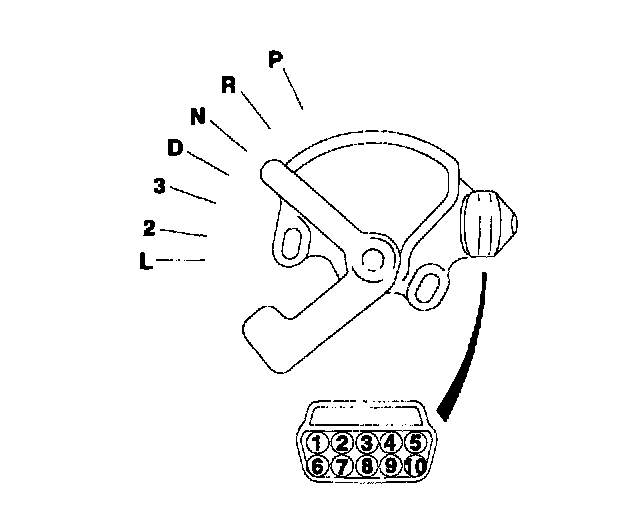

TRANSAXLE RANGE SWITCH CONTINUITY CHECK

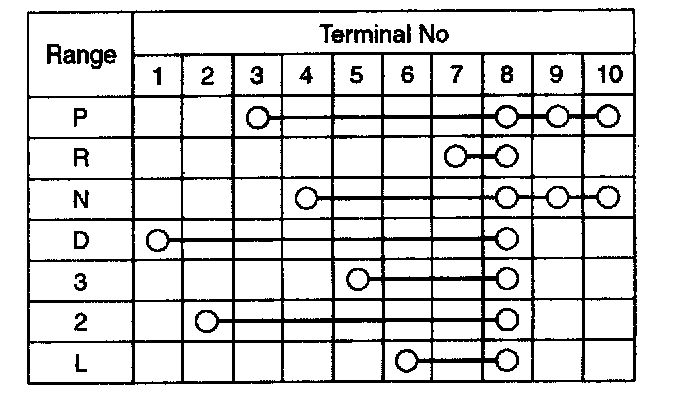

Continuity check
