Replacement of Transaxle Gear Oil

REPLACEMENT OF TRANSAXLE GEAR OIL
USE HP GEAR OIL SAT 75W/90 (API-GL-4)

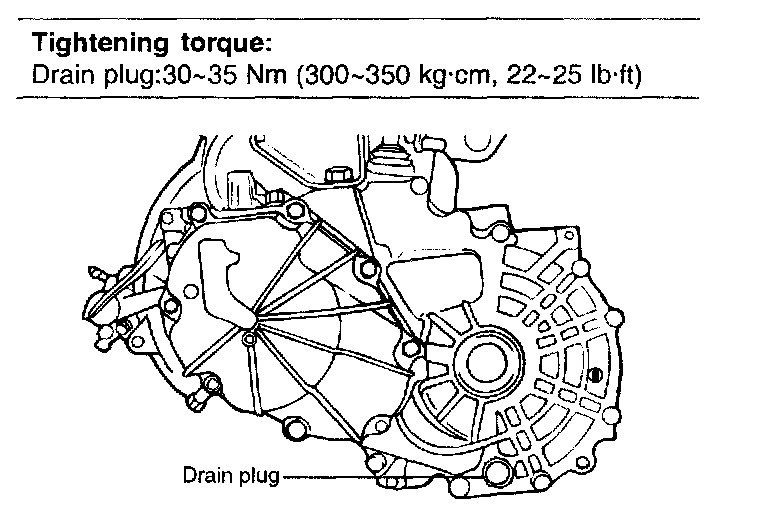

1. With the vehicle parked on a level surface, remove the drain plug and drain the transaxle oil.





2. Replace the gasket with a new one and install the drain plug.

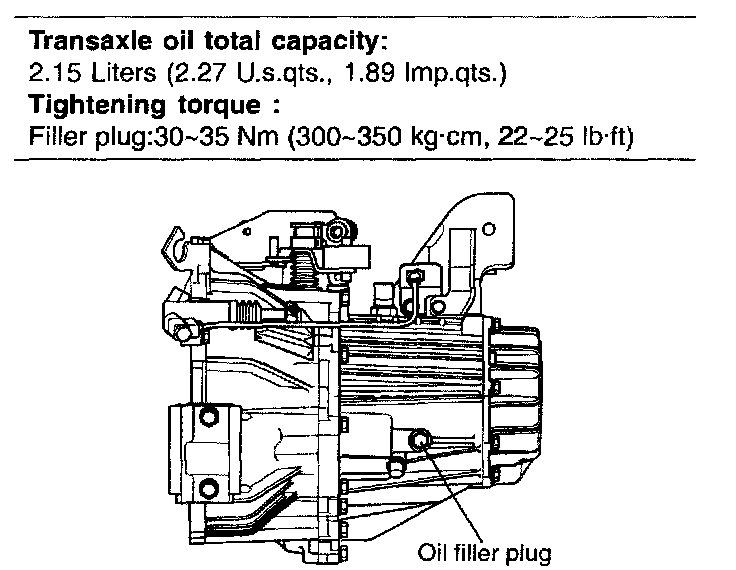

3. Add new oil the through the filler plug, filling to the same level as the opening plug.
