Removal

AUTOMATIC TRANSAXLE SHIFT CONTROL





COMPONENTS

REMOVAL





1. Remove the rear console.





2. Remove the front console.
3. Remove the knob installation screws.





4. Disconnect the overdrive switch connector, remove the 3 connector pins from connector with small driver, and then remove selector knob assembly.





5. Disconnect the position indicator light connector.





6. Remove the shift lever indicator assembly.





7. Remove the cotter pin.

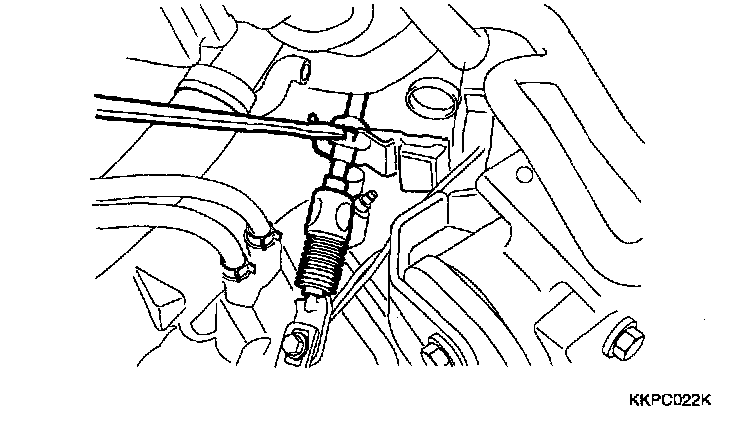

8. Remove the clip from the shift lever side.





9. Remove the bolt-washer assembly located on dash panel.
10. Remove the shift lever assembly.








11. Remove the transaxle control cable assembly.
