Power Steering

POWER STEERING GEAR BOX

REMOVAL
1. Support the specified portion of the vehicle with a lift.
2. Drain the power steering fluid.
3. Remove the front tires (RH/LH).

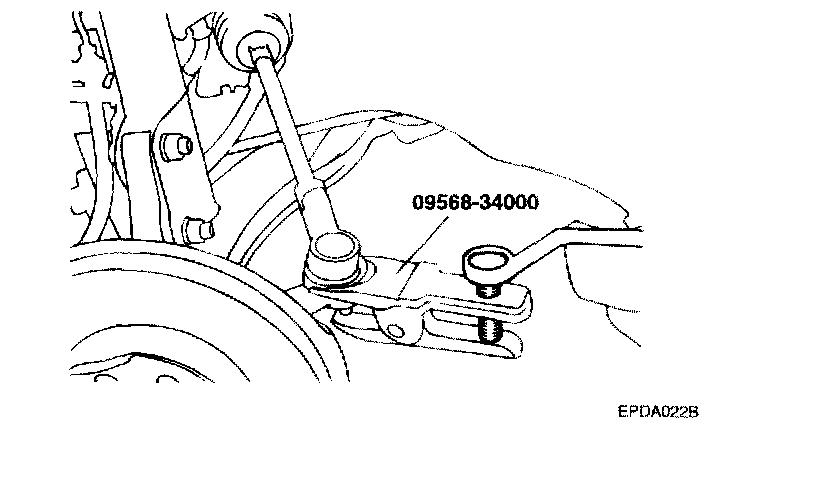

4. After removing the split pin, disconnect the tie rod from the knuckle by using the special tool.

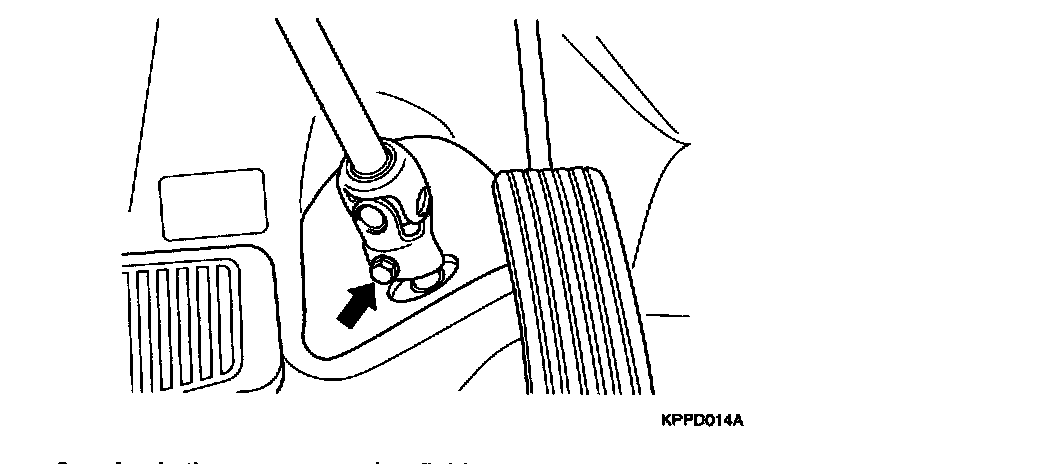

5. Disconnect the steering shaft assembly from the gear box inside the passenger compartment

6. Raise up the vehicle

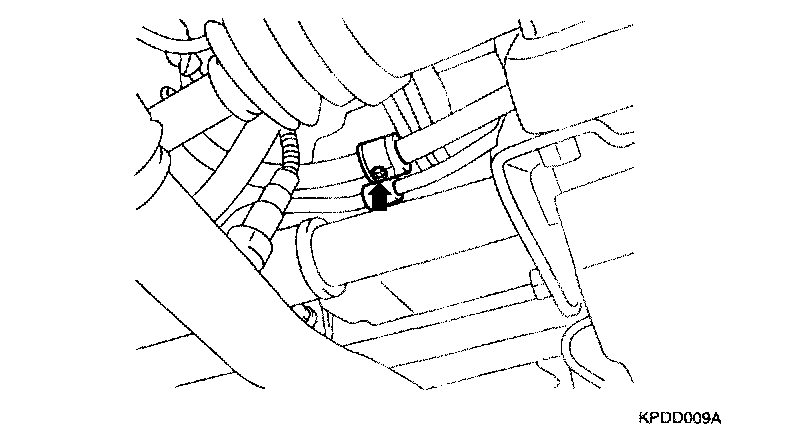

7. Loosen the power steering pressure tube mounting clamp and return tube mounting clamp mounting bolt.

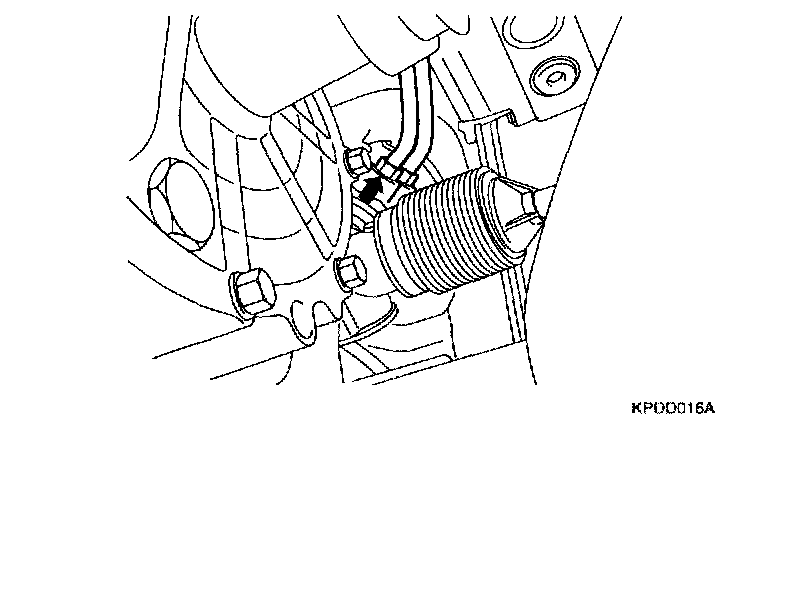

8. Disconnect the pressure tube and return tube fitting from the power steering gear box.

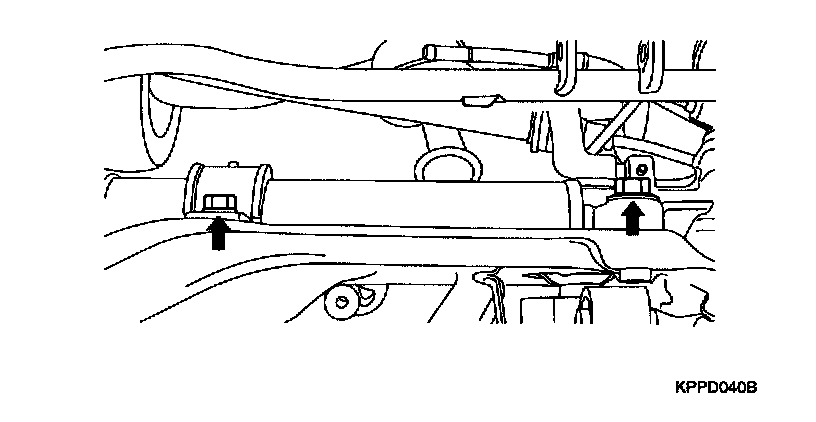

9. Remove the power steering gear box mounting bolt and clamp.

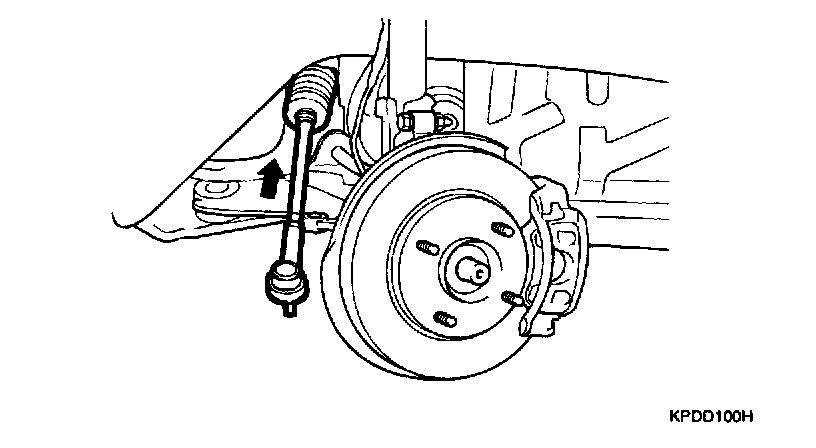

10. Separate the power steering gear box assembly by pulling it toward the rights side of the vehicle.

INSTALLATION
1. Push in the power steering gear box assembly in the right side of the vehicle.

2. Fix the power steering gear box to the crossmember.

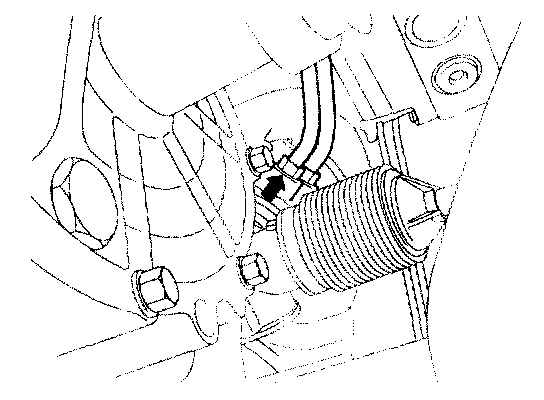

3. Install the pressure tube and return tube fitting to the power steering gear box.

4. Fix the power steering pressure hose and return tube mounting clamp with the bolt.

5. Slowly lower the vehicle.

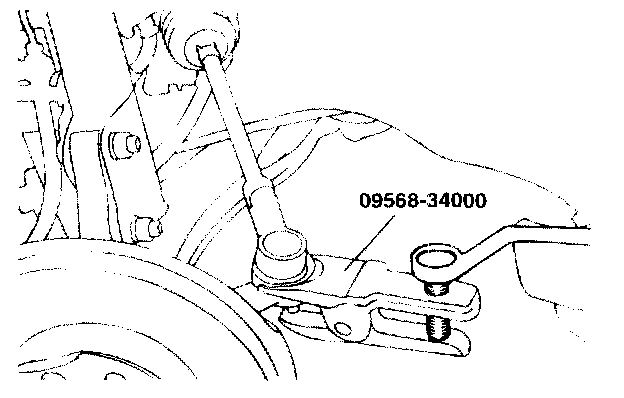

6. Connect the tie rod to the knuckles (RH/LH)
7. Install the tires (RH/LH)

8. Connect the steering shaft to the driver side gear box.
9. Apply the power steering fluid.
10. Bleed the air.
