Manual Steering

MANUAL STEERING GEAR BOX

REMOVAL

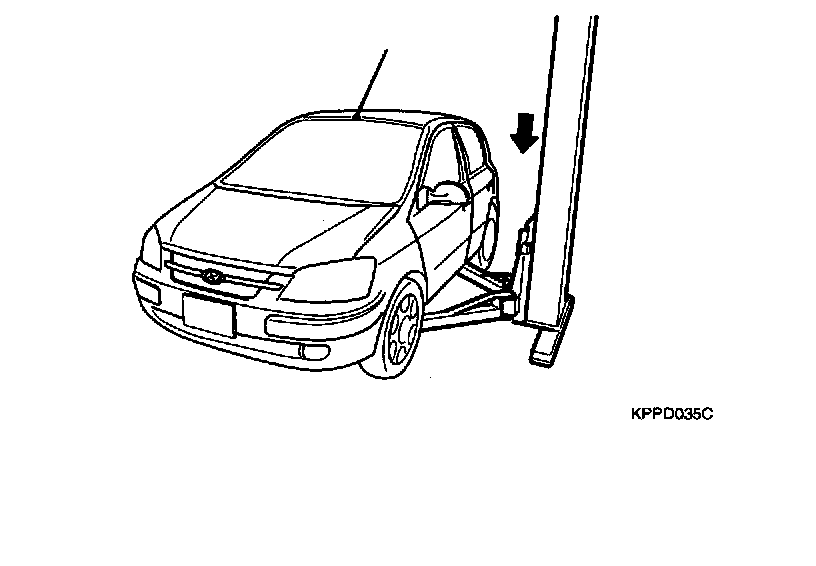

1. Support the specified point of the vehicle with a lift
2. Remove the front tires (RH/LH).

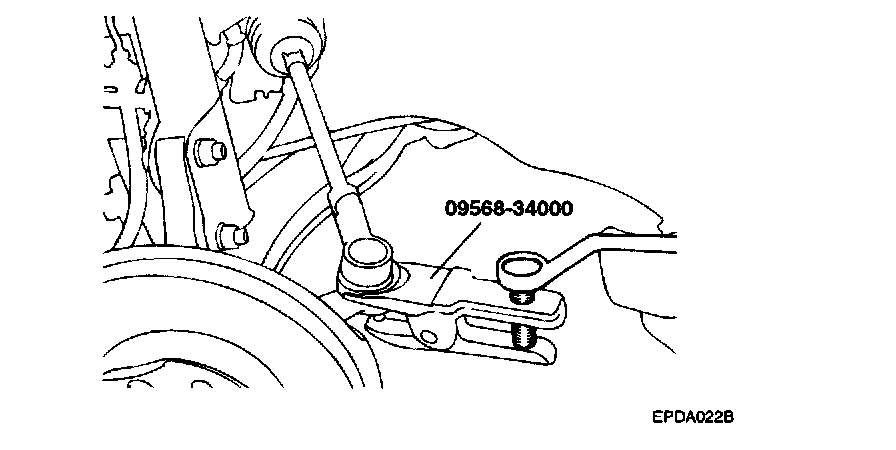

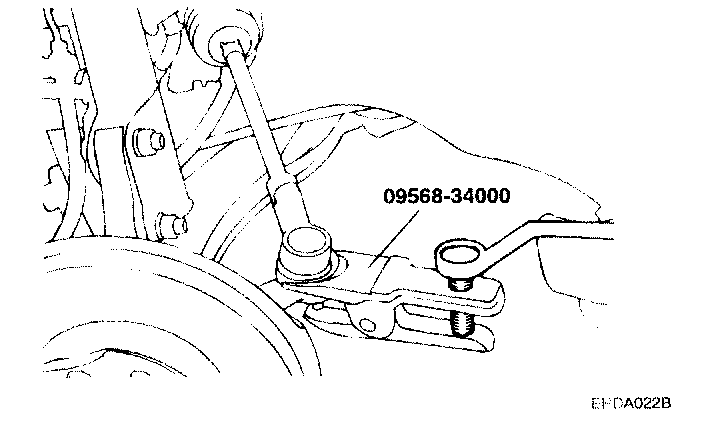

3. After removing the split pin, disconnect the tie rod from the knuckle by using the special tool.

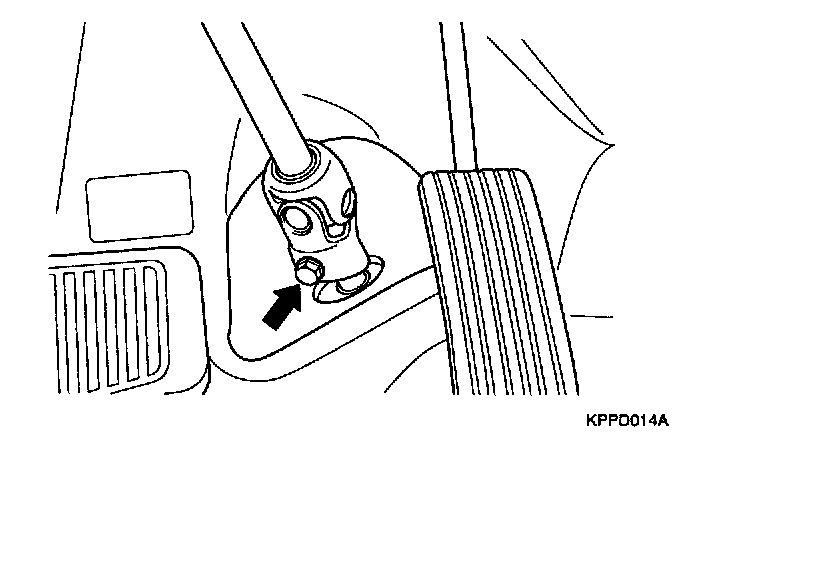

4. Disconnect the shaft assembly from the gear box inside the passenger compartment.

5. Raise up the vehicle

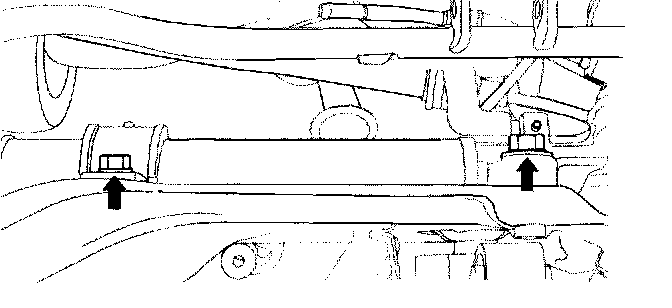

6. Remove the manual steering gear box mounting bolt and clamp.

7. Separate the manual steering gear box assembly by pulling it toward the right side of the vehicle.

INSTALLATION
1. Install the manual steering gear box assembly by inserting it from the right side.

2. Fix the manual steering gear box to the crossmember.

3. Lower the vehicle.

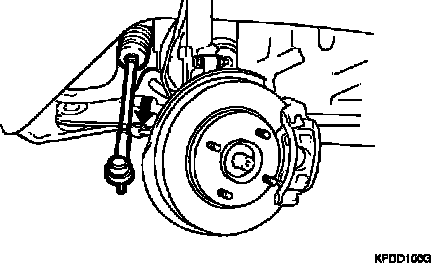

4. Connect the tie rod to the LH/RH knuckles.
5. Install the tires (LH/RH).

6. Connect the steering shaft assembly to the gear box in the passenger compartment.
