Schematic Diagrams (From ETM)

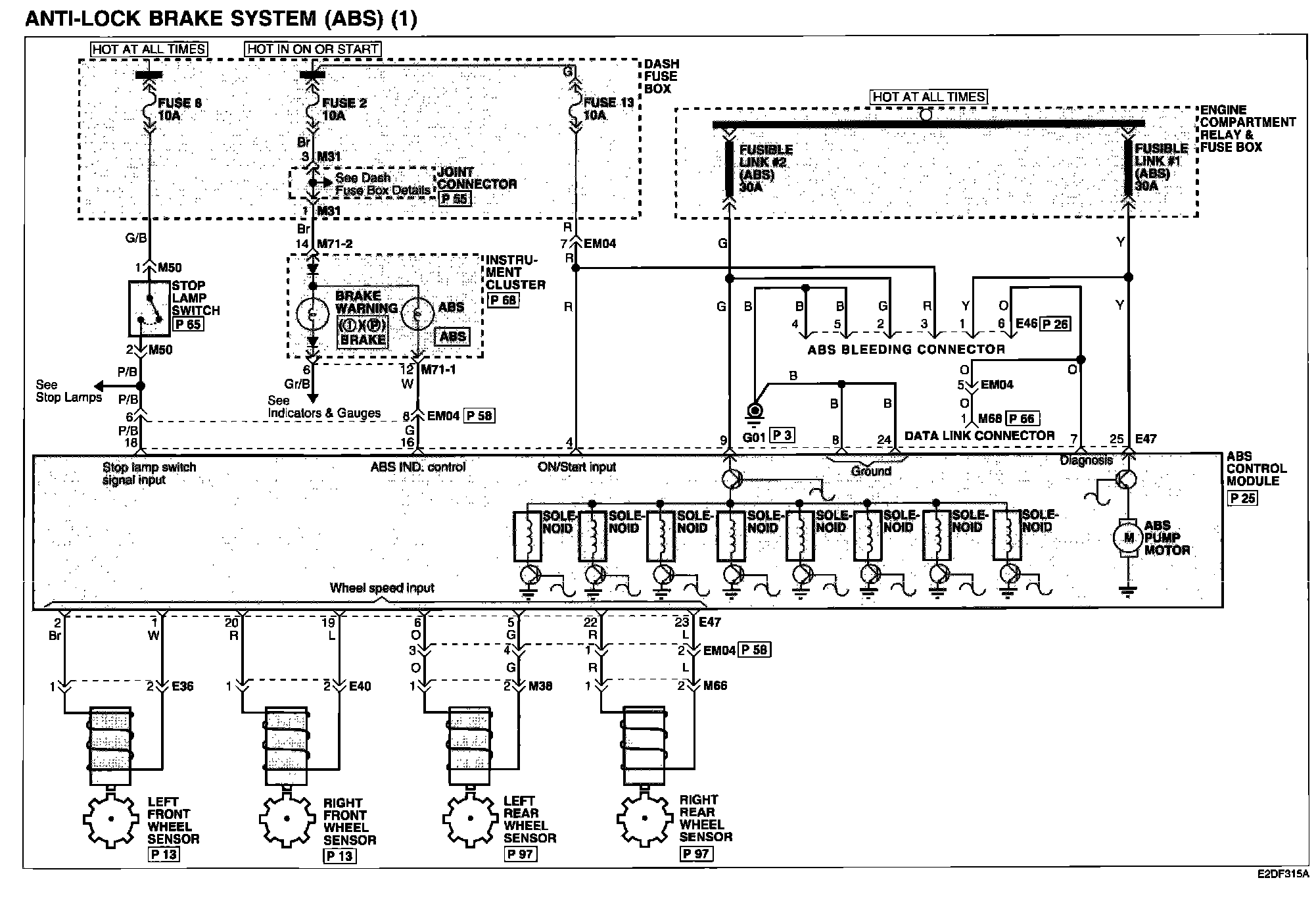

Anti-Lock Brake System (ABS) (1):

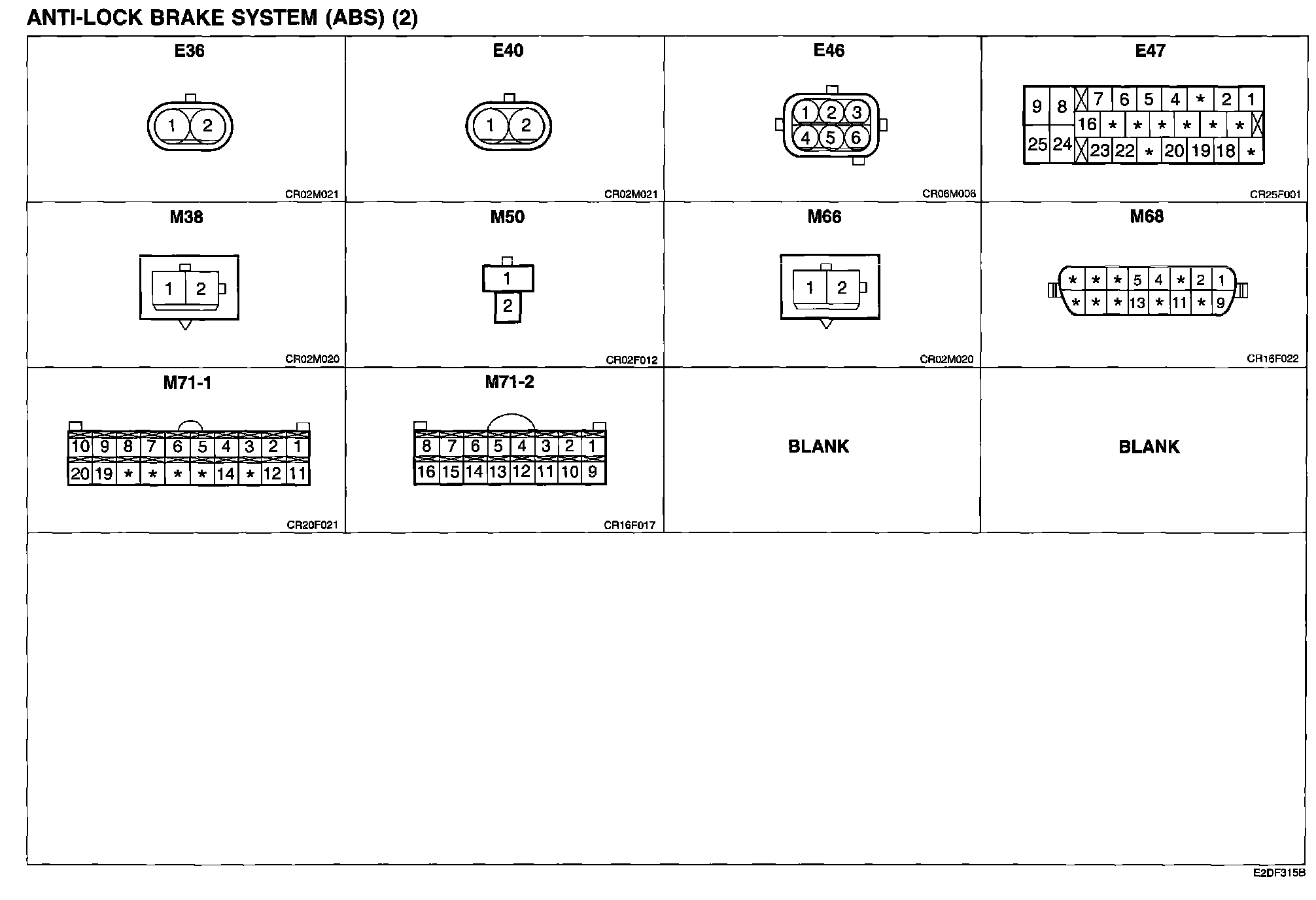

Anti-Lock Brake System (ABS) (2) Connector Pin Outs:

Locations: Location photographs (references to PHOTOS) referred to within these diagrams can be found at the vehicle level under Locations by Photo Number. Component Locations

Connector Views: The Connector Pin Out Views for connectors shown on these diagrams can be found on the Connector Pin Out images that follow most sets of system diagrams.
