P0722

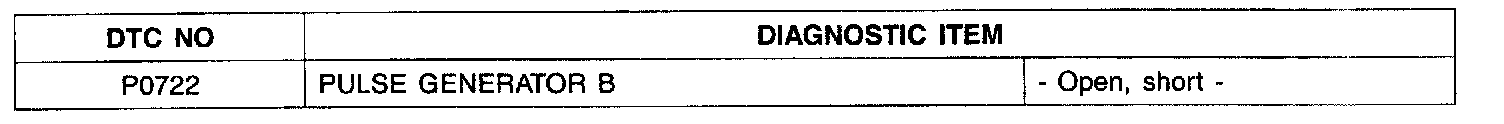

DESCRIPTION
^ Detects number of revolutions of the transfer driven gear to monitor vehicle speed.

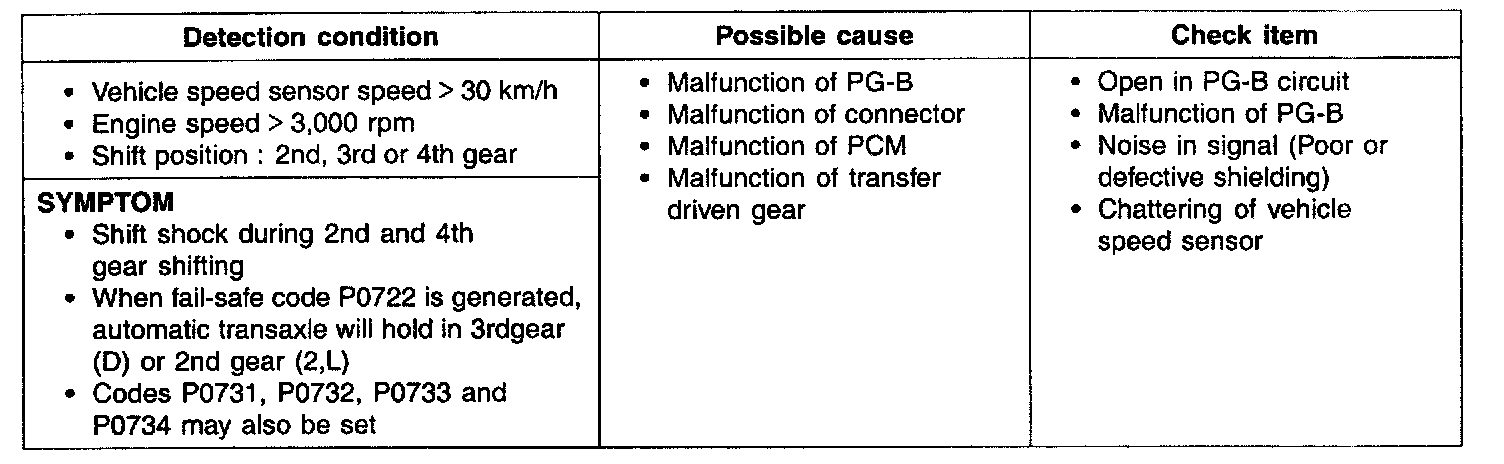

TROUBLESHOOTING FLOW

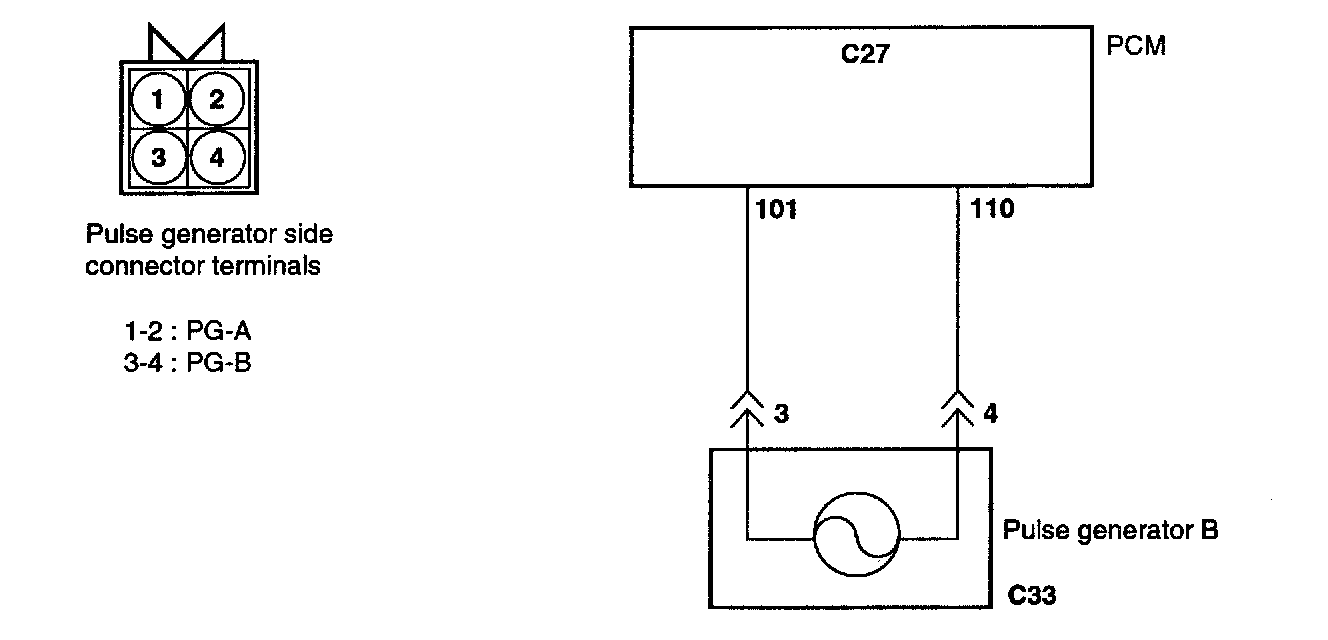

CIRCUIT DIAGRAM
