Home
>>
Hyundai
>>
2004
>>
Tiburon V6-2.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Manual Transmission/Transaxle
Manual Transmission/Transaxle
MANUAL TRANSAXLE SHIFT CONTROL COMPONENTS

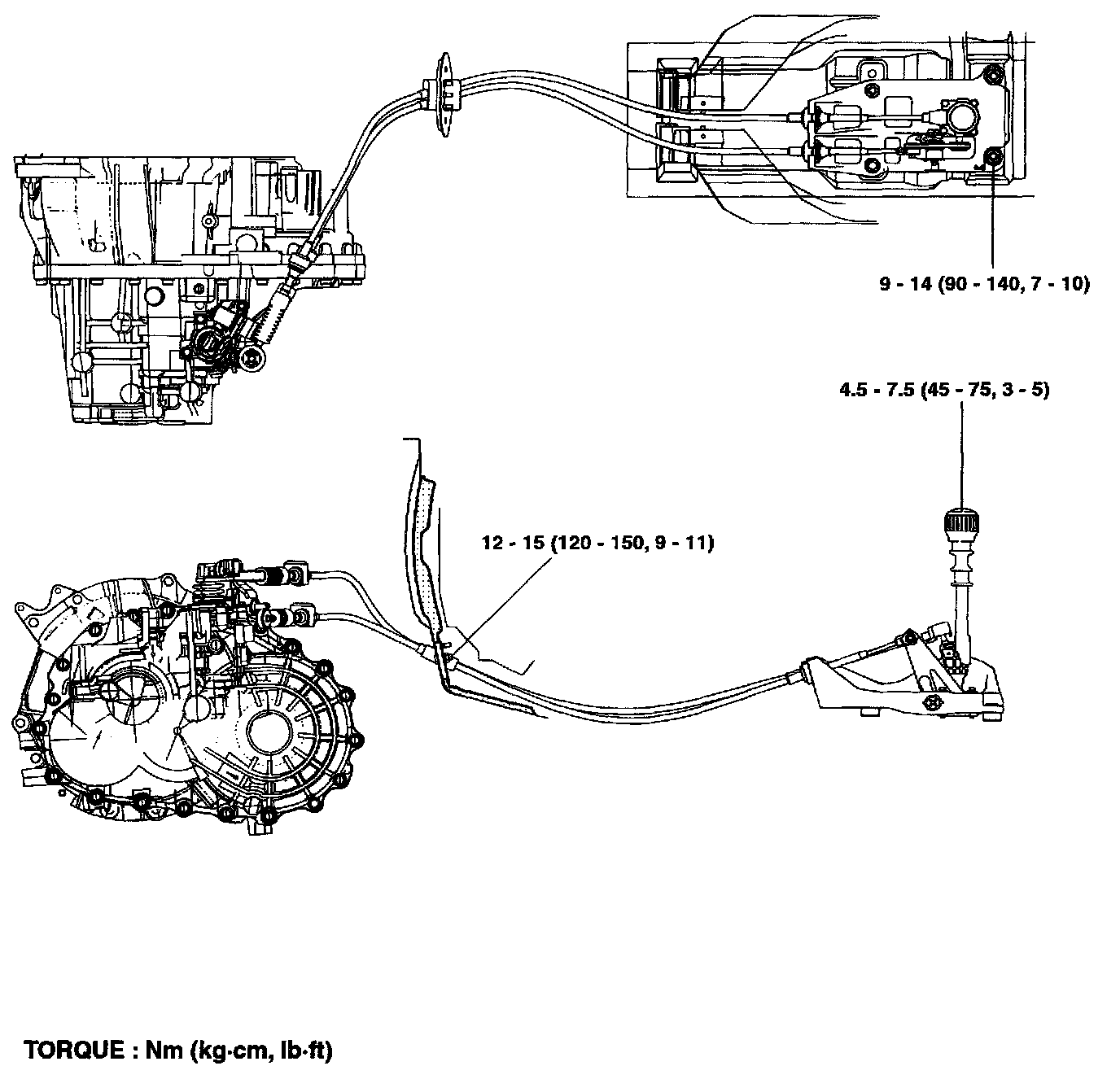

5-SPEED M/T

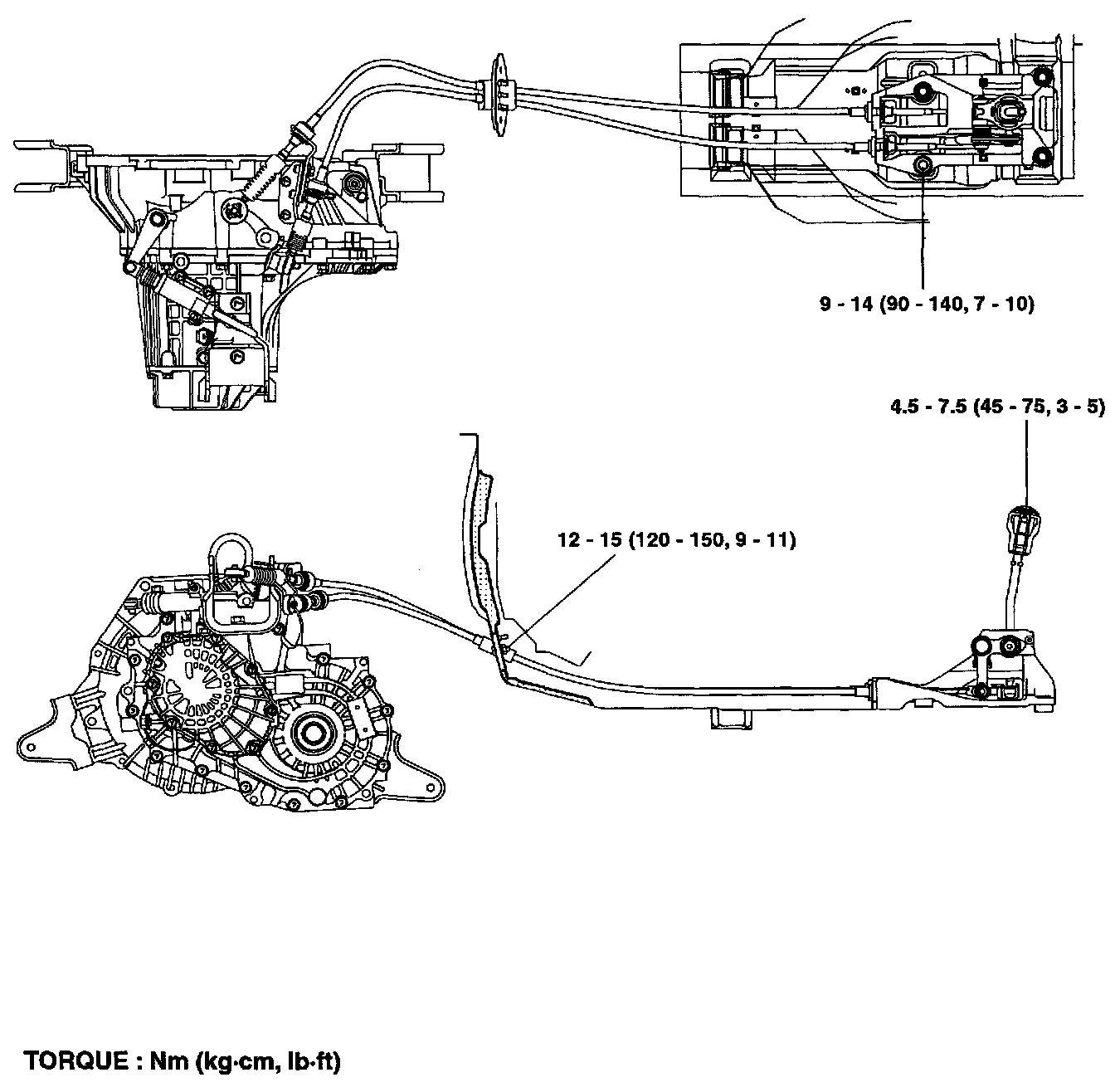

6-SPEED M/T
