Air Bag Control Module
Air Bag Control Module

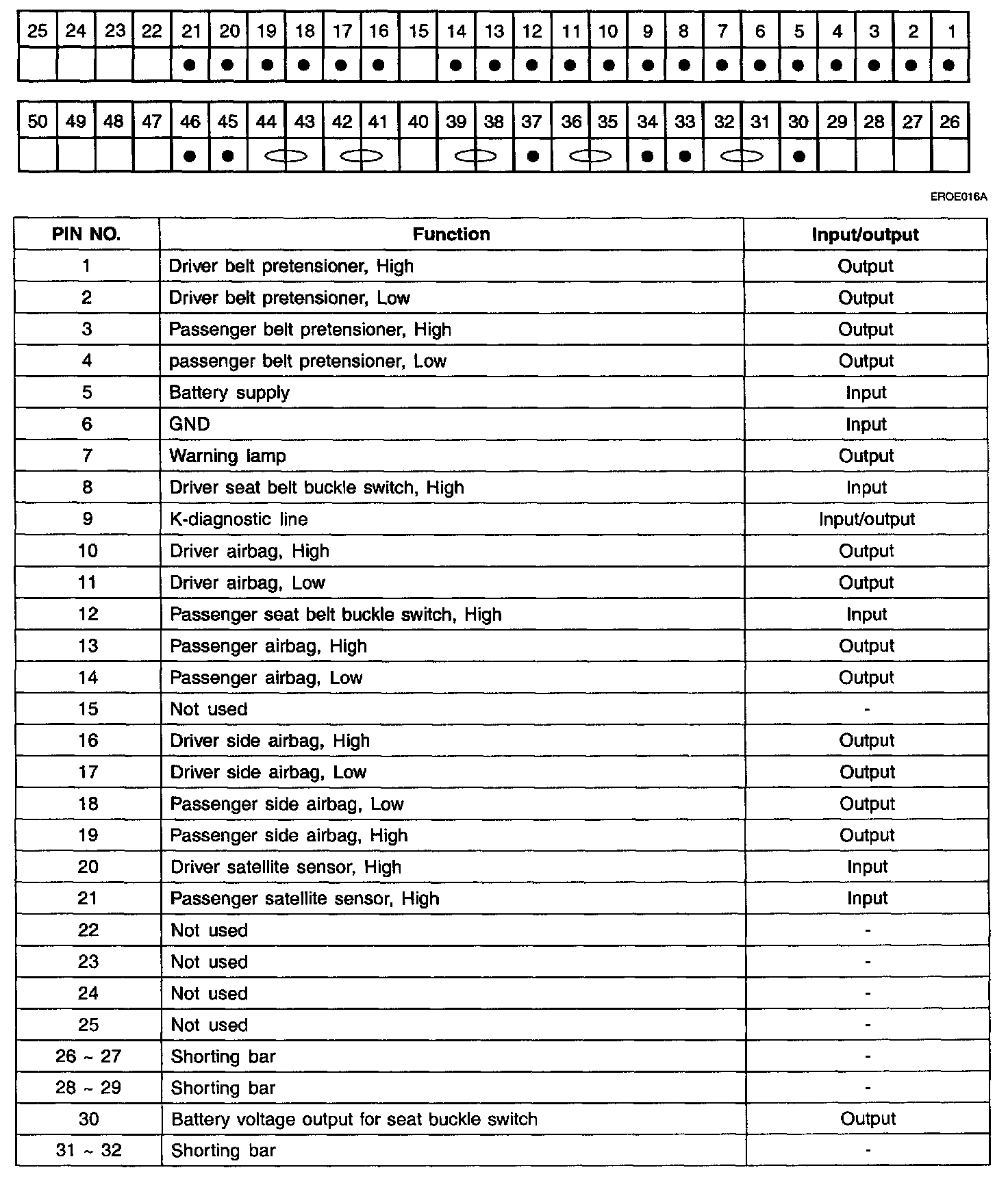

SRSCM Connector DAB+PAB+SAB+BPT Pin 1-32:

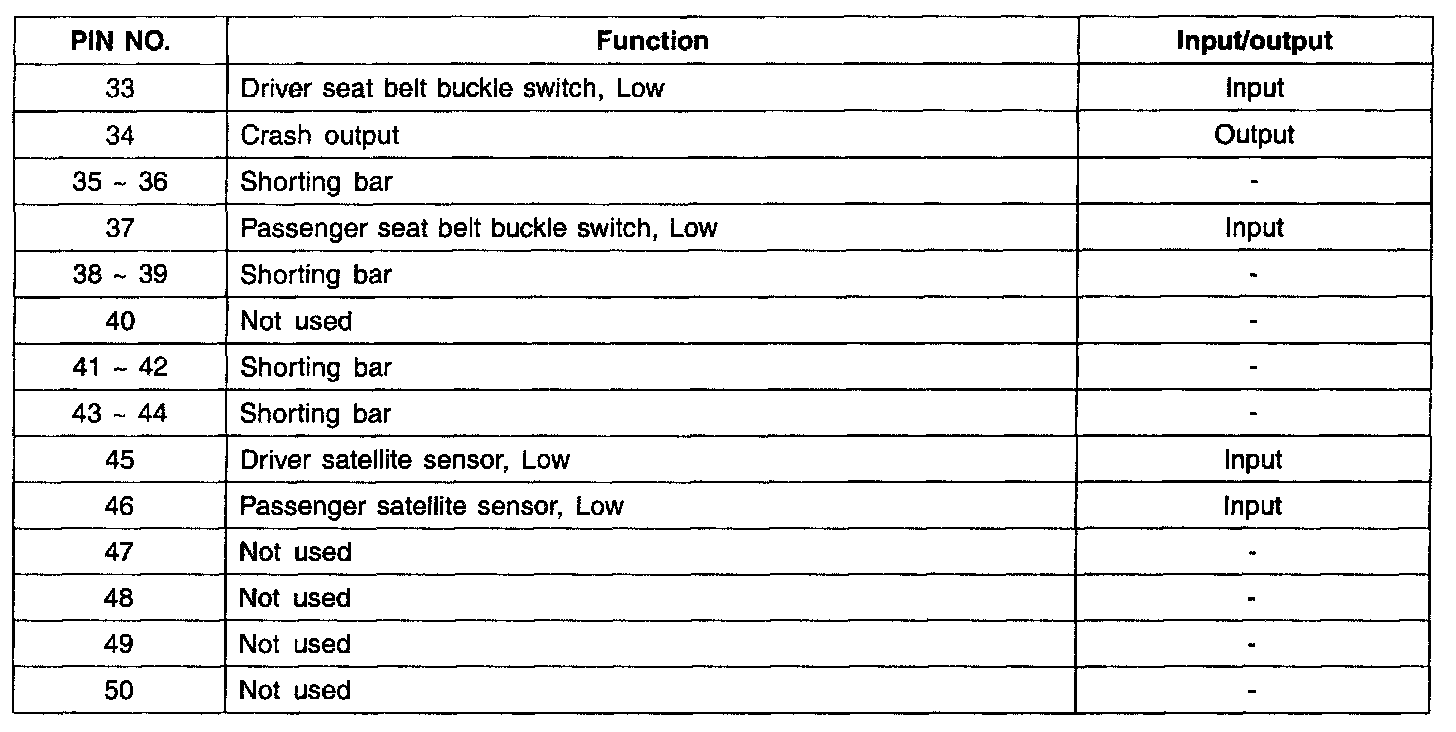

SRSCM Connector DAB+PAB+SAB+BPT Pin 33-50:
