Home >> Hyundai >> 2004 >> Tiburon L4-2.0L >> Repair and Diagnosis >> Diagrams >> Fluid Diagrams >> Automatic Transmission/Transaxle

Automatic Transmission/Transaxle

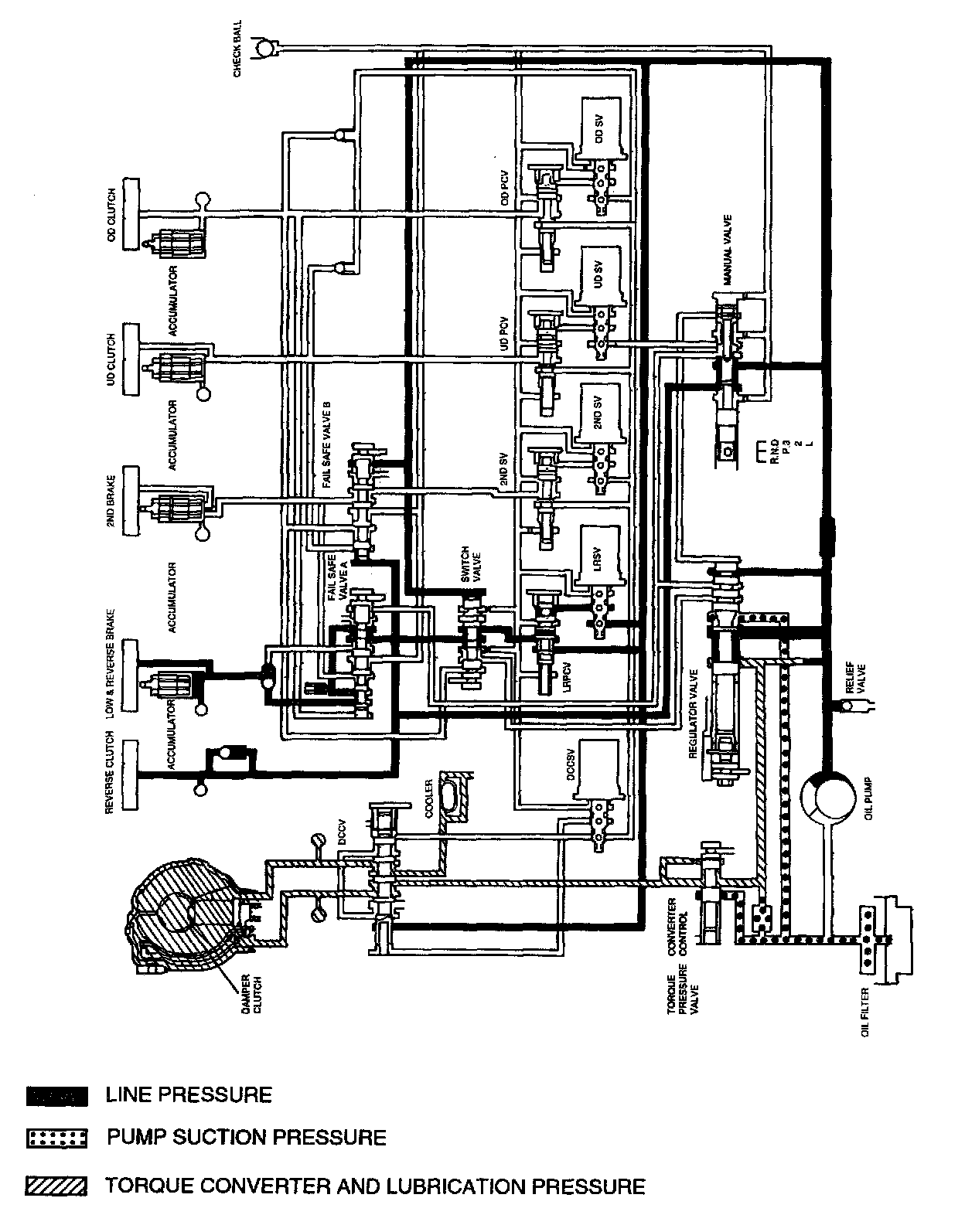

PARK & NEUTRAL

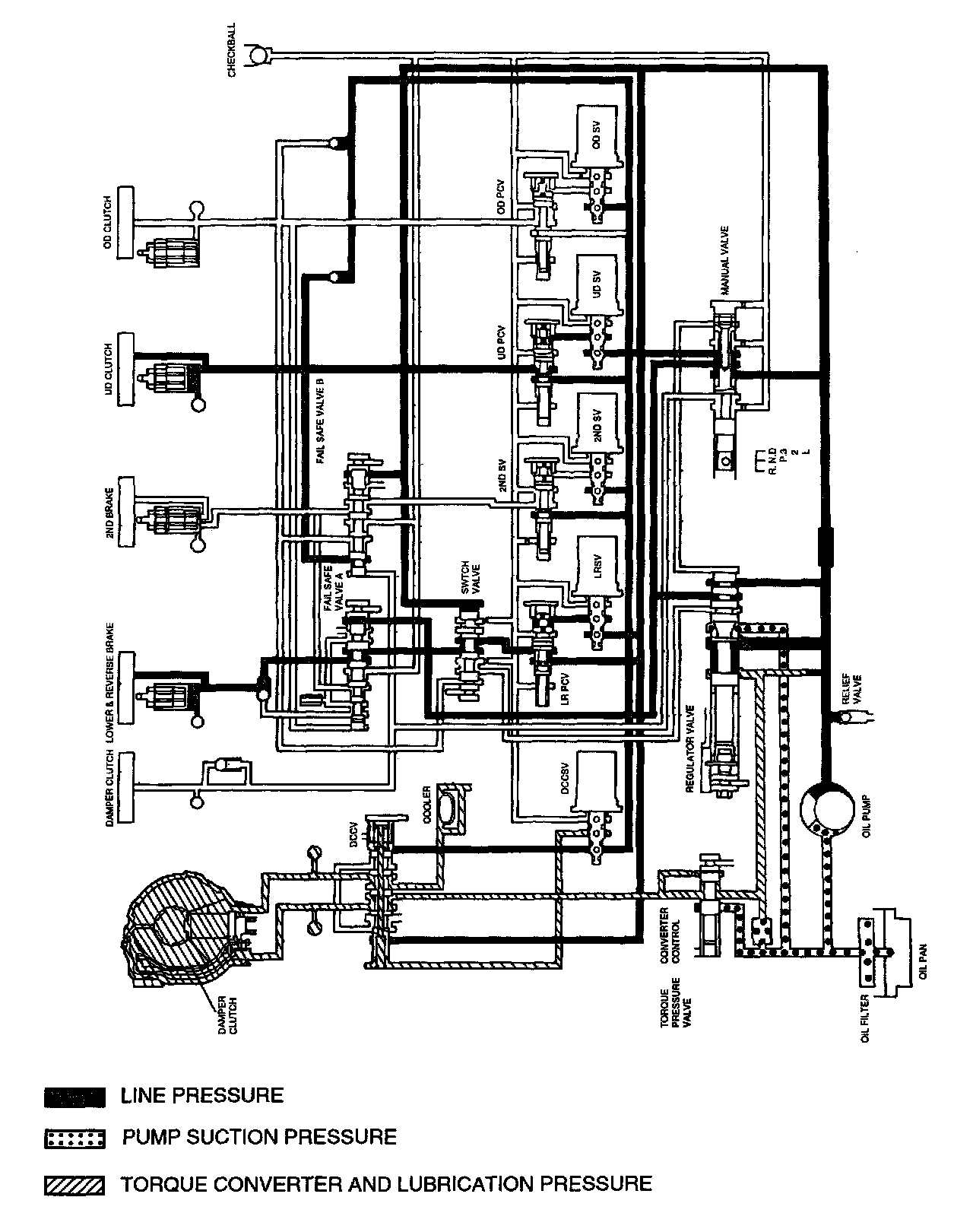

FIRST

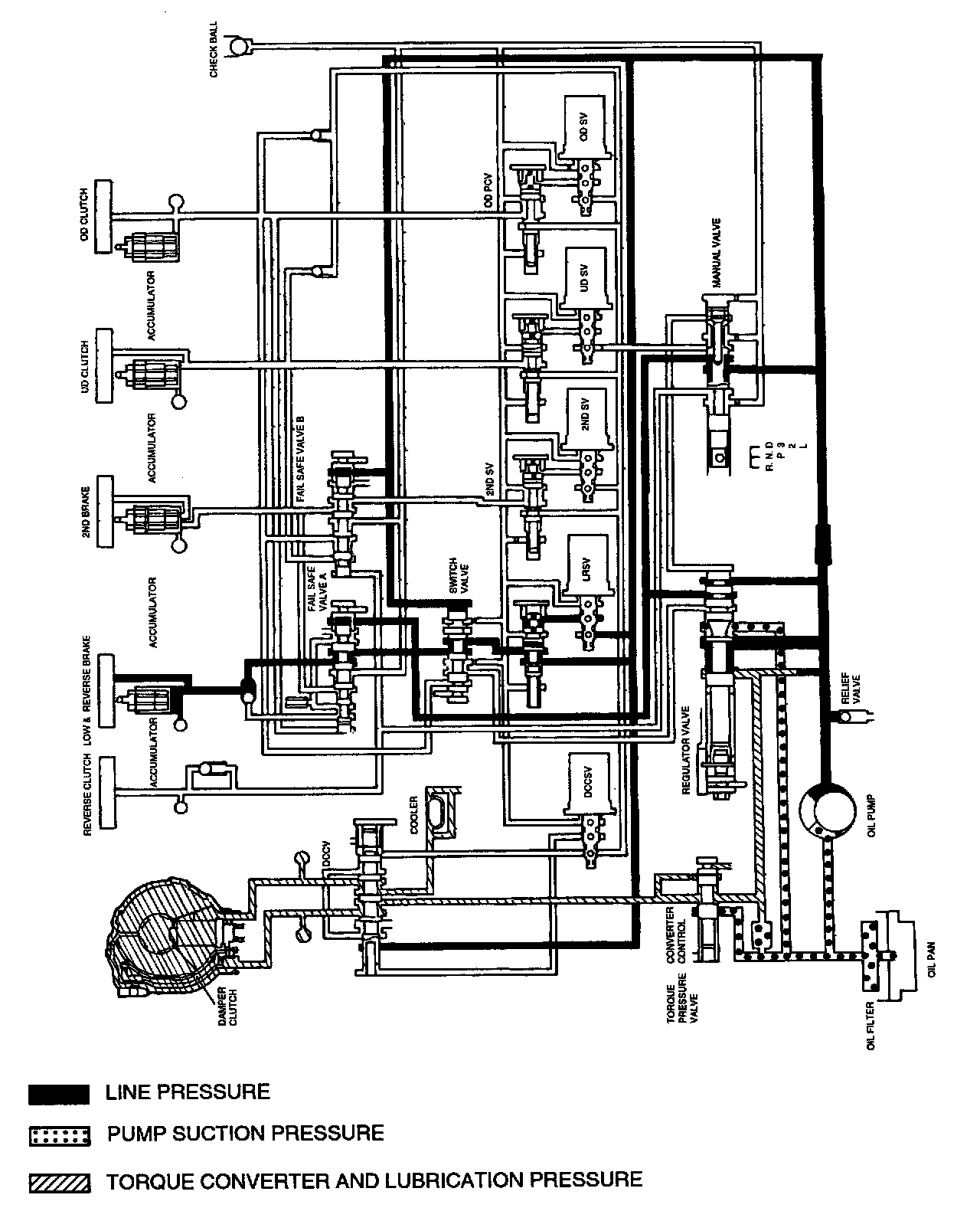

SECOND

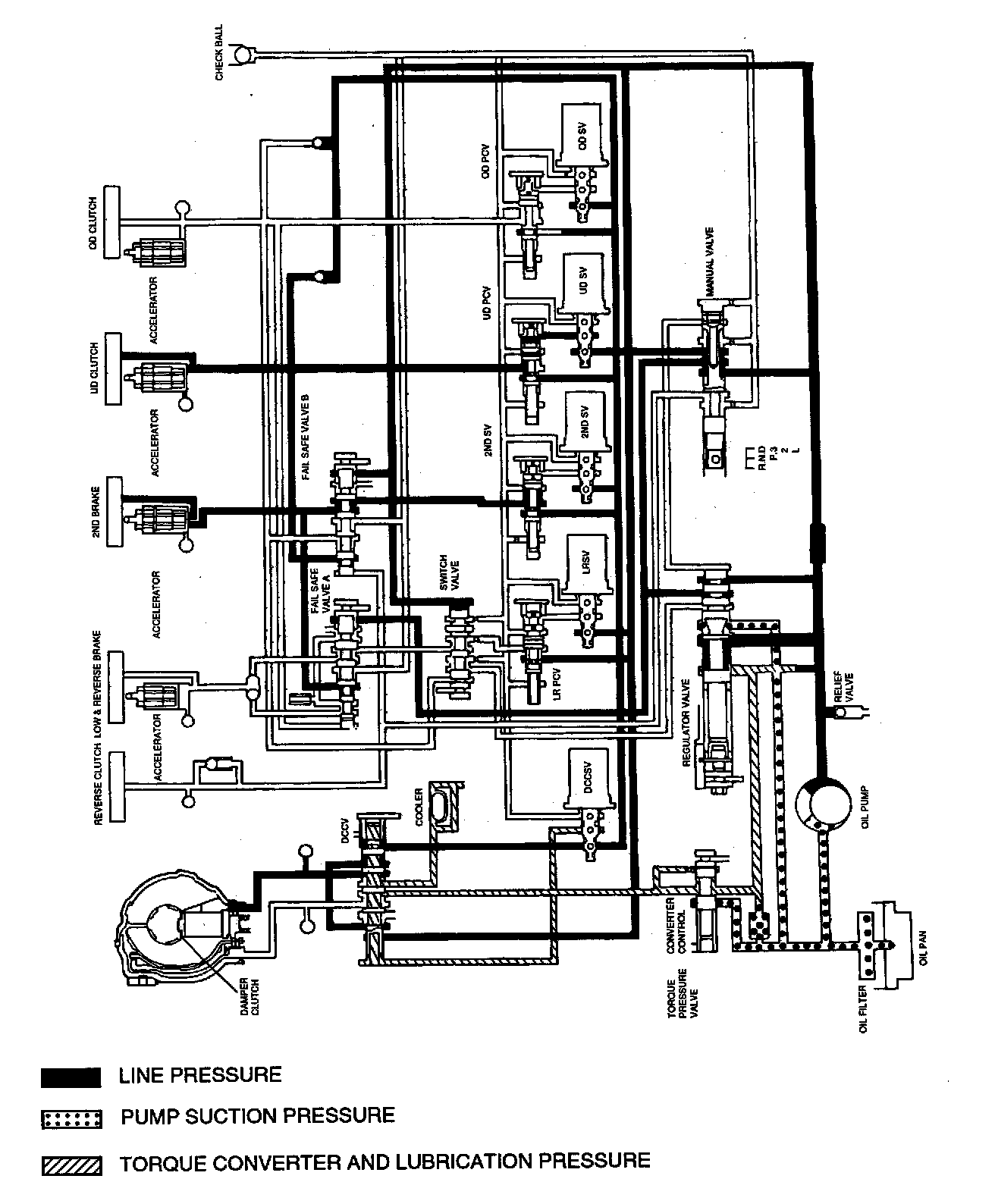

THIRD

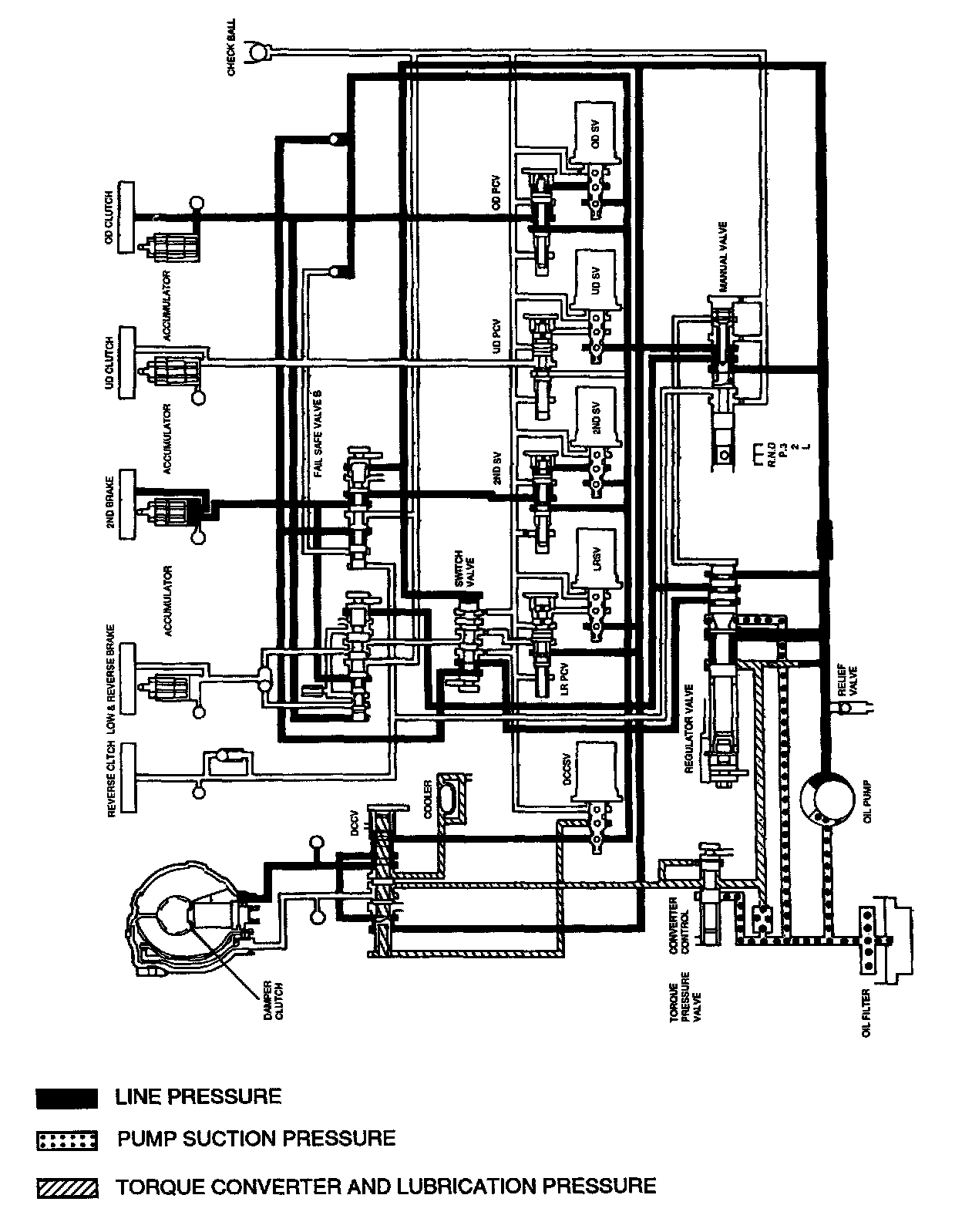

FOURTH

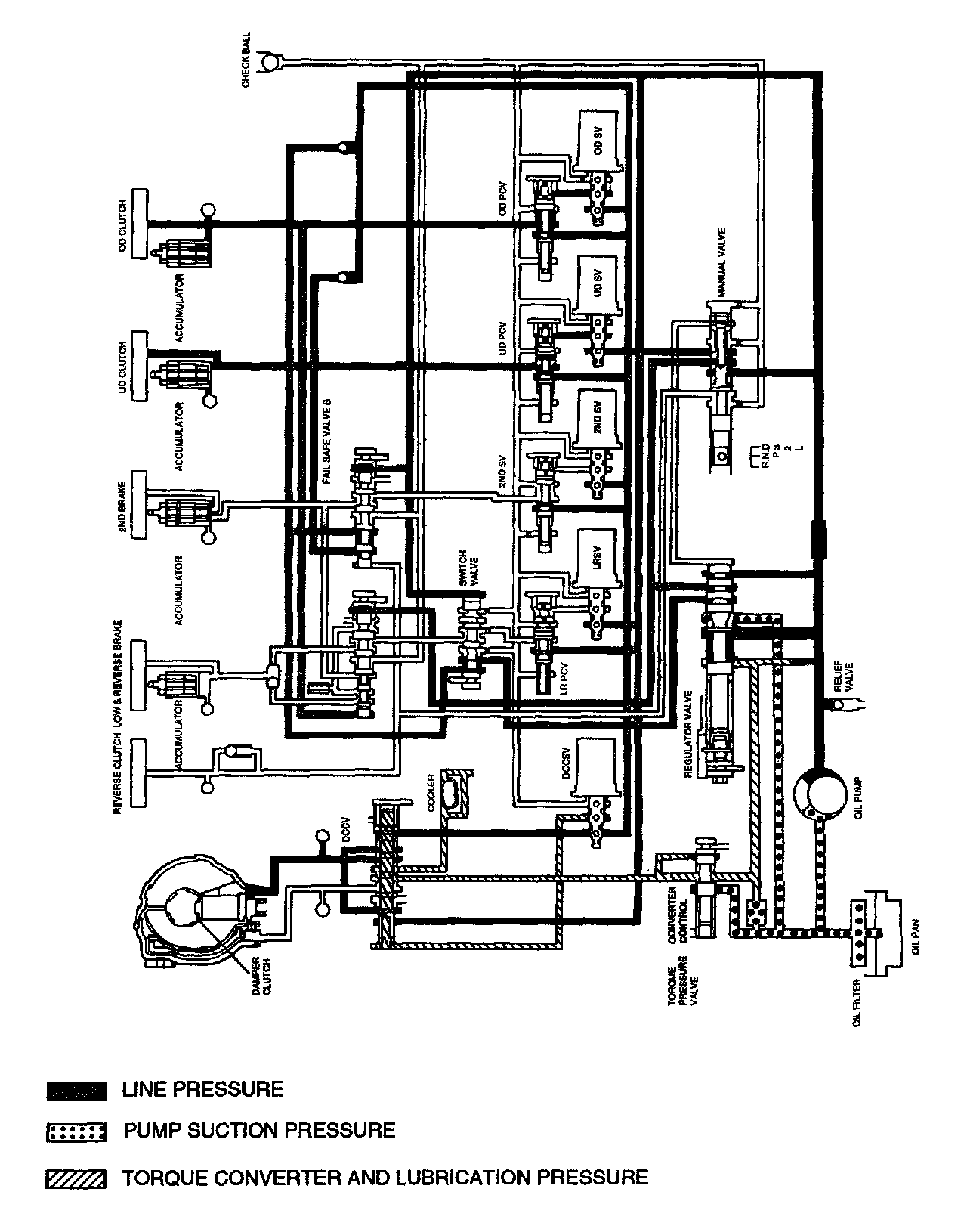

REVERSE
