Home >> Hyundai >> 2004 >> Elantra L4-2.0L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Disc Brake System >> Front

Front

Part 1:




Part 2:

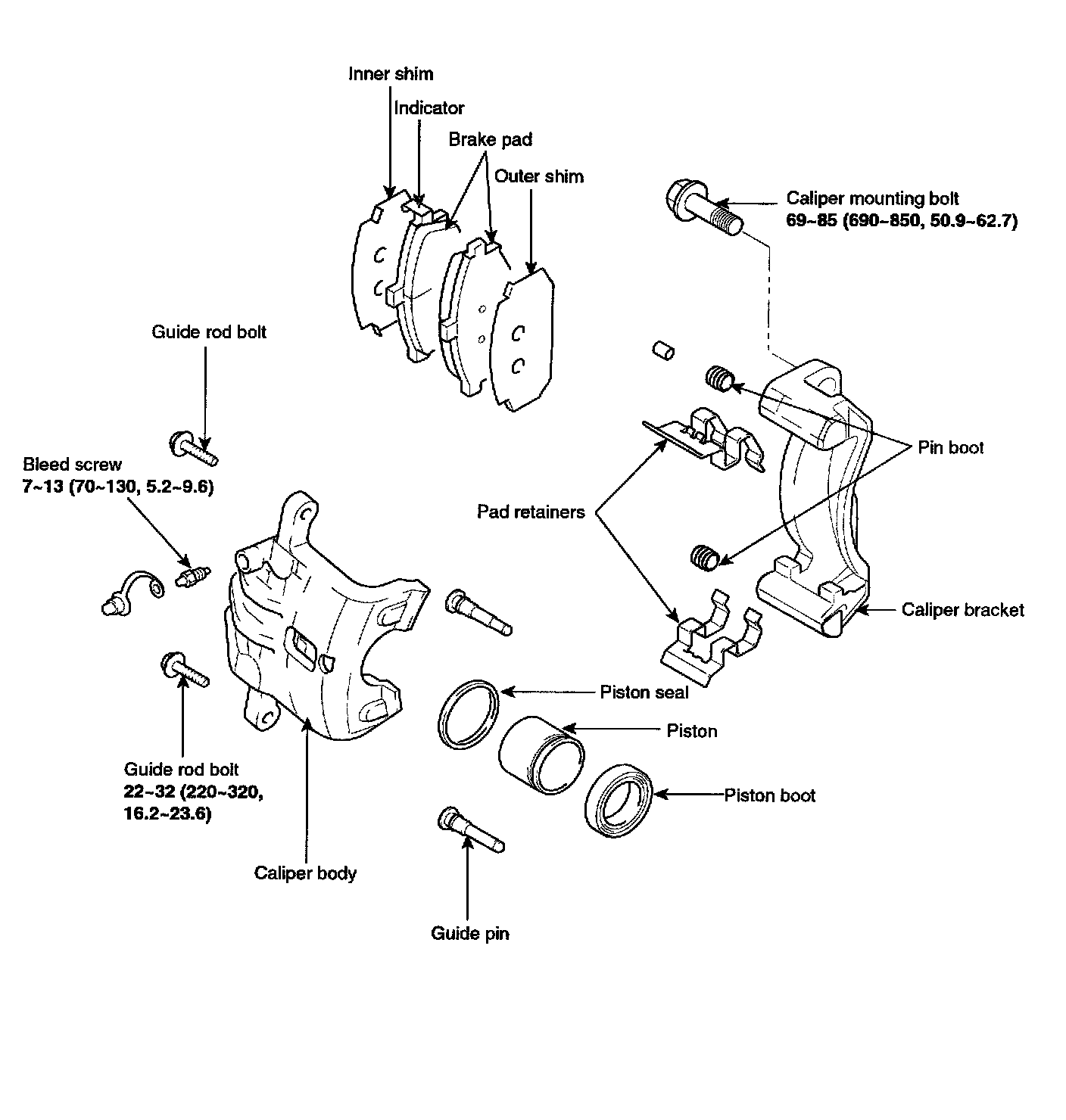

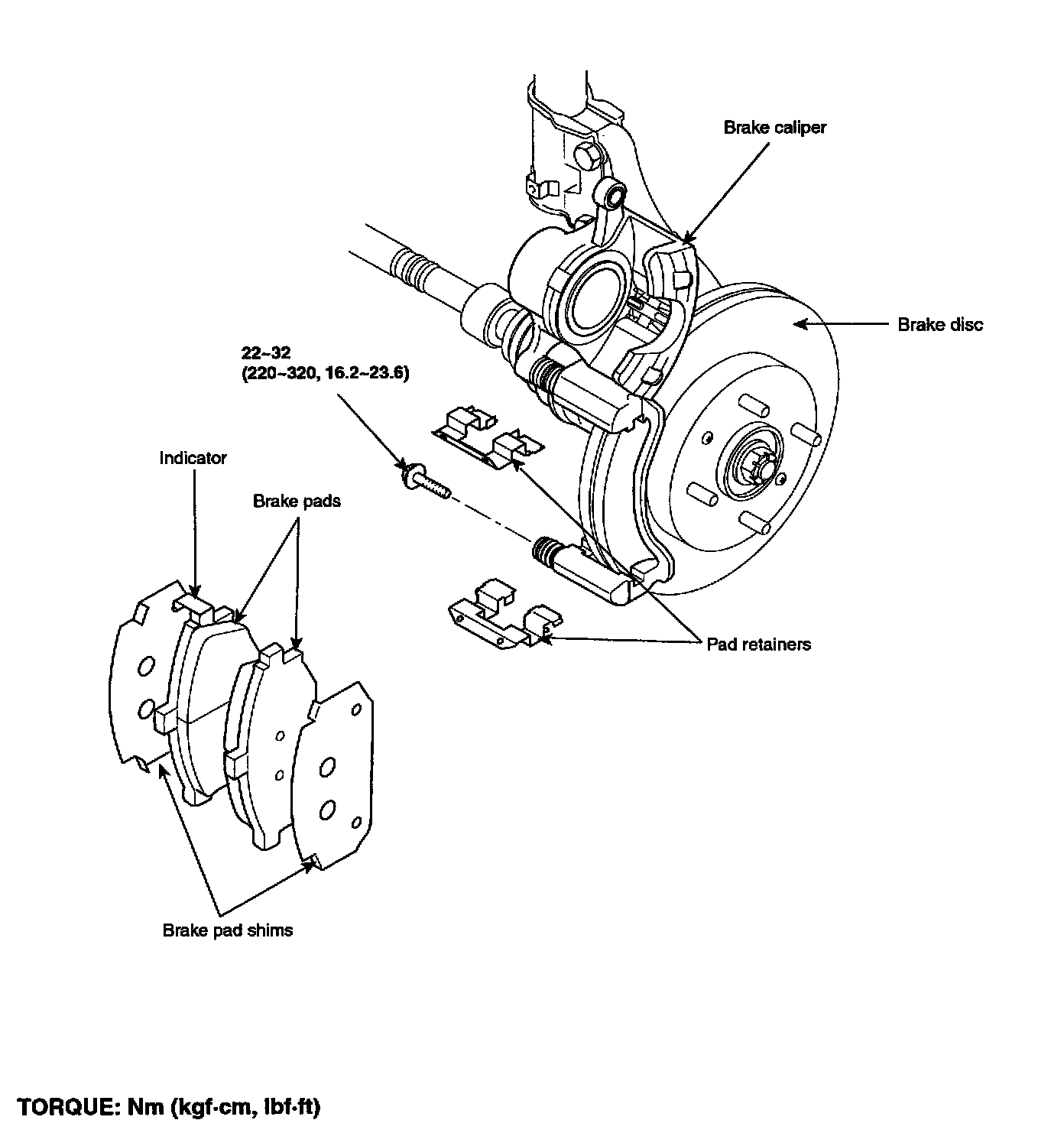

FRONT DISC BRAKE
