Home
>>
Hyundai
>>
2003
>>
XG 350 V6-3.5L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Vehicle Speed Sensor
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

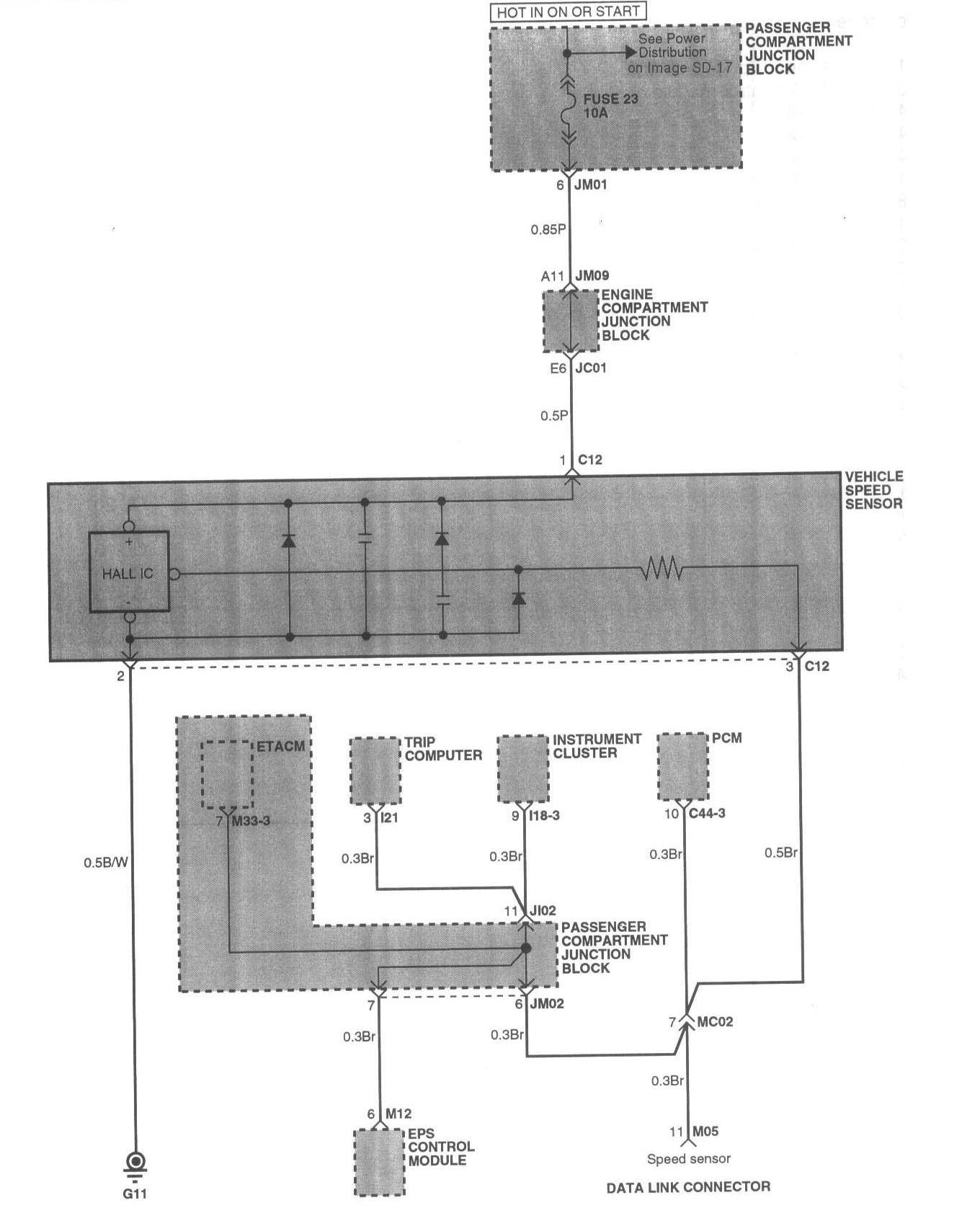

Image SD-60 Vehicle Speed Sensor (1):
