Home
>>
Hyundai
>>
2003
>>
XG 350 V6-3.5L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Data Link Connector
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

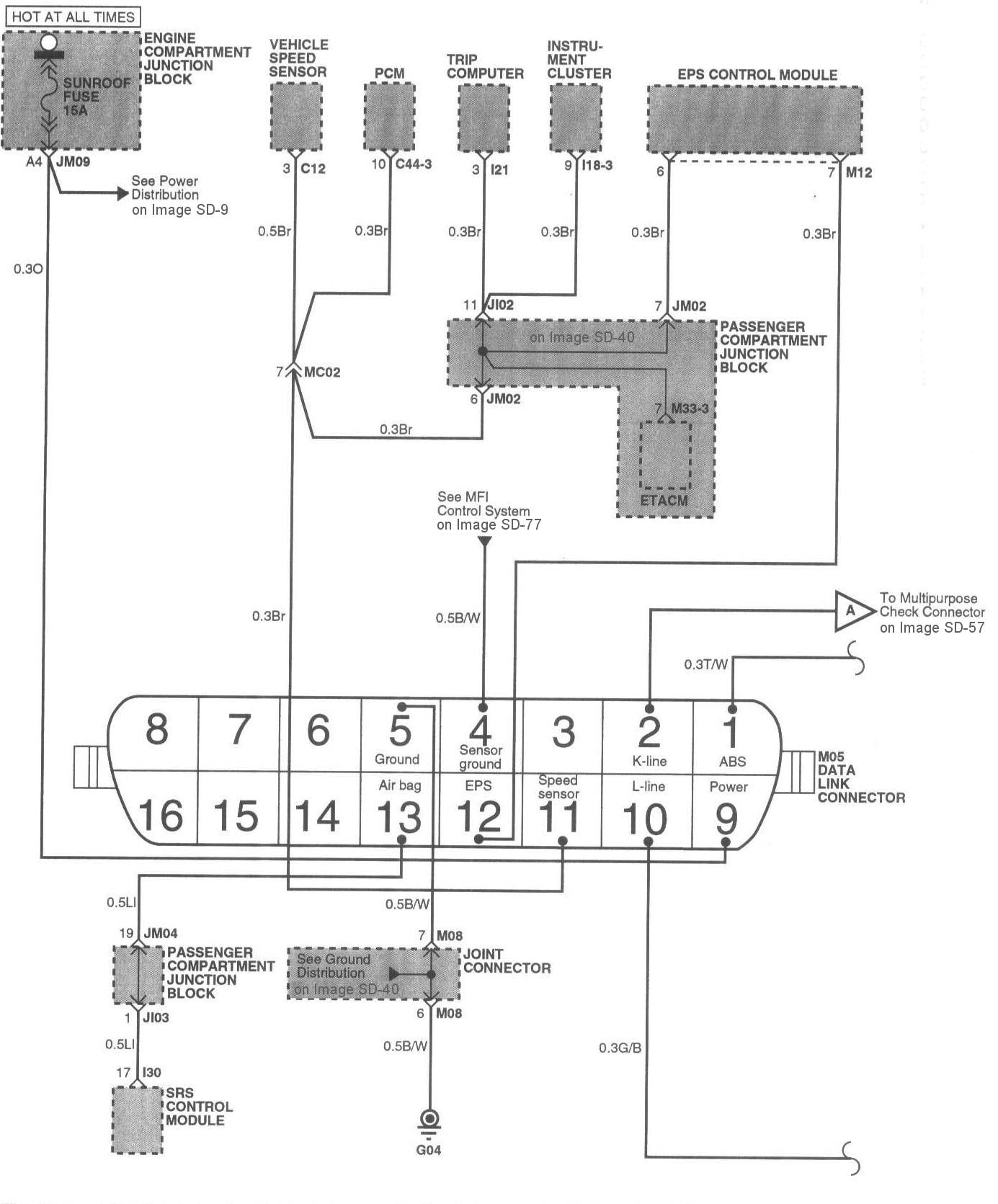

Image SD-56 Data Link Details (1):

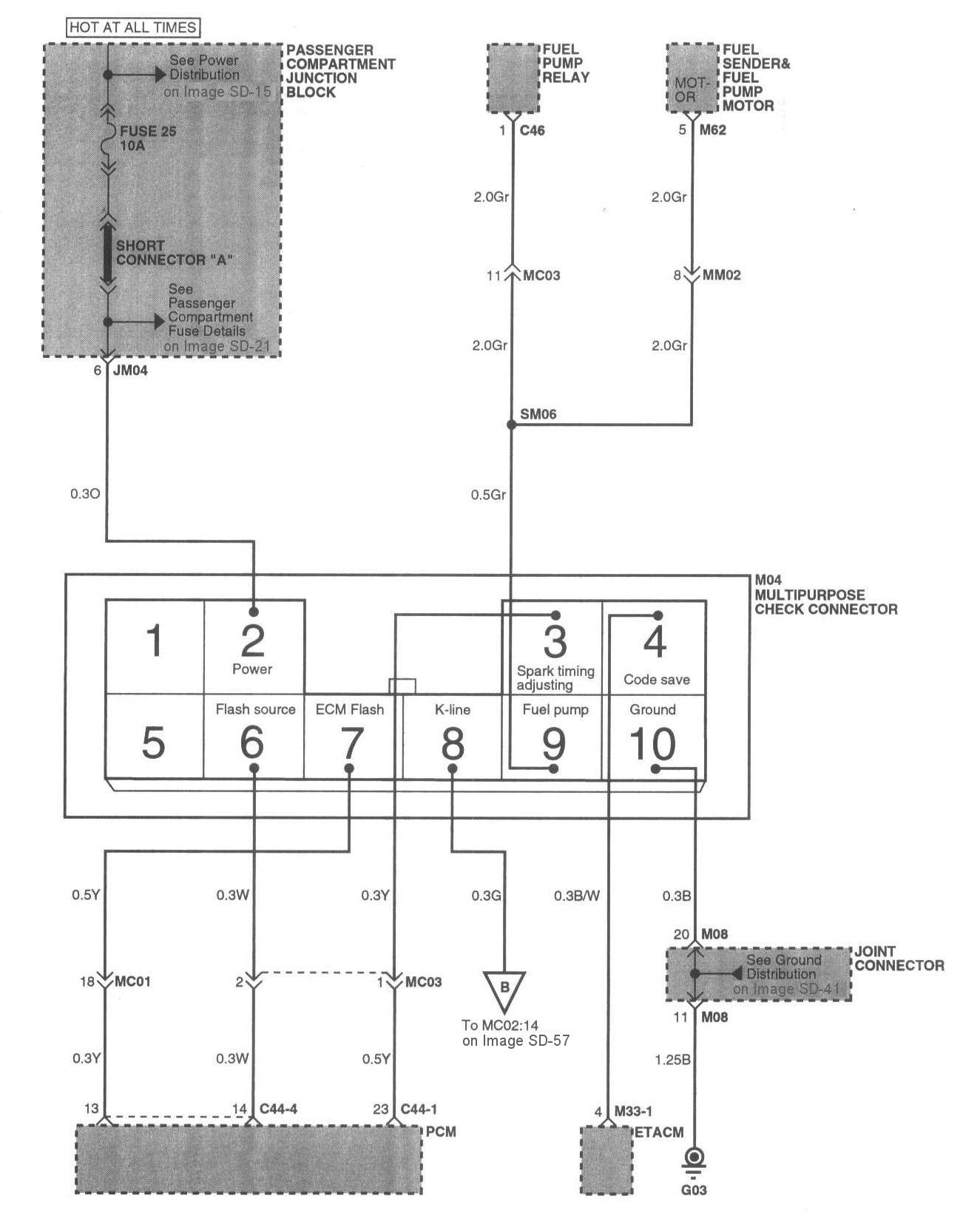

Image SD-57 Data Link Details (2):

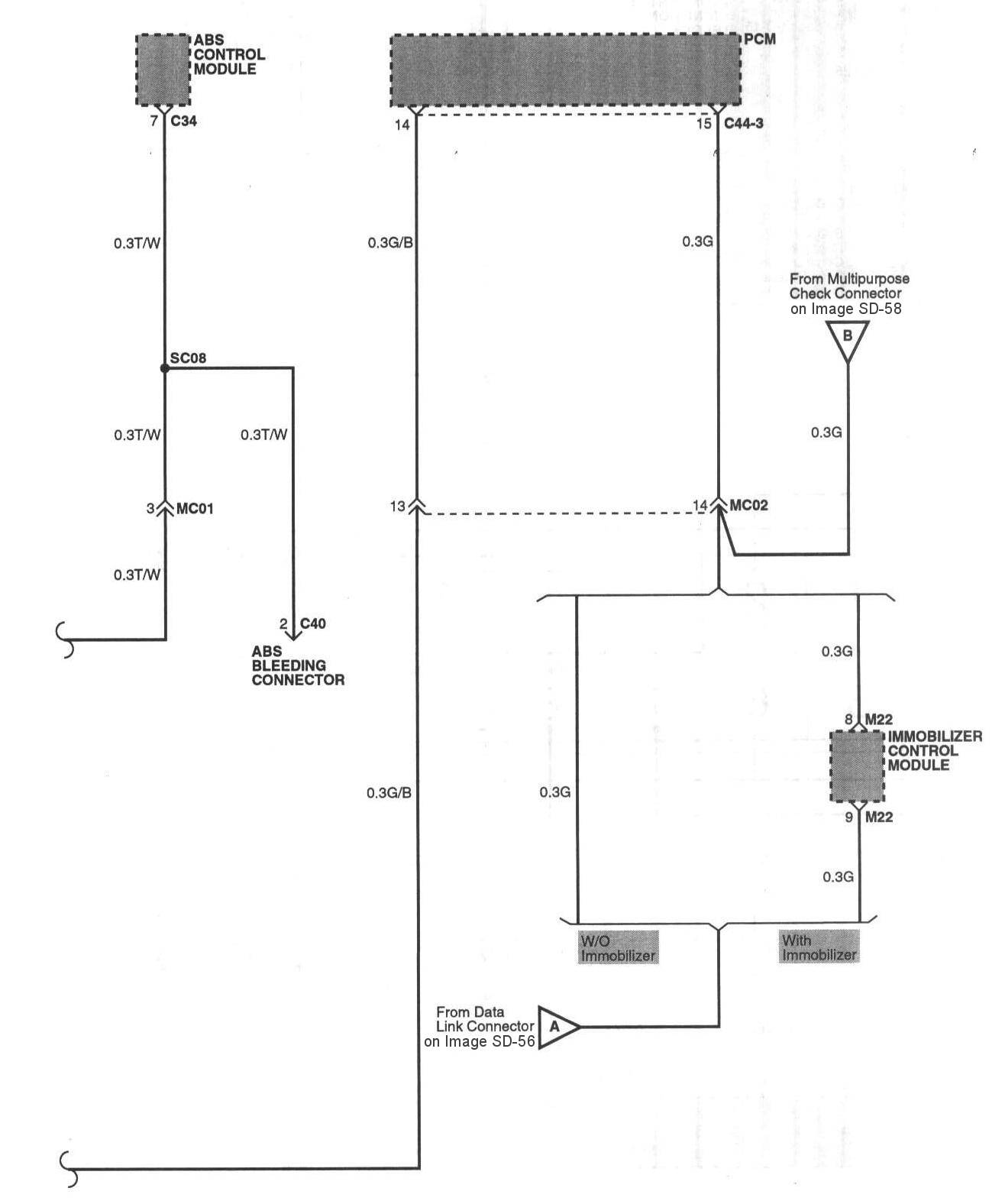

Image SD-58 Data Link Details (3):
