XG 350 V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Ignition System
>>
System Diagram
System Diagram

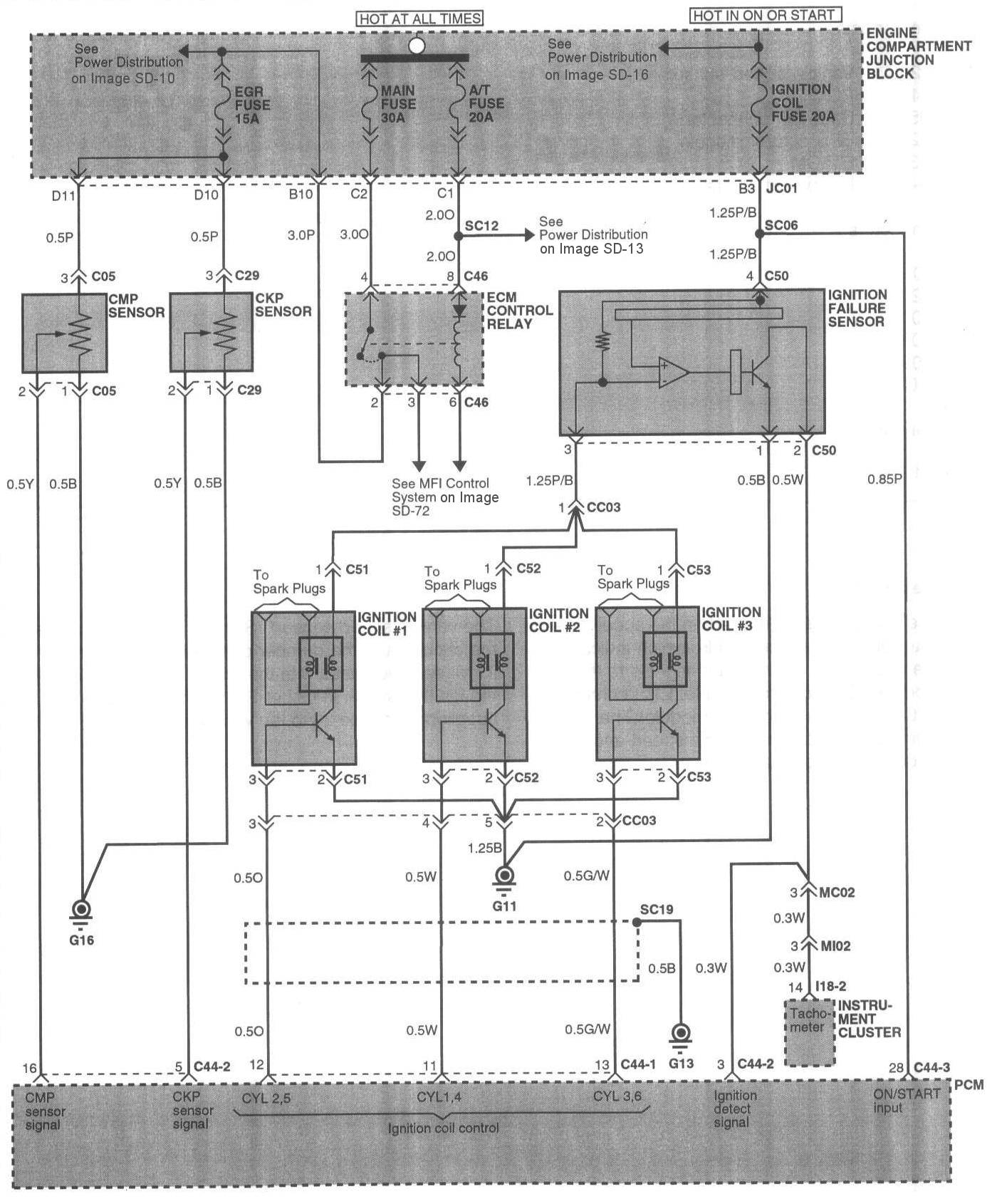

Image SD-62 Ignition System (1):
