Home >> Hyundai >> 2003 >> Tiburon L4-2.0L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Timing Belt

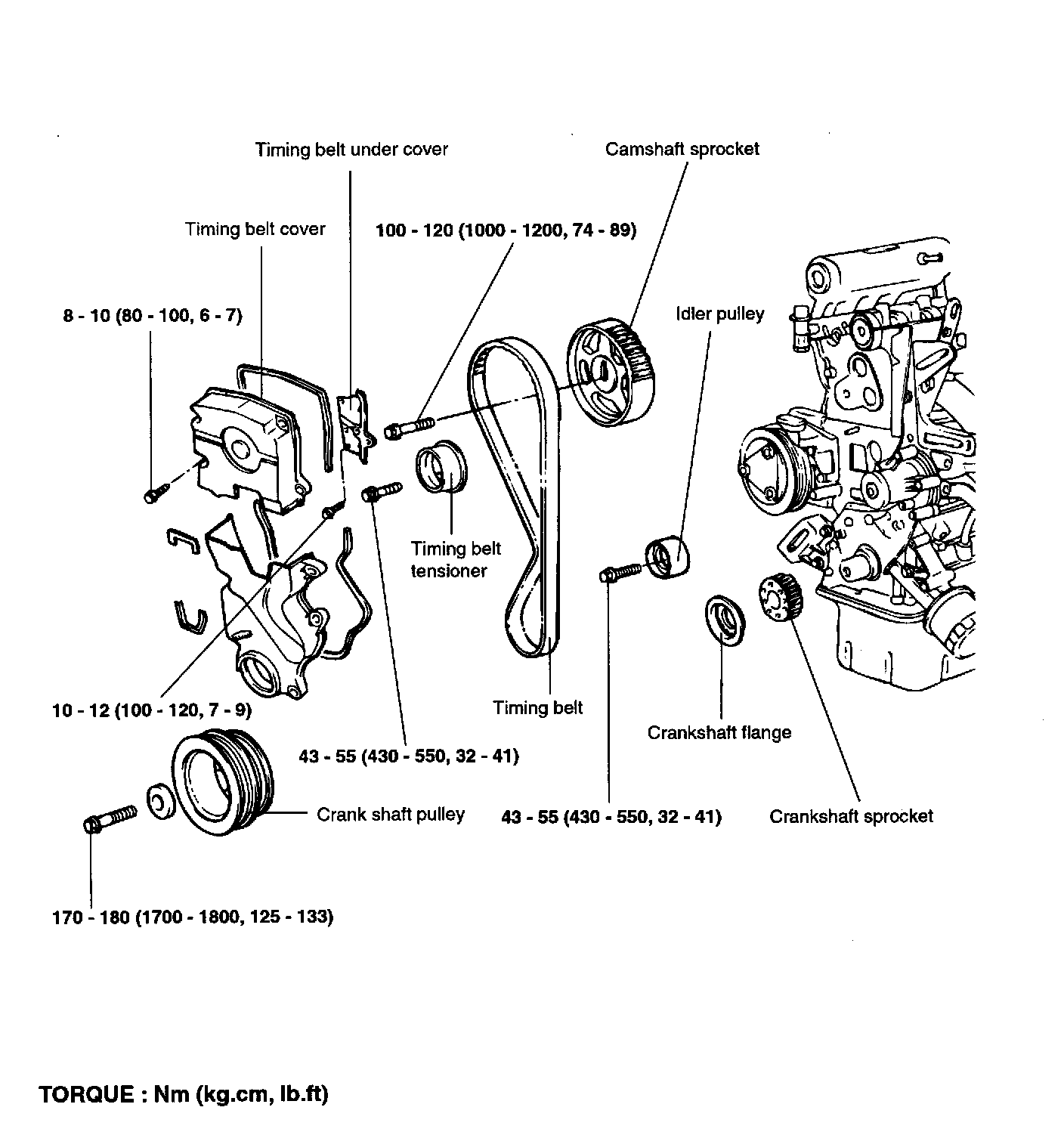

Timing Belt

TIMING BELT 2.0L:
