Hyundai
>>
2003
>>
Sonata L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Windows
>>
Power Window Switch
Power Window Switch

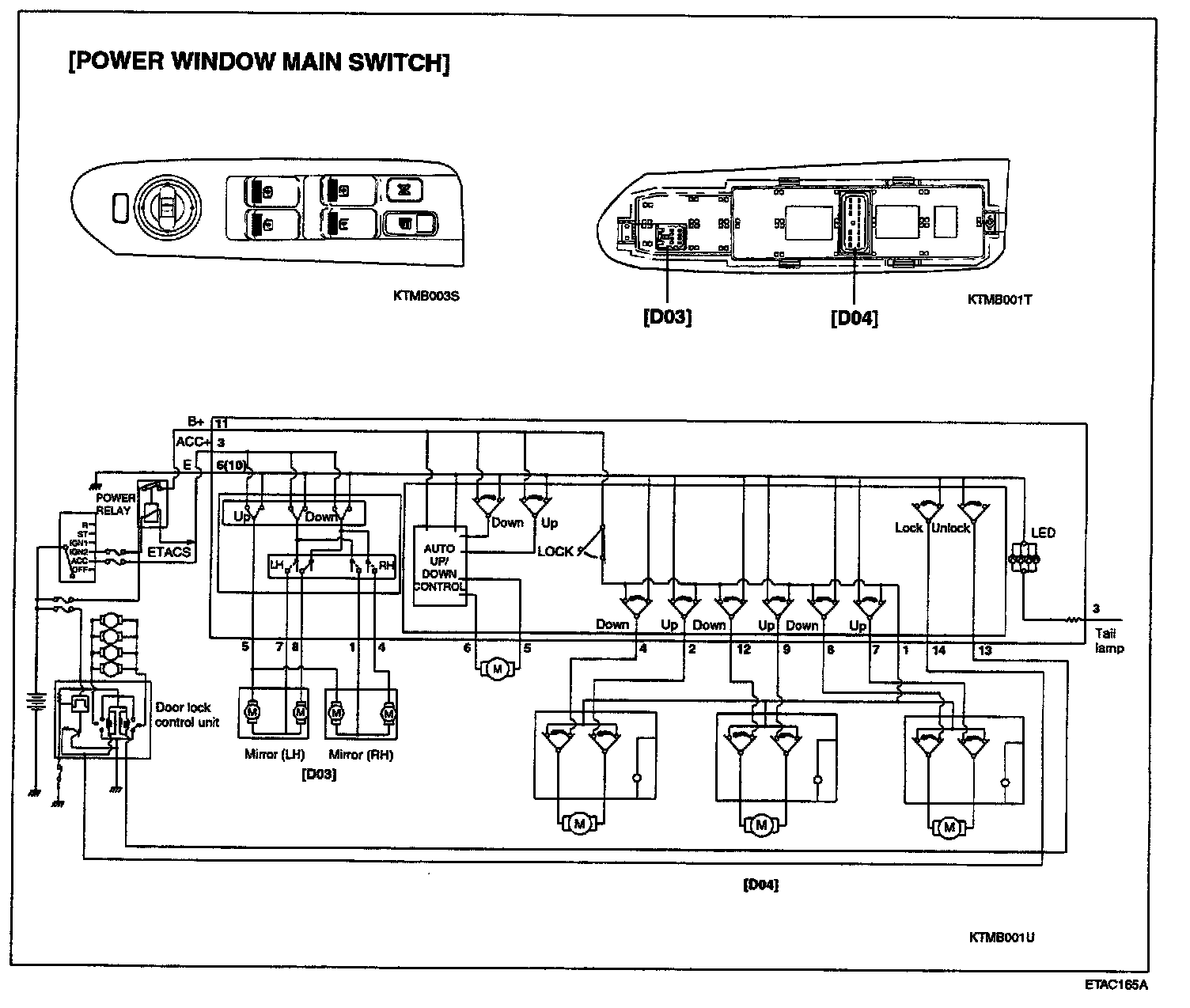

Circuit Diagram:

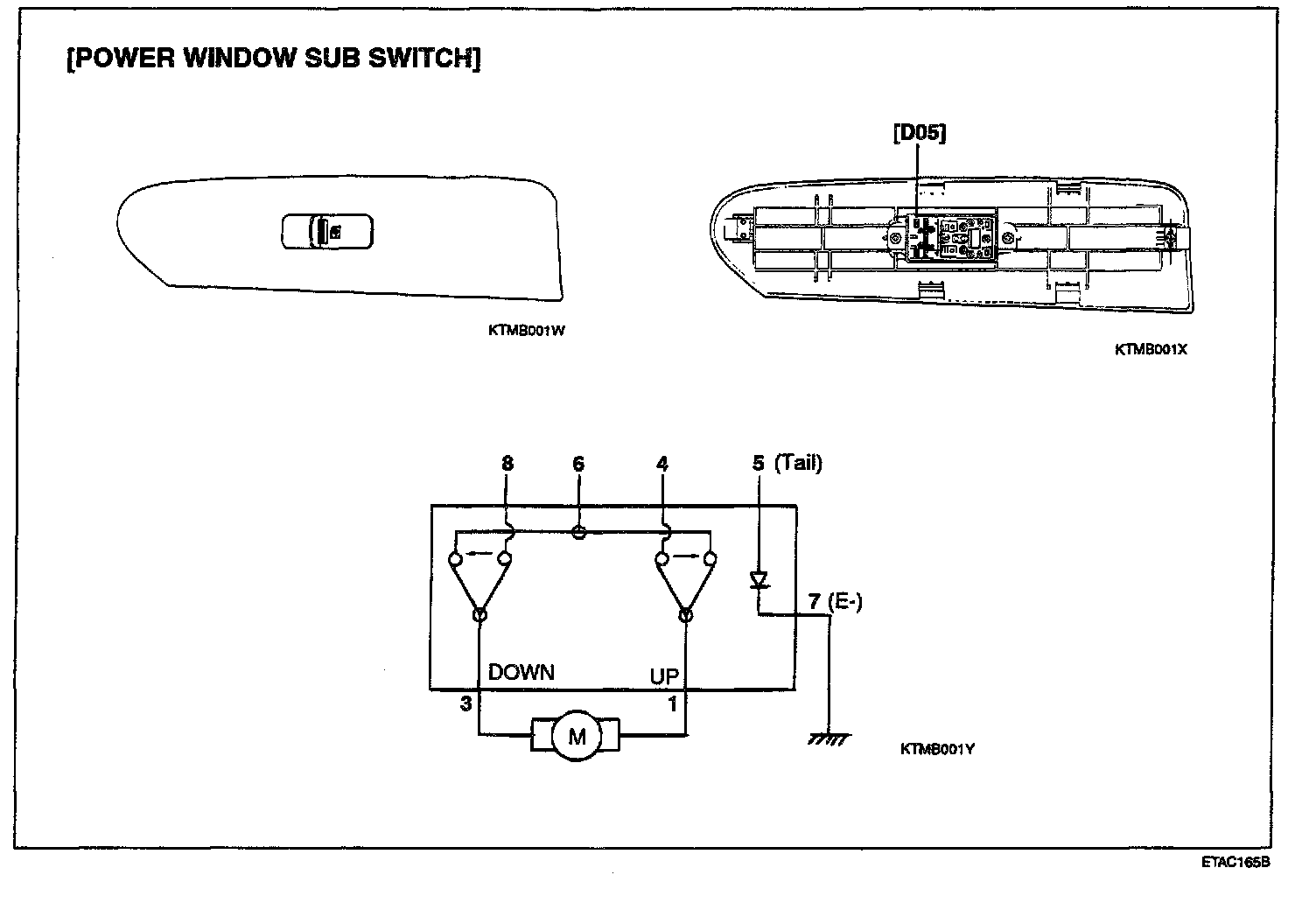

Power Window Sub Switch:
