Hyundai
>>
2003
>>
Accent L4-1.5L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

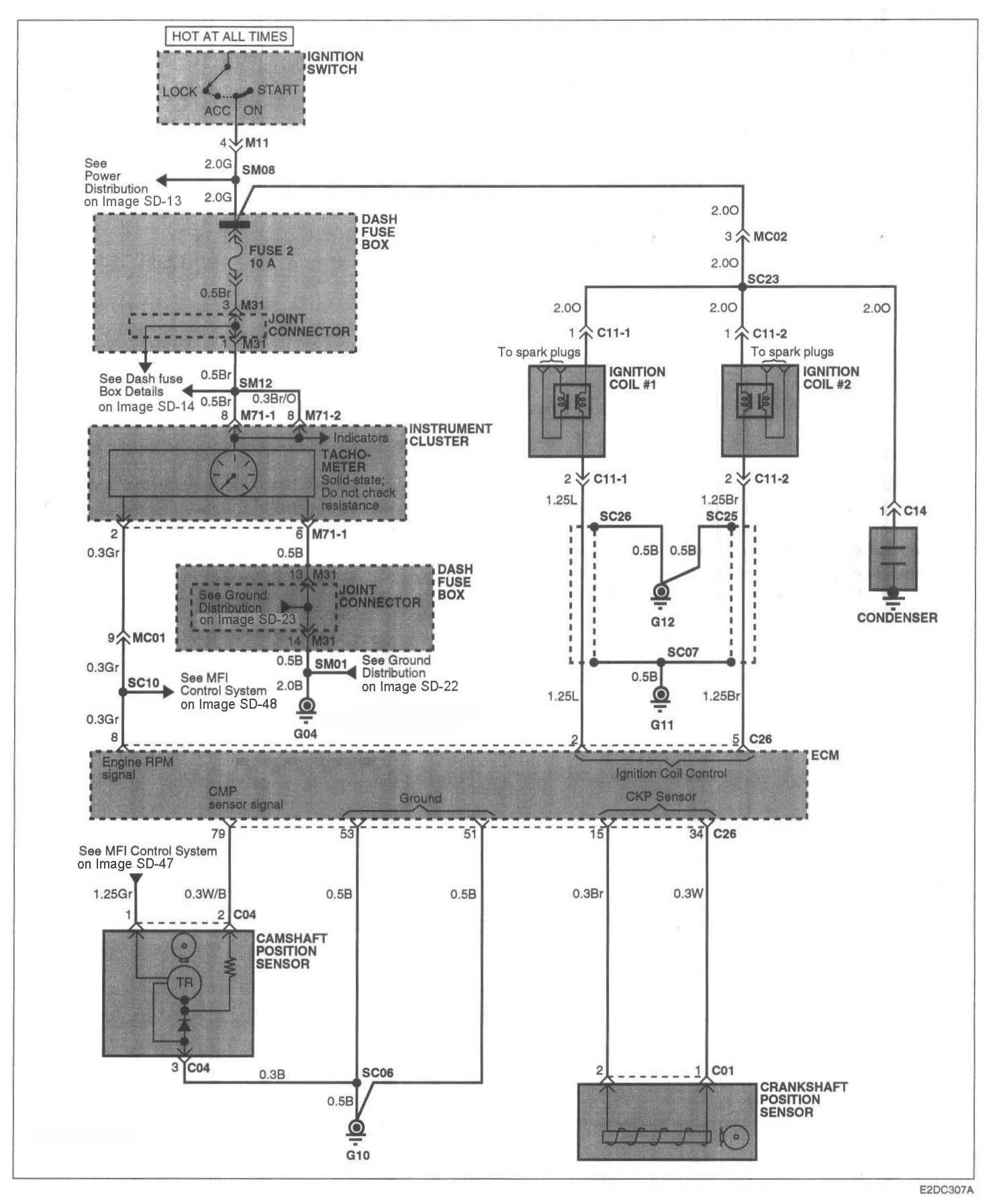

Image SD-36 Ignition System (1):
