Trip Computer
Trip Computer

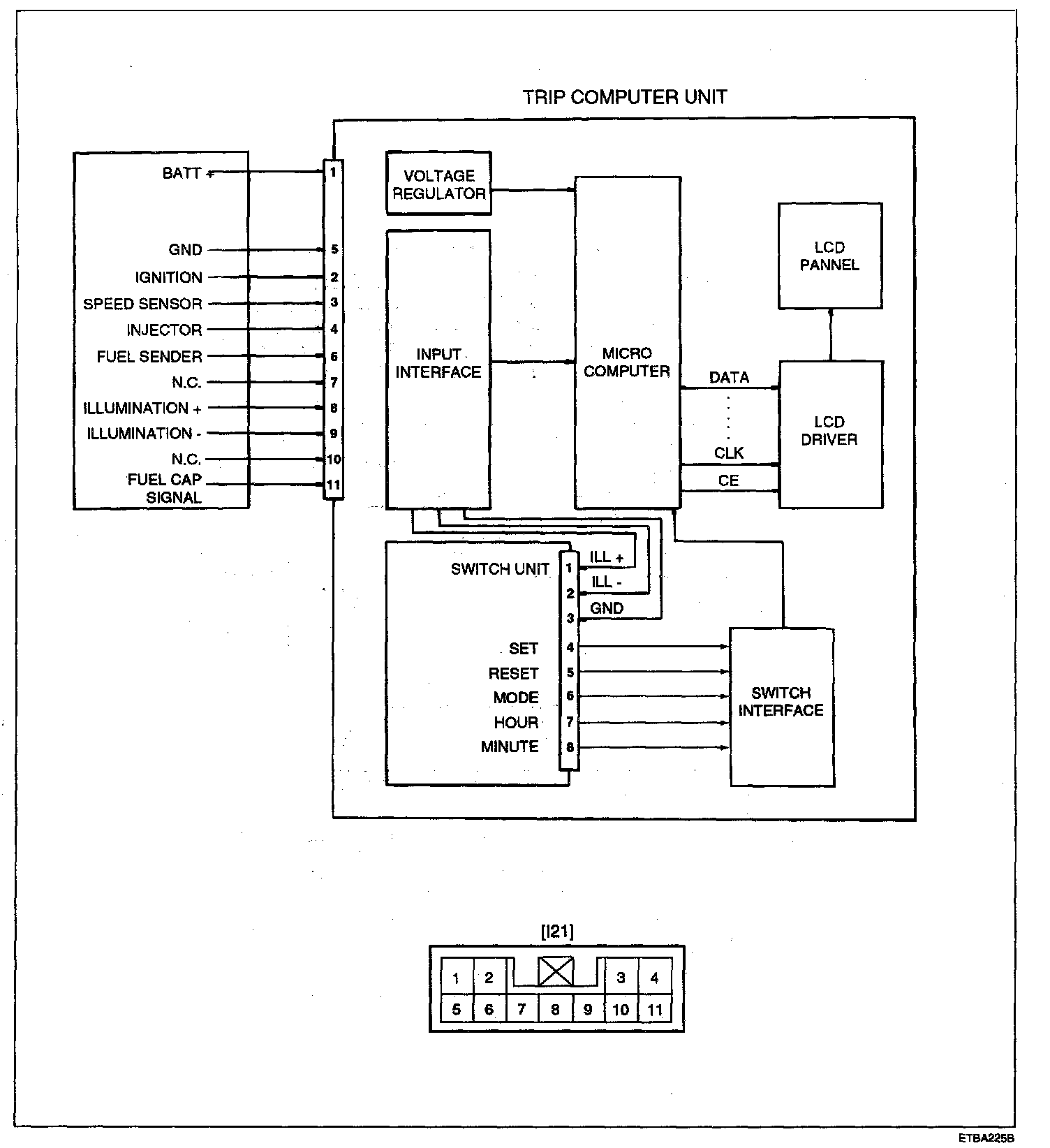

Circuit Block Diagram:

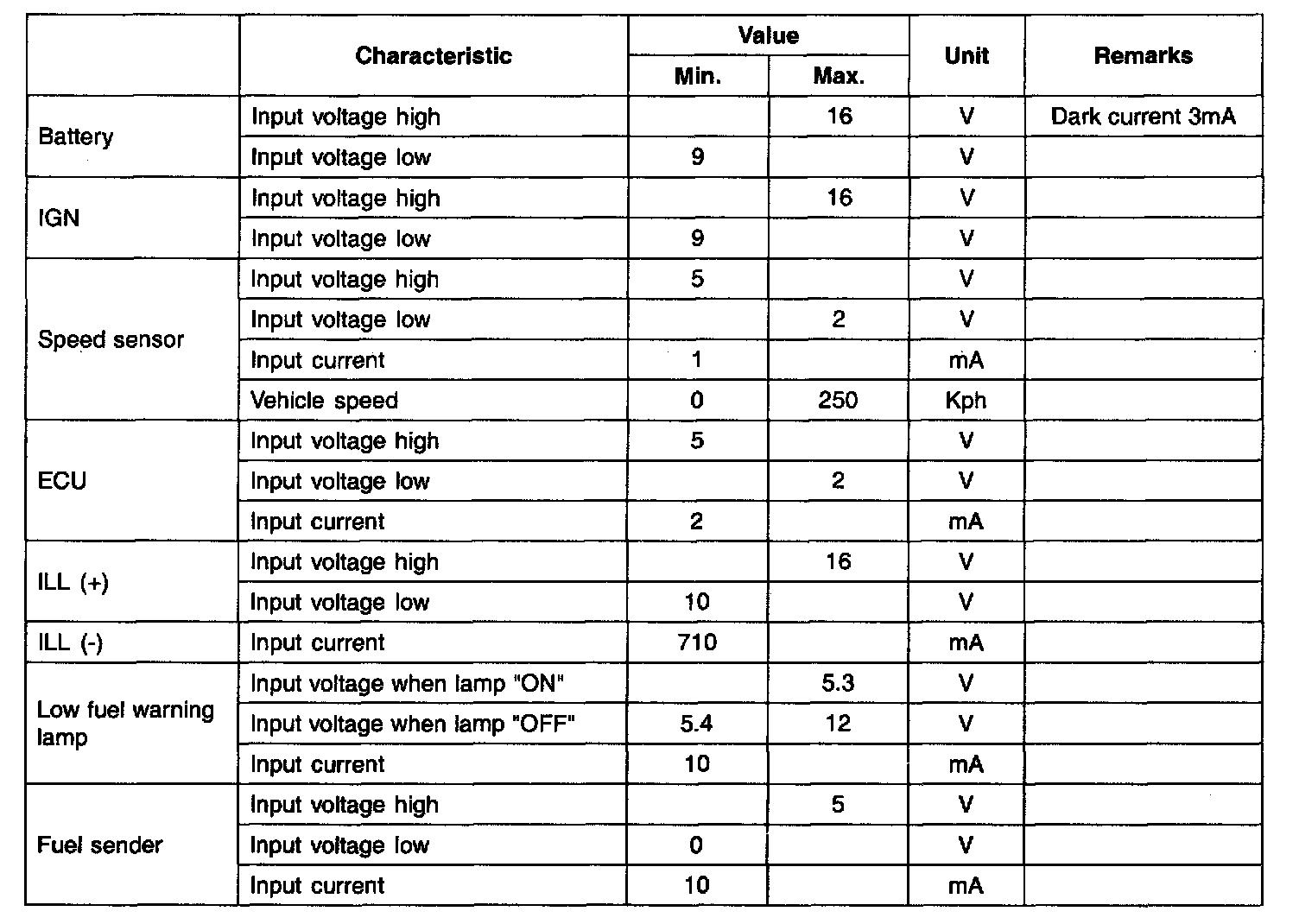

Input/Output Characteristics:

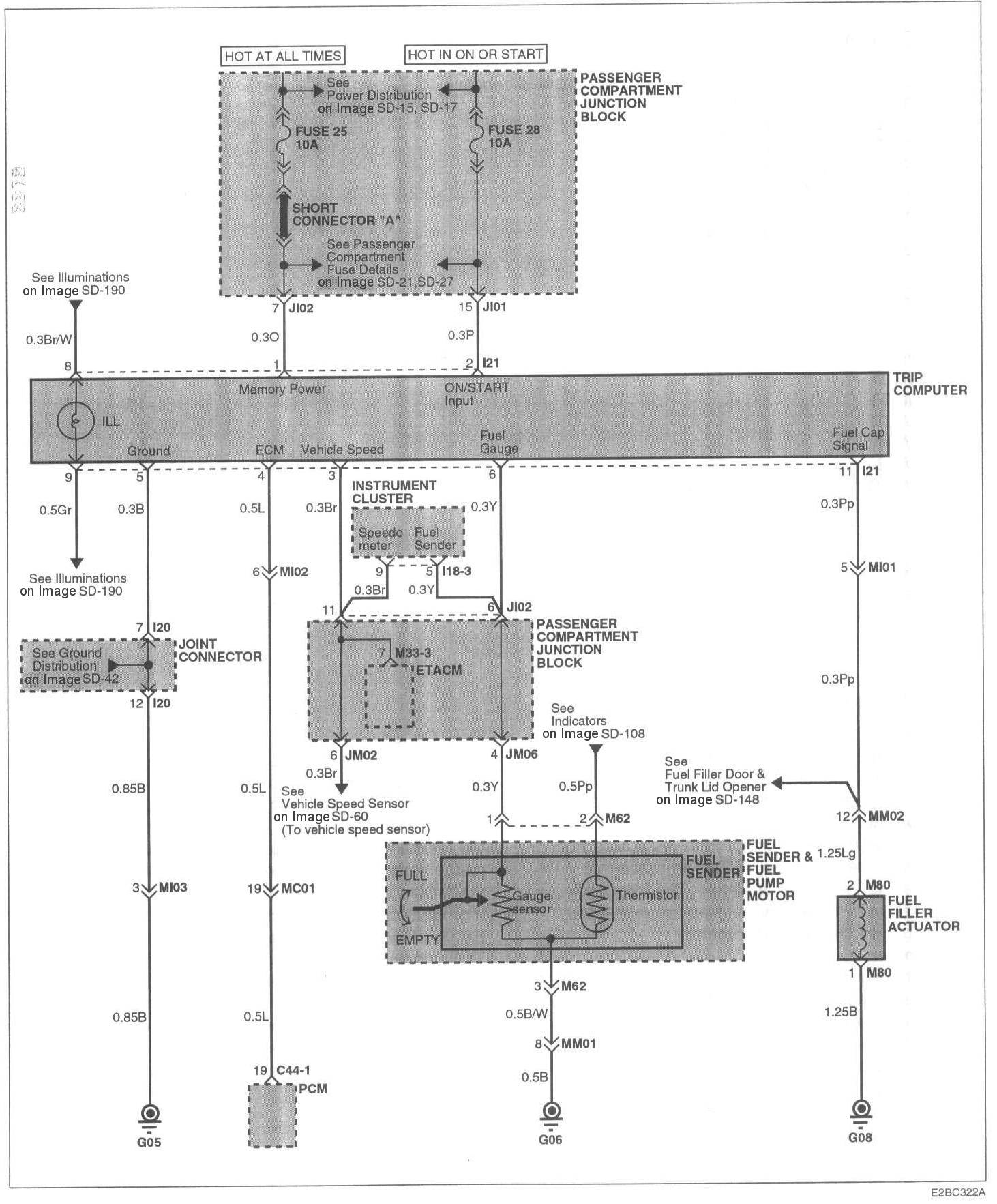

Image SD-116 Trip System (1):
