Elantra GT Hatchback L4-2.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Data Link Connector
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

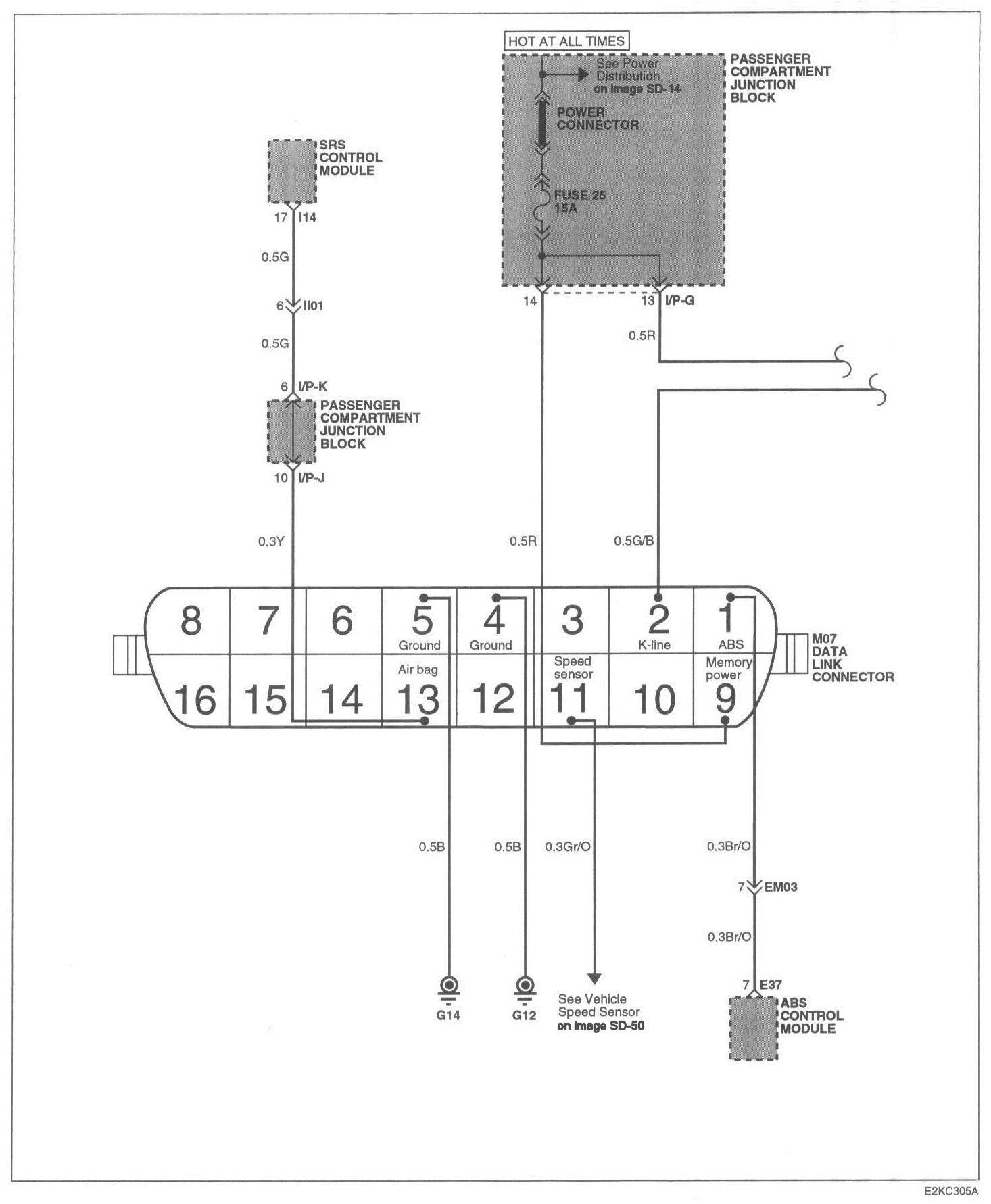

Image SD-46 Data Link Details (1):

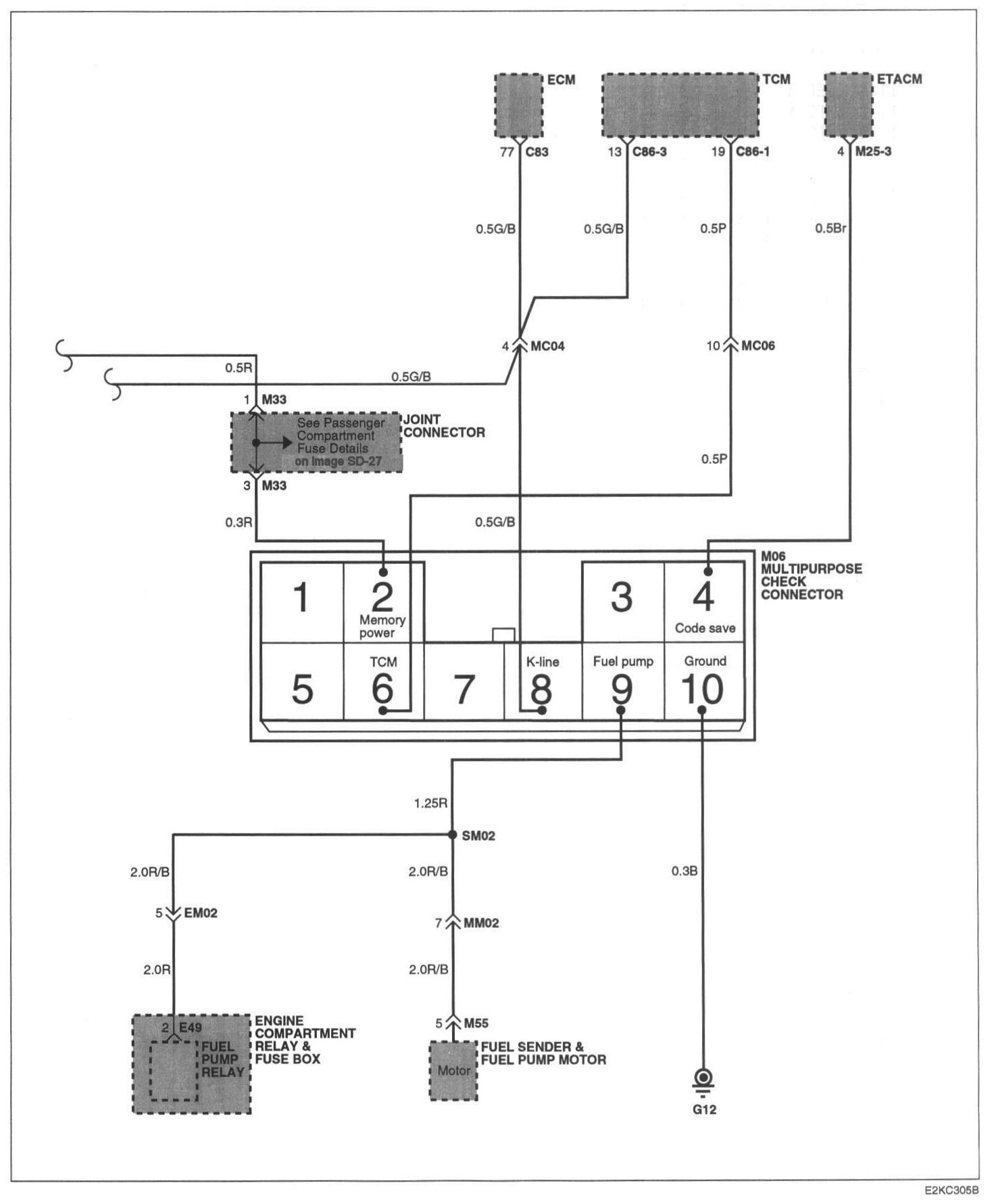

Image SD-47 Data Link Details (2):
