Home
>>
Hyundai
>>
2002
>>
Accent GL Hatchback L4-1.6L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Vehicle Speed Sensor
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

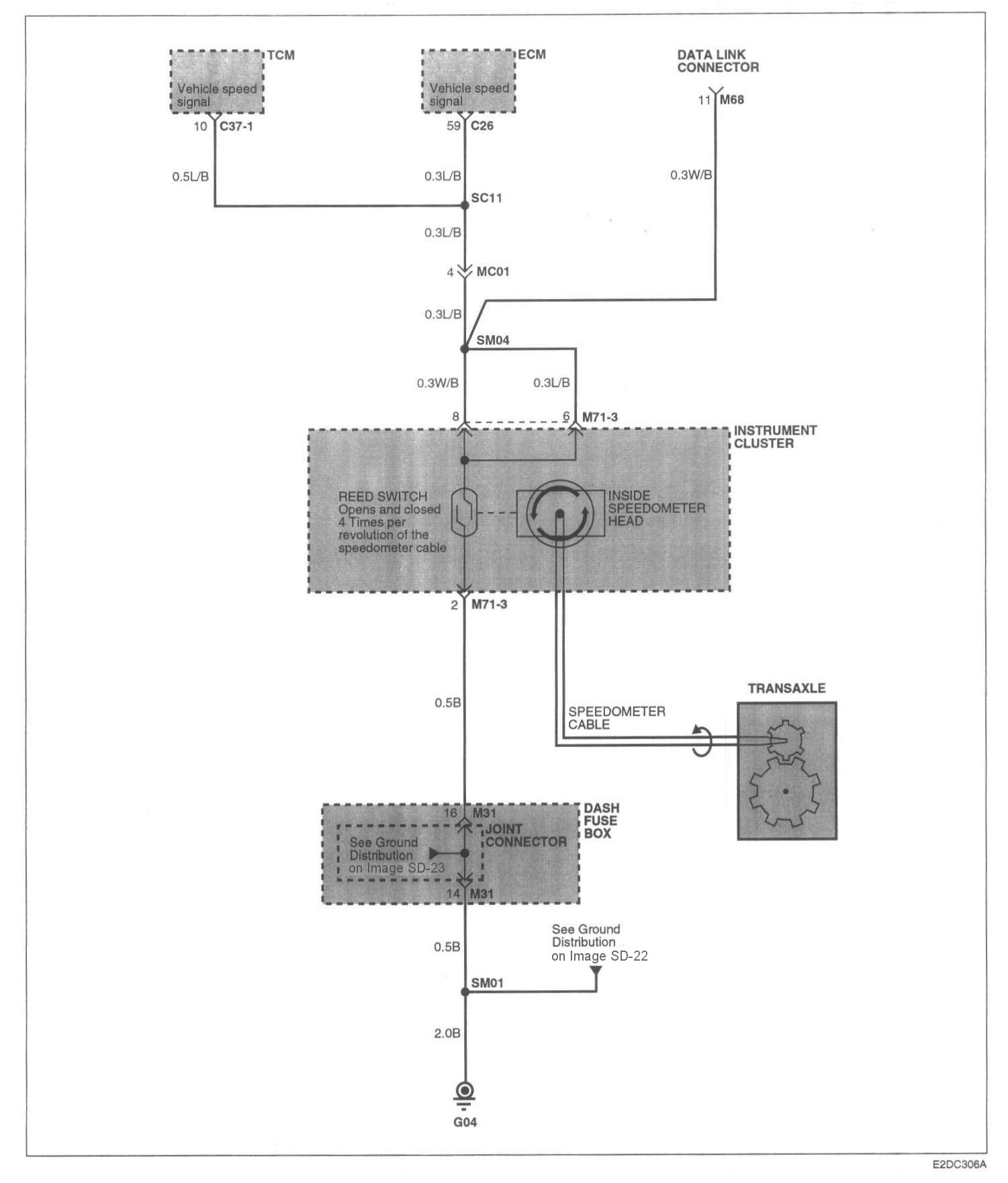

Image SD-34 Vehicle Speed System (1):
Circuit Diagram:
