Home
>>
Hyundai
>>
2001
>>
Tiburon L4-2.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

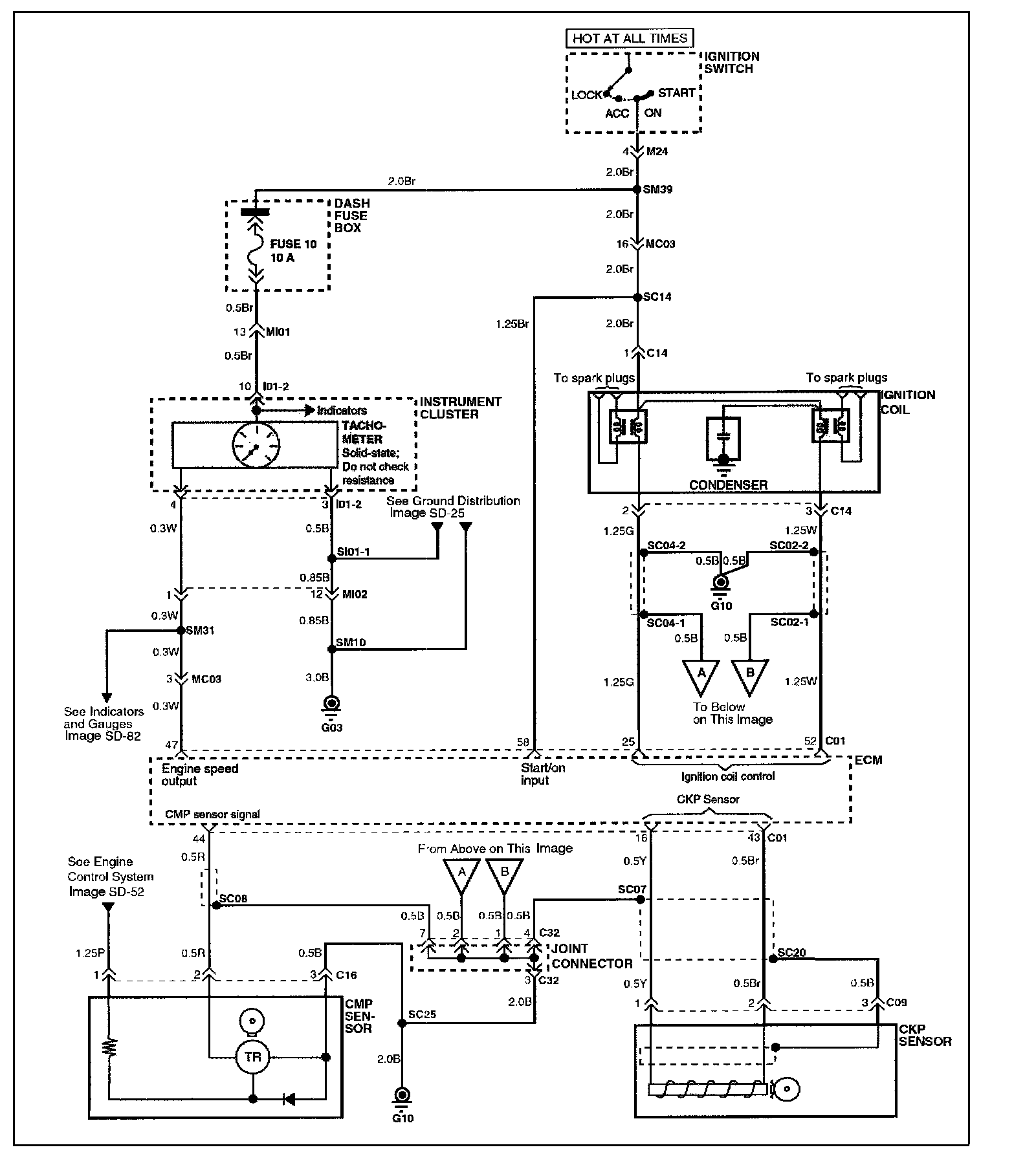

Image SD-40 -- Ignition System:
