Data Link Connector
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

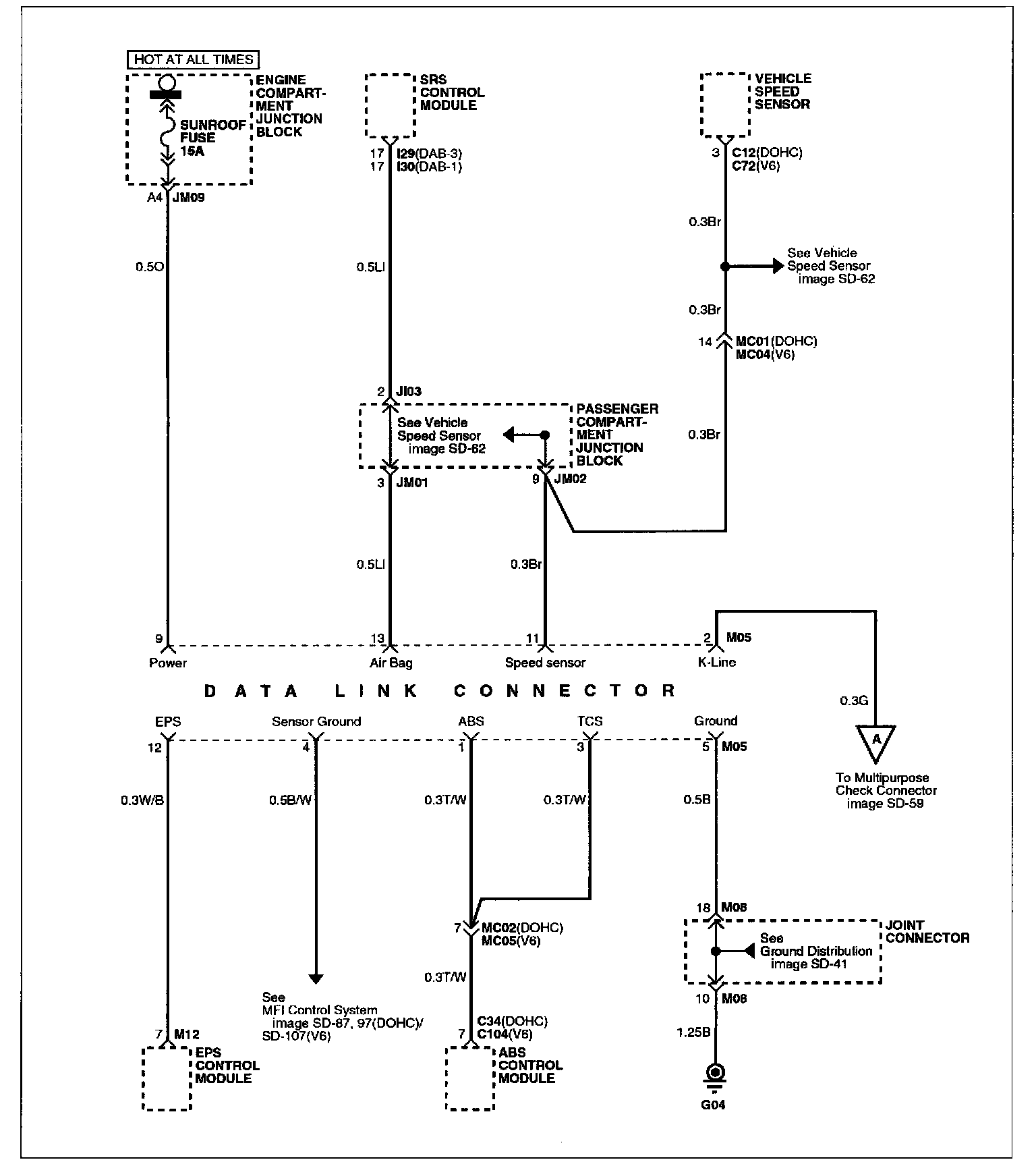

Image SD-58 - Data Link Details (1):

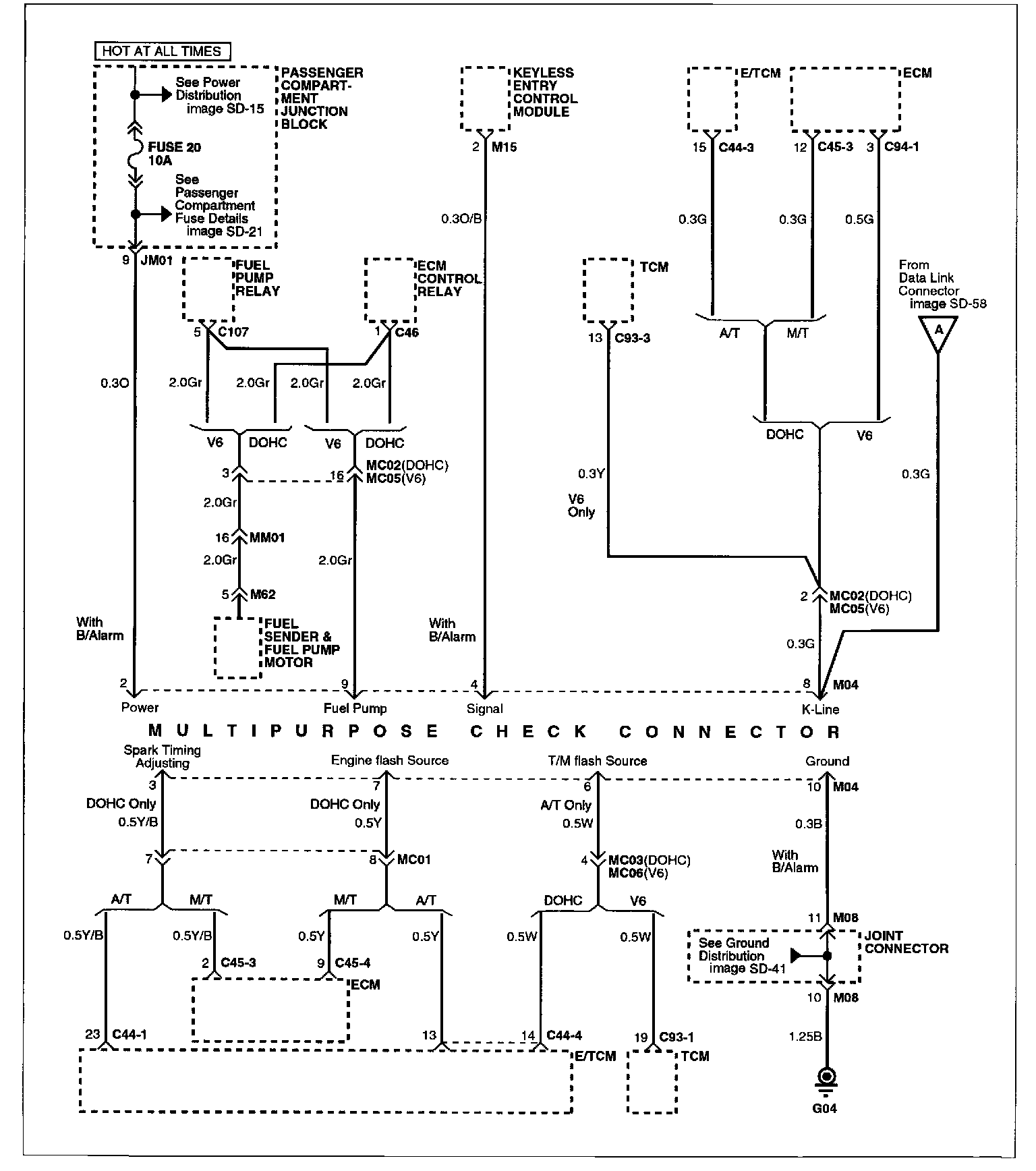

Image SD-59 - Data Link Details (2):
